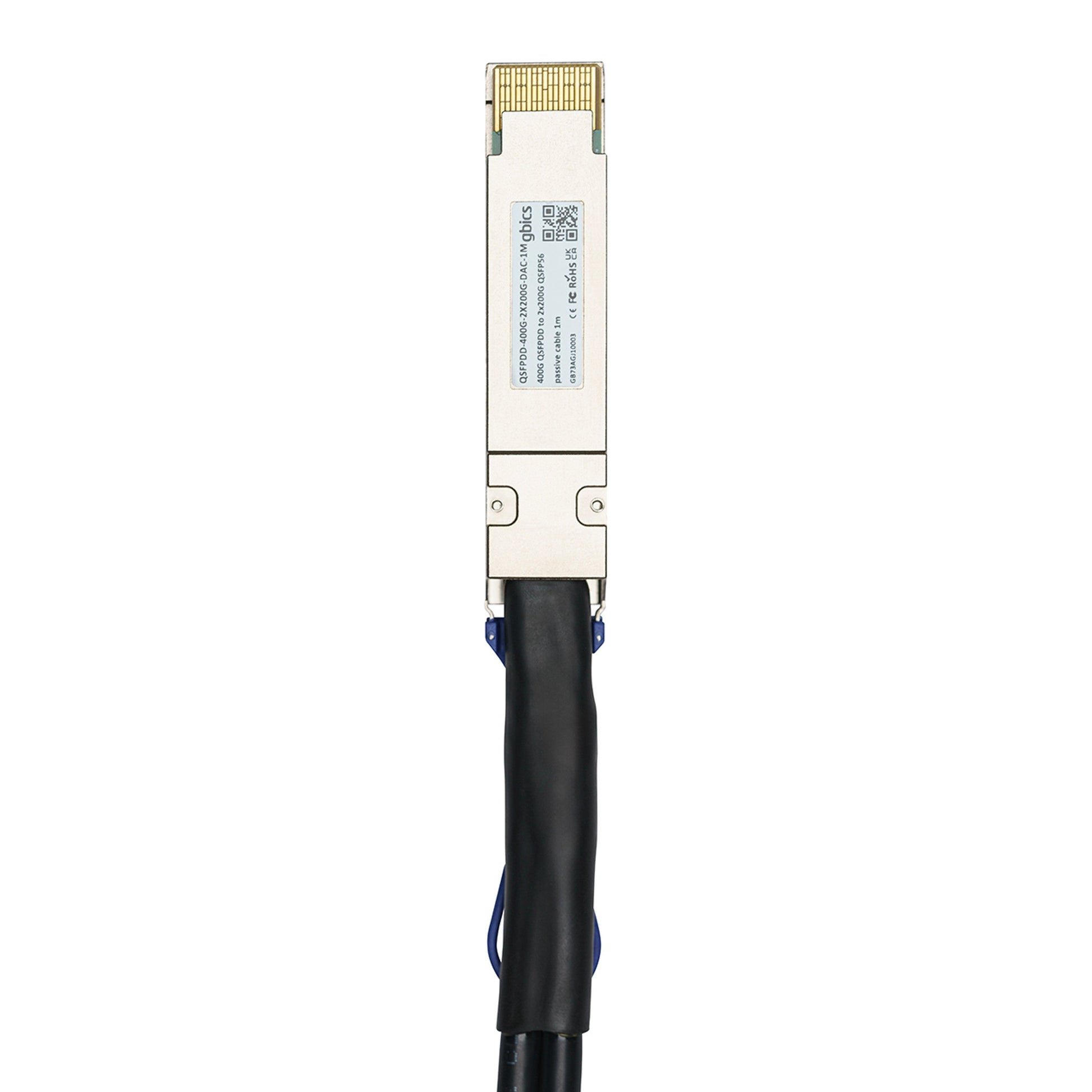

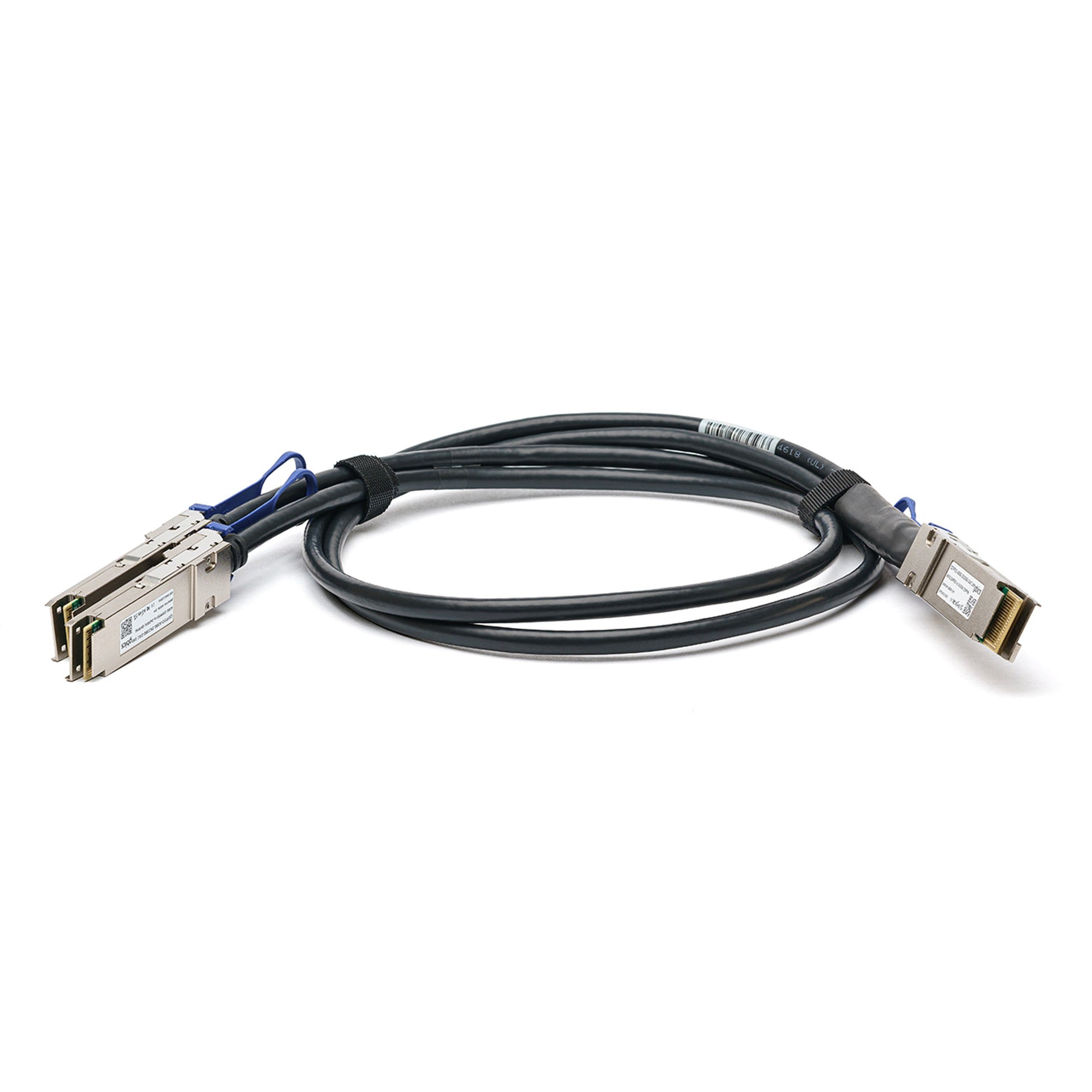

MCP7H60-W001R30 NVIDIA Compatible 1M 400G QSFP-DD to 2 x 200G QSFP56 Passive Direct Attach Breakout Cable

NVIDIA Compatible QSFP-DD to 2 x 200G QSFP56 Passive Direct Attach Breakout Cable

QuickSpecs

Technical Specifications

Quad Small Form-factor Pluggable 400G (QSFP-DD) to 2 x 200G (QSFP56) copper cable.
Passive Copper Cable assembly.
400 Gbit/sec split to 2 x 200 Gbit/sec line speed.
Operating distance of 1 metre.
Supply Voltage 3.3V.
Power consumption (per end): max 1.5W.

Product Support

GBICS is a NVIDIA partner and works closely with the vendor to ensure interoperability.

This product is 100% compatible with all NVIDIA products that list MCP7H60-W001R30 as a supported product.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
