GMC-1G-RJSFP-POE - 10/100/1000BASE-T RJ45 to 1000BASE-SX/LX SFP PoE+ Media Converter

GMC-1G-RJSFP-POE - 10/100/1000BASE-T RJ45 to 1000BASE-SX/LX SFP Media Converter

GBICS feature rich Gigabit rate converting PoE Media Converters transparently connect copper to fibre while providing Power over Ethernet (PoE) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points. GMC-1G-RJSFP-POE PoE Media Converters are also available with support for Extended Temperature ranges.

GBICS PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, GBICS PoE media converters can also provide power to one or two Powered Devices (PDs). GBICS has PoE media converter models that support the IEEE 802.3af PoE standard (15.4W of power) or the IEEE 802.3at PoE+ standard (30W of power).

Product Specifications

Ports: 1 x 10/100/1000Mbps RJ45 Copper PoE+, 1 x Gigabit SFP Port (Can be configured to 100Mbps)
Standards: IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d, IEEE802.3at / IEEE802.3af PoE PSE compatible
Wavelengths: 850nm/1310nm
Supported Distances:
SFP MM: 550m,
SFP SM: 10/20/40Km
CAT5/6: 100m
Conversion Method: Media Conversion
Time Delay: <10μs
BER: <1/1000000000

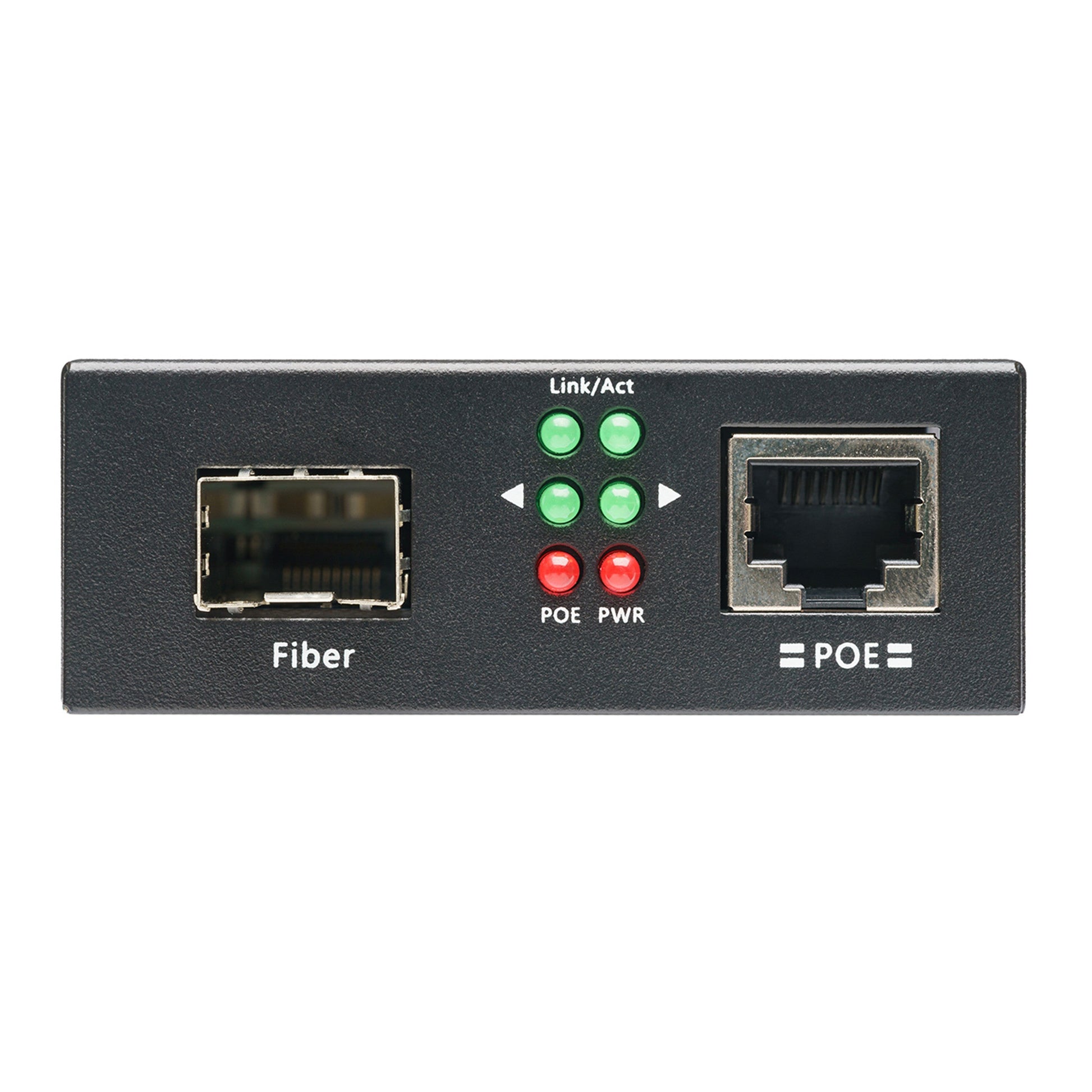

LED Indicator Lamps: 1000M, 100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER
Power Supply: DC5V 1A (external power), AC220 0.5A /DC-48( internal power )
Power Dissipation: 3W
Operating Temperature: 0 ~ 50 ℃
Humidity: 5%~90%
Storage Temperature: -40~ 70 ℃
Dimension: External: 94mmx70mmx26mm; Internal: 140mmx110mmx30mm
