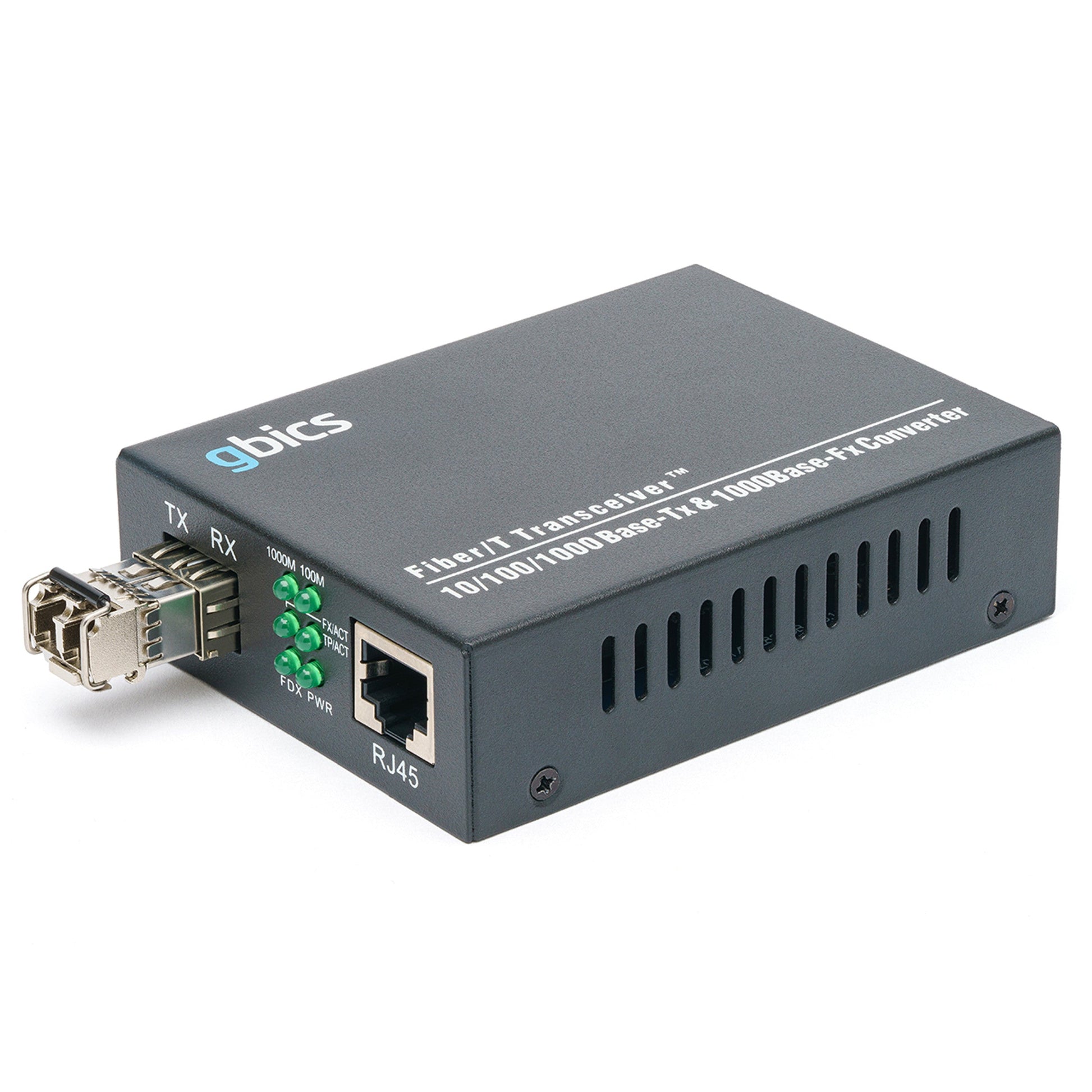

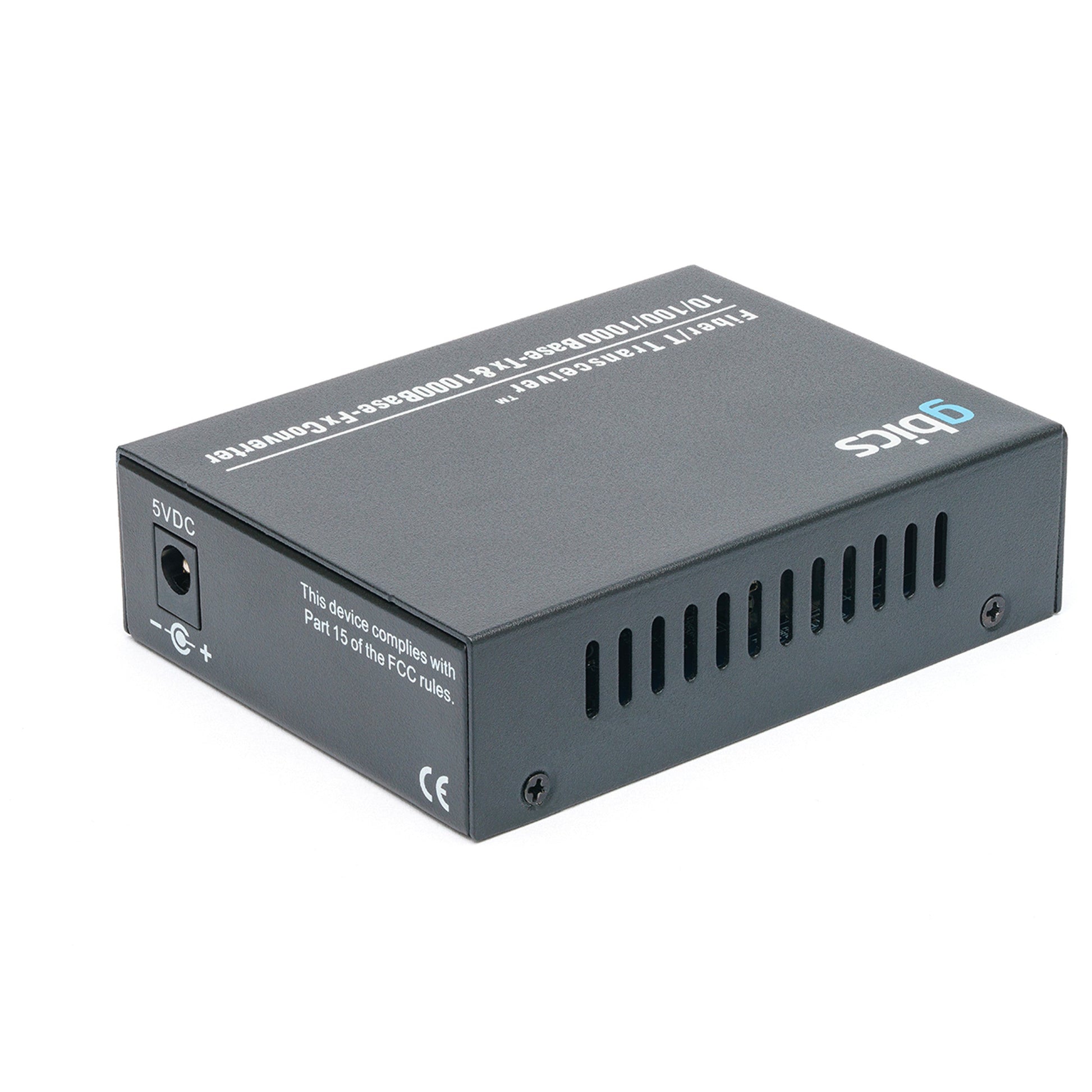

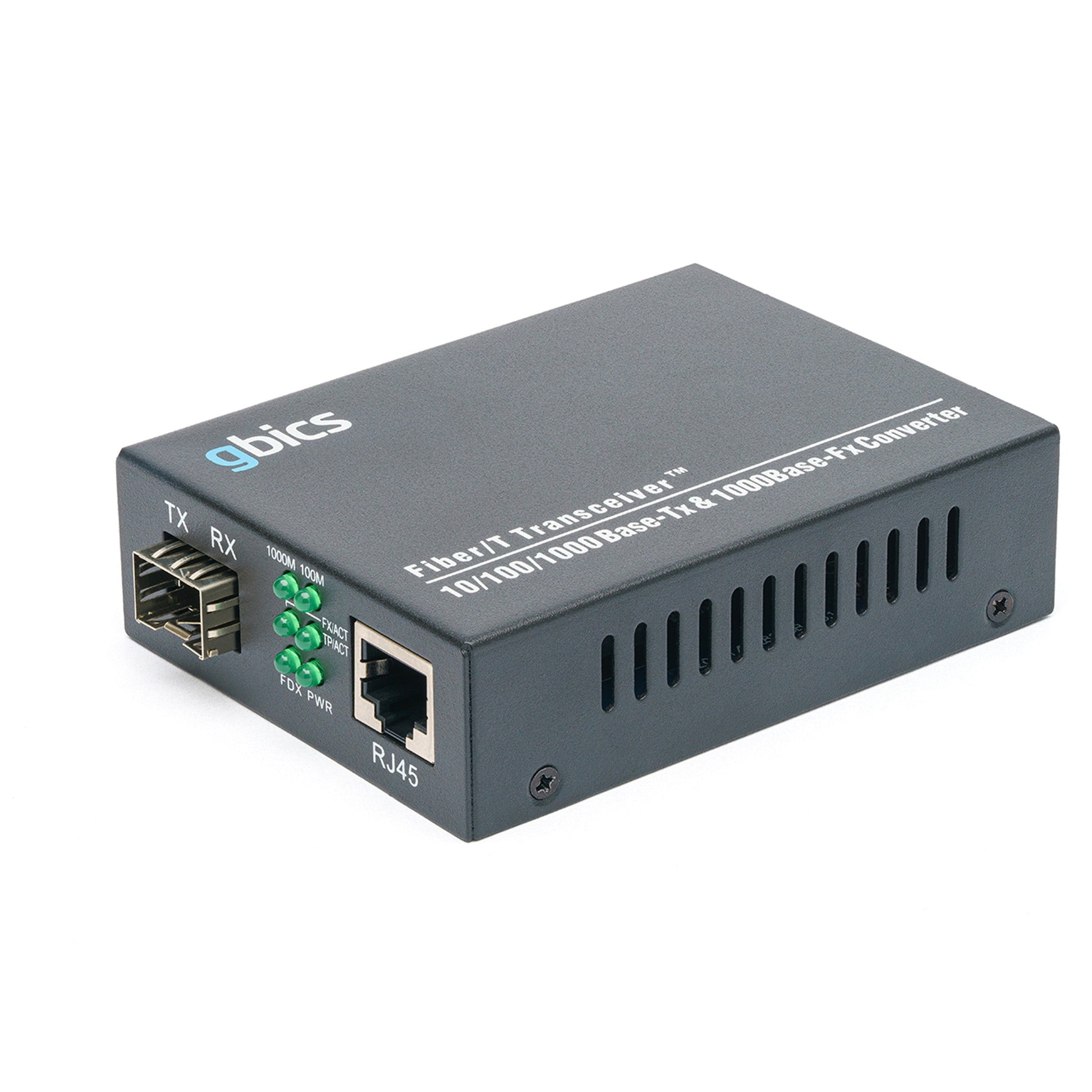

GMC-1G-RJSFP - 10/100/1000BASE-T RJ45 to 1000BASE-SX/LX SFP Media Converter

GMC-1G-RJSFP - 10/100/1000BASE-T RJ45 to 1000BASE-SX/LX SFP Media Converter

The GBICS GMC-1G-RJSFP SFP Media and Rate Converter transparently connects copper to SFP for multimode or single mode fibre.It also automatically detects if the copper port speed is 10Mbps, 100Mbps, or 1G and does a rate conversion to 100Mbps or 1G if the fibre SFP speed is different. This 10/100/1000 Ethernet to Fibre Converter provides an economical path to extend the distance of an existing network, the life of non-fibre based equipment, or the distance between two devices. The pluggable fibre optics port allows for flexible network configurations using GBICS SFP transceivers or other manufacturers of MSA compliant SFPs.

Product Specifications

Ports: 1 x 10/100/1000Mbps RJ45 Copper, 1 x Gigabit SFP Port
Standards: IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d
Wavelengths: 850nm/1310nm/1550nm
Supported Distances:
SFP MM: 550m,
SFP SM: 10/20/30/50/80Km,
SFP SM: 20/40/60Km,
CAT5: 100m
Conversion Method: Media Conversion
Time Delay: <10μs
BER: <1/1000000000

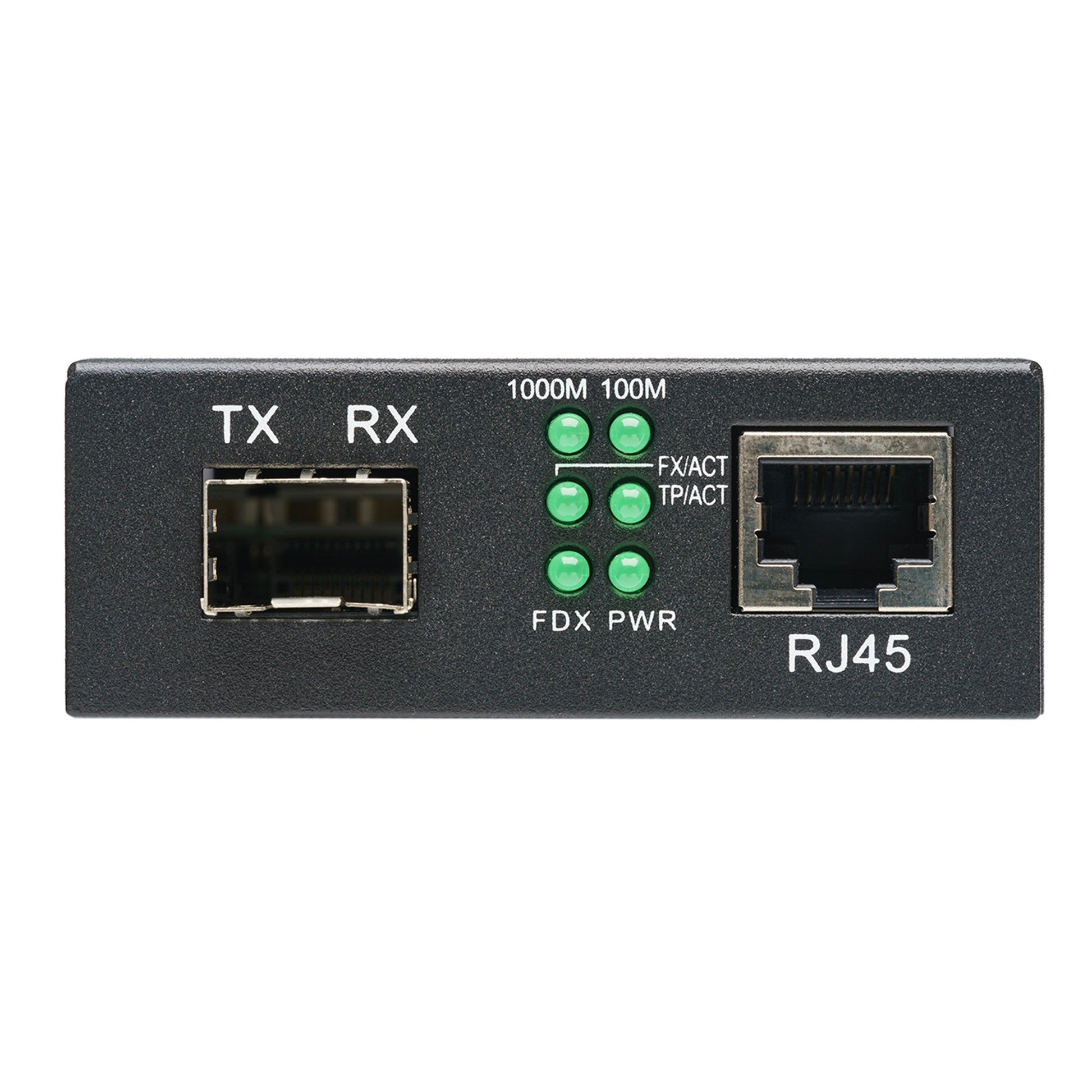

LED Indicator Lamps: 1000M, 100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER
Power Supply: DC5V 1A (external power), AC220 0.5A /DC-48( internal power )
Power Dissipation: 3W
Operating Temperature: 0 ~ 50 ℃
Humidity: 5%~90%
Storage Temperature: -40~ 70 ℃
Dimension: External: 94mmx70mmx26mm; Internal: 140mmx110mmx30mm
