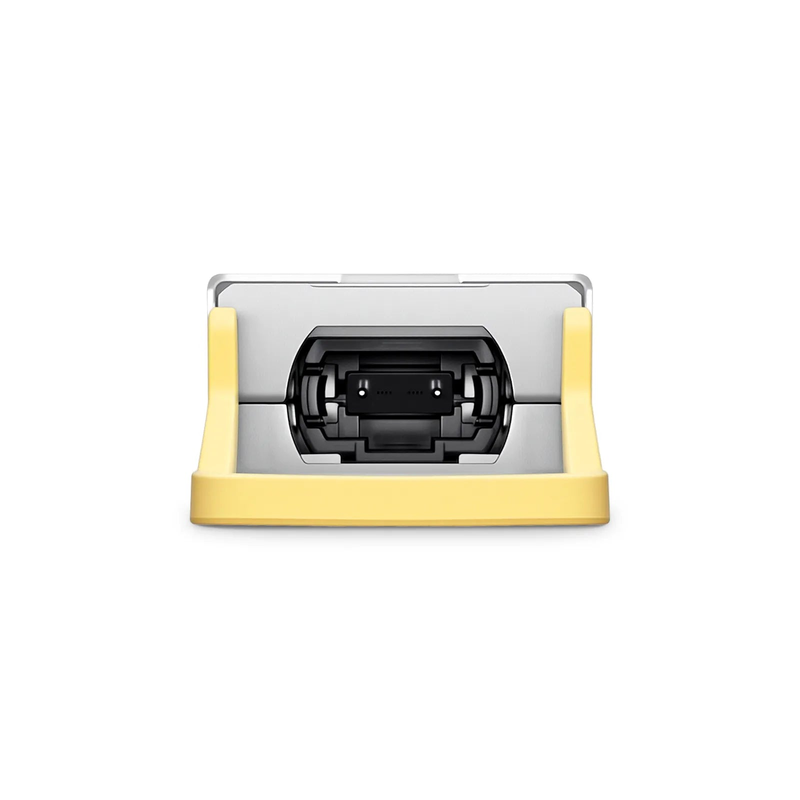

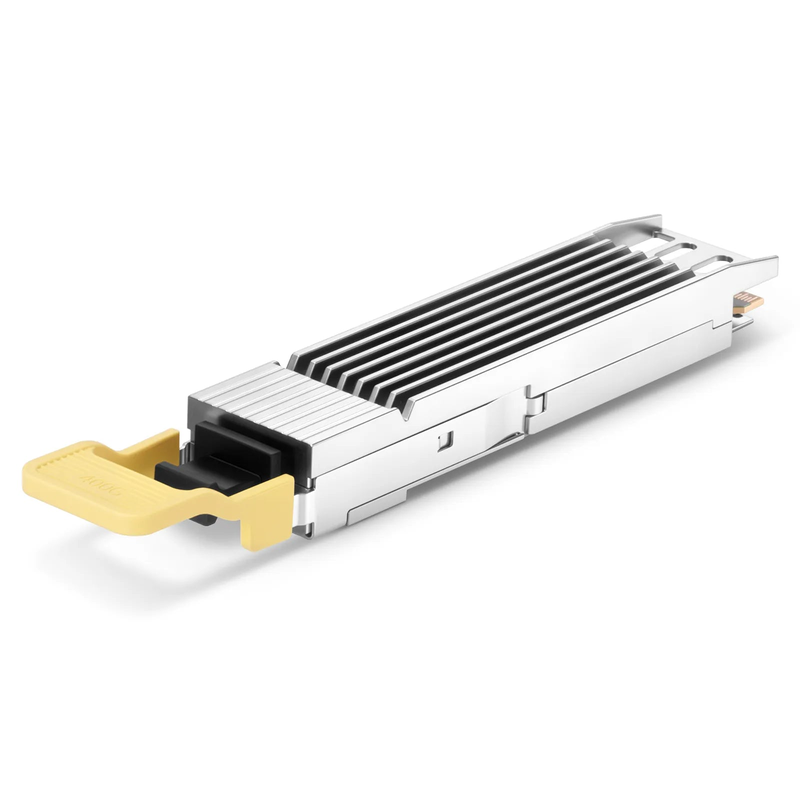

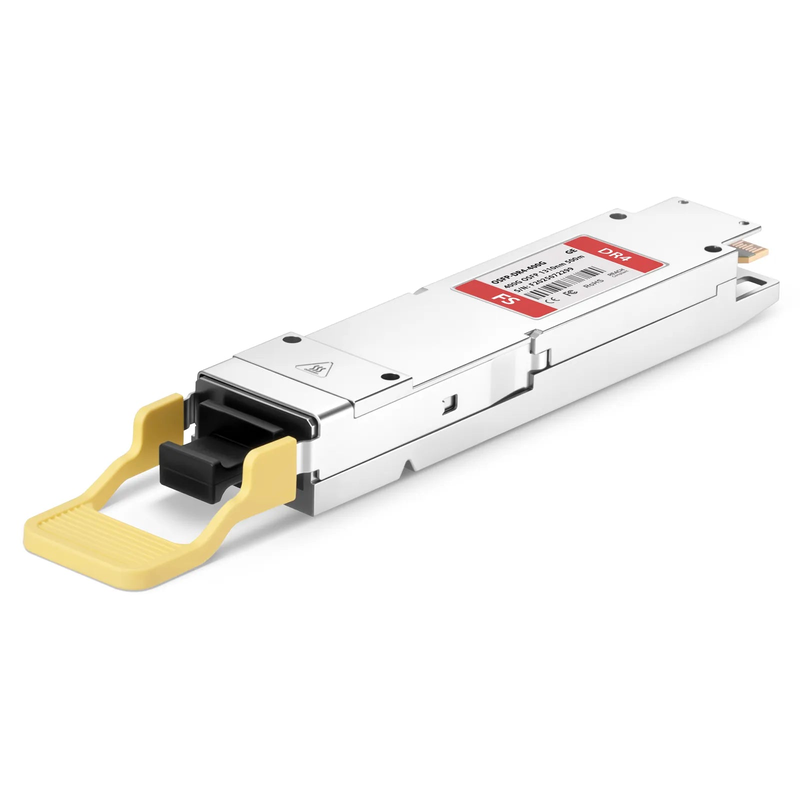

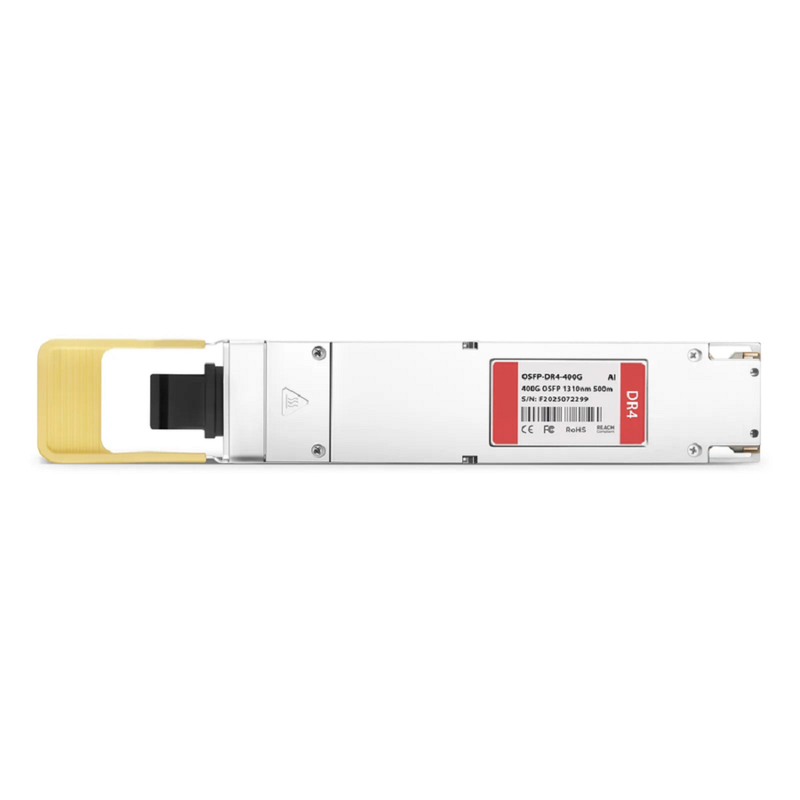

FyberOptix Generic Compatible 400GBASE-DR4 OSFP Finned Top 8 x 50G PAM4 1310nm 500m DOM MPO-12/APC SMF Optical Transceiver Module, Breakout to 4 x 100G-DR

Description

Fyber Optix delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables — coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

The Generic Compatible OSFP optical transceiver module is designed for 400GBASE Ethernet throughput up to 500m link lengths over OS2 singlemode fiber (SMF) using a wavelength of 1310nm via MTP/MPO-12 APC connectors. This transceiver is compliant with CMIS 5.2, IEEE 802.3bs and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. The single-port OSFP finned-top transceiver is designed for Ethernet air-cooled switches, delivering low latency, low power consumption, and high reliability. It supports uplink connections in spine-leaf architectures, such as from an 800G switch to a 400G switch, as well as downlink connectivity from 400G switches to 100G switches(via 4x100G-DR breakout). It is the ideal solution for HPC computing, AI, and cloud data centers.

Fyber Optix is a British-engineered brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet — backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
