FyberOptix NVIDIA/Mellanox MMS4C11-XM800 (980-9IAY1-00XM00) Compatible 800G OSFP224 DR4 Broadcom 3nm DSP (Sian3 | BCM83628) 1310nm 500m RHS/Flat Top PAM4 DDM MPO/MTP-12 APC SMF Optical Transceiver Module

Description

Fyber Optix delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables — coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

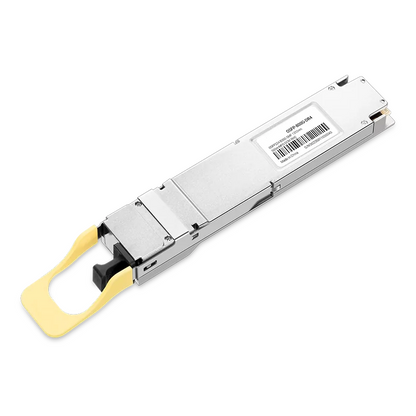

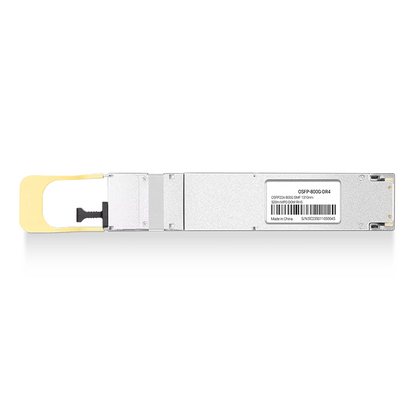

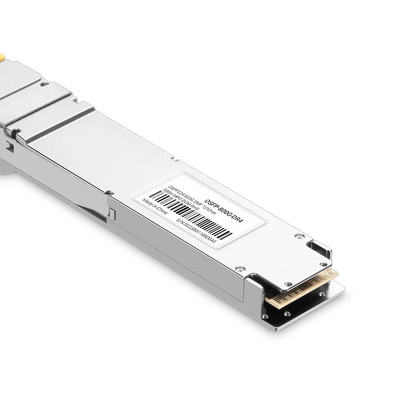

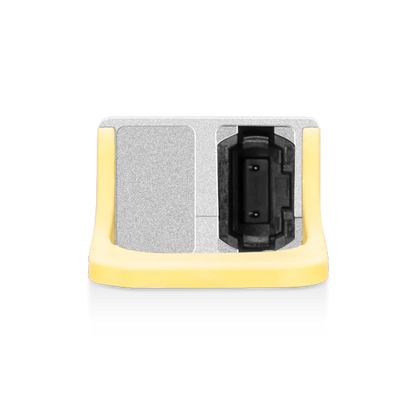

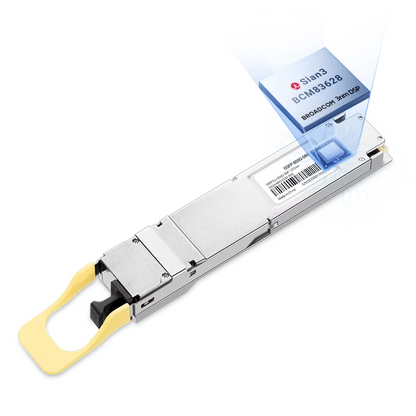

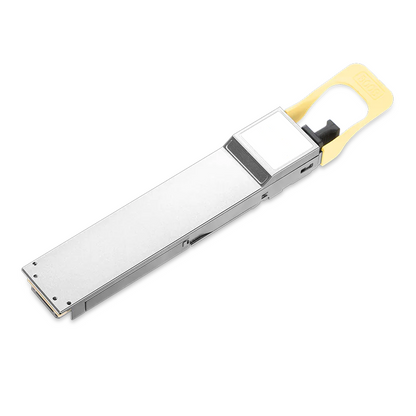

FO OSFP-800G-DR4 adopts an OSFP Flat Top form factor, with 4×200G PAM4 on the electrical side and 4×200G PAM4 on the optical side. It operates at a 1310nm single-mode wavelength and achieves parallel optical transmission via a single-port MPO/MTP-12 APC interface, supporting single-mode fiber links up to 500 m in length. This module is primarily used for high-speed interconnection between TH6 series switches and ConnectX-9 (CX9) OSFP 800G network interface cards, suitable for large-scale AI training clusters, high-performance computing (HPC), and next-generation computing network architectures.

Fyber Optix is a British-engineered brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet — backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
