FyberOptix NVIDIA/Mellanox MMA4Z00-NS-FLT Broadcom DSP & Broadcom VCSEL Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM Two MPO-12/APC MMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

FyberOptix NVIDIA/Mellanox MMA4Z00-NS-FLT Broadcom DSP & Broadcom VCSEL Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM Two MPO-12/APC MMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

£989.00 GBP
£1,285.00 GBP £989.00 GBP
Sale Sold out
Model

Description

Fyber Optix delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables — coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

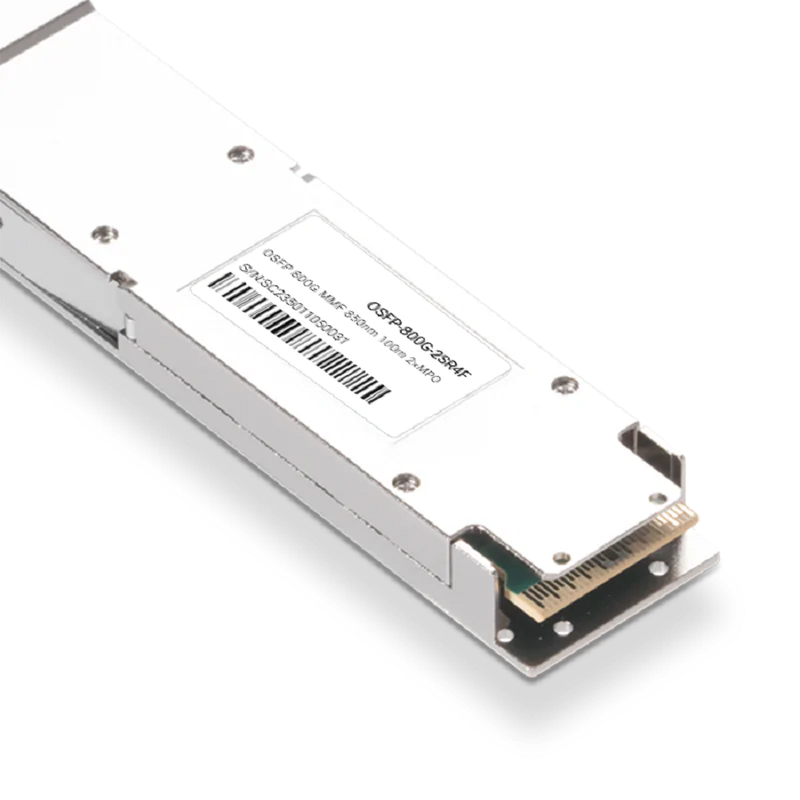

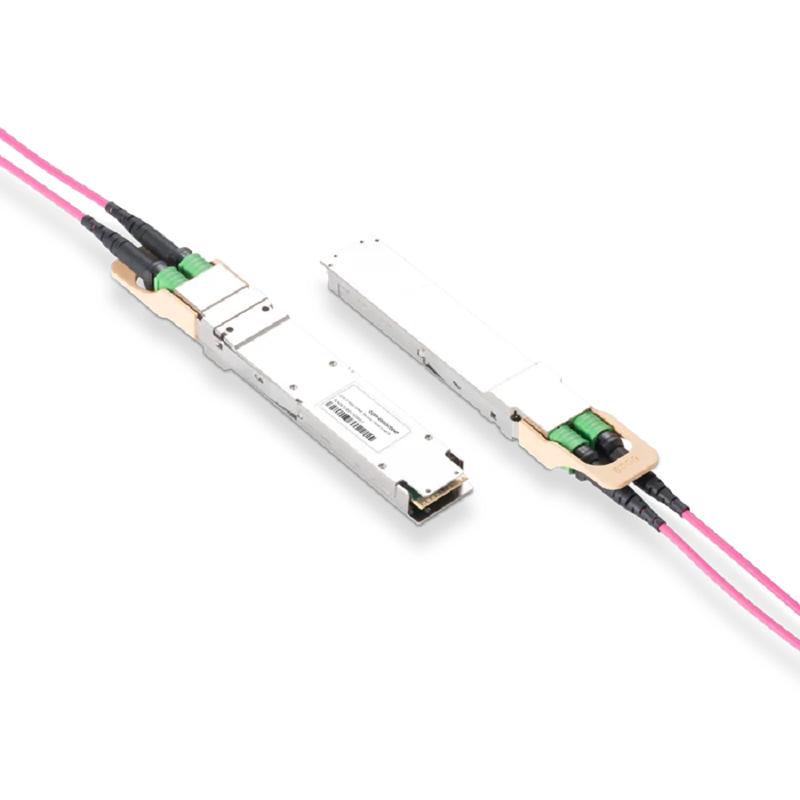

NADDOD NVIDIA/Mellanox MMA4Z00-NS-FLT compatible OSFP-800G-2VR4F optical transceiver is designed for 800Gb/s Ethernet interconnects, using a twin-port OSFP architecture to support 2×400Gb/s VR4/VR8 multimode transmission over an 8-channel parallel optical interface. The module operates via two MPO-12/APC connectors, with each connector carrying four optical lanes, and uses 100G-PAM4 modulation to enable short-reach transmission of up to 50 meters over multimode fiber. Built-in Broadcom DSP & Broadcom VCSEL, it is compatible with NVIDIA ConnectX-8 C8180 SuperNIC, ensuring reliable, high-speed data transmission in demanding deployments. By adopting a parallel multimode VR4/VR8 design, the OSFP-800G-2VR4F enables high port density and efficient short-reach connectivity within 800G switching systems. Finned-top OSFP shells are supported to meet the additional cooling requirements of 800G OSFP switches, while a flat-top variant is available for ConnectX-8 system links, providing deployment flexibility across different platform designs.

Fyber Optix is a British-engineered brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet — backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
