FyberOptix NVIDIA/Mellanox MMA4Z00-NS-FLT Broadcom DSP & Broadcom VCSEL Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM Two MPO-12/APC MMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

FyberOptix NVIDIA/Mellanox MMA4Z00-NS-FLT Broadcom DSP & Broadcom VCSEL Compatible 800G OSFP 2xVR4/VR8 850nm 50m PAM4 DOM Two MPO-12/APC MMF Transceiver Module (Flat Top) for ConnectX-8 C8180 SuperNIC

Model

FyberOptix SKU

FO-OSFP-800G-2VR4F-154633

Description

Fyber Optix delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables — coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

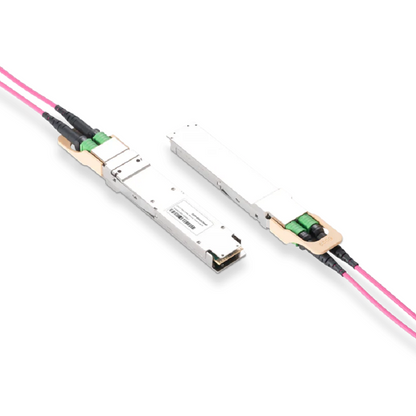

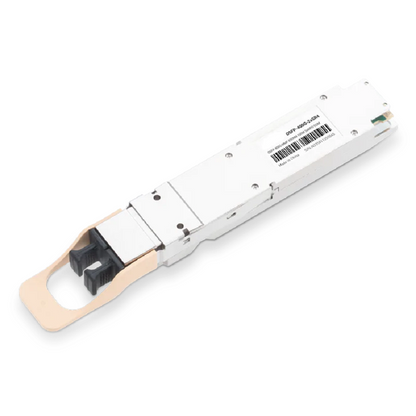

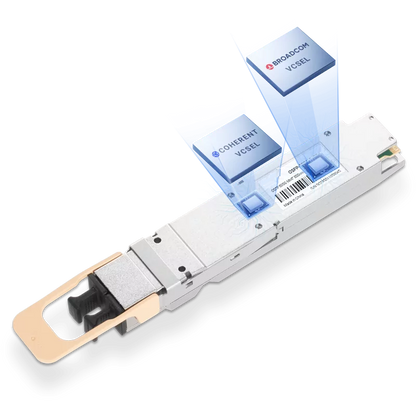

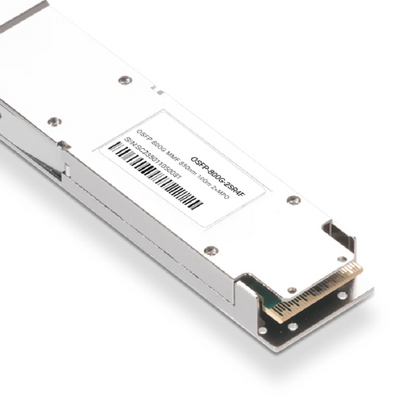

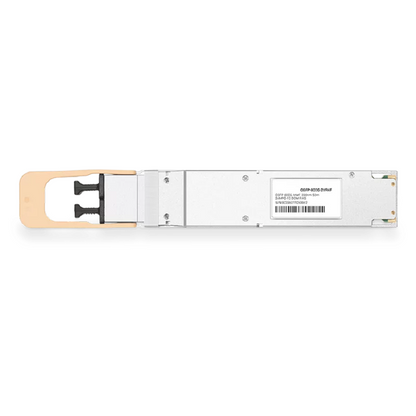

FO NVIDIA/Mellanox MMA4Z00-NS-FLT compatible OSFP-800G-2VR4F optical transceiver is designed for 800Gb/s Ethernet interconnects, using a twin-port OSFP architecture to support 2×400Gb/s VR4/VR8 multimode transmission over an 8-channel parallel optical interface. The module operates via two MPO-12/APC connectors, with each connector carrying four optical lanes, and uses 100G-PAM4 modulation to enable short-reach transmission of up to 50 meters over multimode fiber. Built-in Broadcom DSP & Broadcom VCSEL, it is compatible with NVIDIA ConnectX-8 C8180 SuperNIC, ensuring reliable, high-speed data transmission in demanding deployments. By adopting a parallel multimode VR4/VR8 design, the OSFP-800G-2VR4F enables high port density and efficient short-reach connectivity within 800G switching systems. Finned-top OSFP shells are supported to meet the additional cooling requirements of 800G OSFP switches, while a flat-top variant is available for ConnectX-8 system links, providing deployment flexibility across different platform designs.

Fyber Optix is a British-engineered brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet — backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.

Lifetime warranty

Every FyberOptix module is covered for life against defects.

Coded for your platform

Pre-programmed for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia, Fortinet.

Fast global delivery

Dispatched from UK/EU/US hubs with express options.

View full details

OEM Compatibility

Fully compatible with leading network equipment vendors

Why Fyber Optix

Built for network engineers who can't afford downtime

✓

Lifetime warranty

Every product is backed for the life of the deployment, with support when you need it.

⚙

100% pre-shipment tested

Every unit is individually tested and validated before dispatch.

↗

Fast global delivery

Reliable fulfilment for urgent network rollouts and replacement projects.

☎

Dedicated technical support

Speak with specialists who understand compatibility, coding and deployment needs.

Need a larger quantity?

Get a Custom Quote for Your Project

Competitive pricing for bulk orders, ongoing supply and enterprise projects.

▣ Request a Bulk Quote →
Answers to your Questions

FAQs

Is this product covered by warranty? +

Yes, every Fyber Optix product carries a lifetime warranty for confidence across the life of your deployment.

Is this compatible with my switch or router? +

Fyber Optix products are coded and tested for compatible OEM platforms. If you are unsure, send us your device model or part number and our team can confirm compatibility.

Are products tested before dispatch? +

Yes, every unit is individually tested before shipment to help ensure reliable performance in real network environments.

What lead time should I expect for bulk orders? +

Lead times depend on the product, quantity and coding requirements. Contact us for current availability and volume order timelines.
