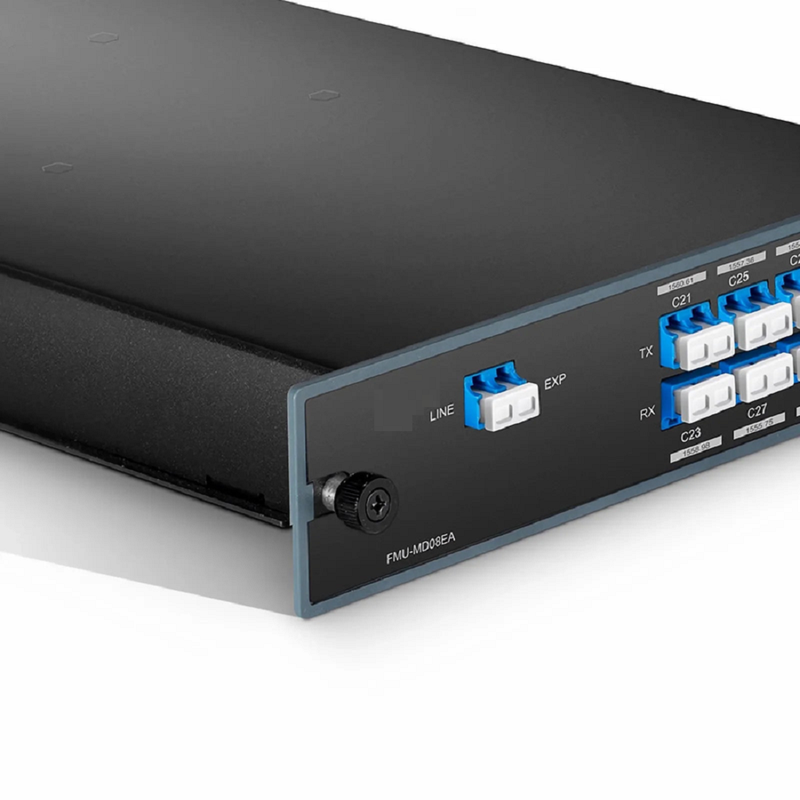

FyberOptix 8 Channels DWDM Mux Demux, 100GHz C22-C36, with Expansion Port, 4.2dB Typical IL, LC/UPC, Single Fiber, Side-B, FMU Plug-in Module

Description

Fyber Optix delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables — coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

The 8CH Mux Demux, based on TFF (Thin Film Filter), is a passive DWDM device featuring high density, low loss, and long-haul transmission suitability. It features an expansion port can be used to add additional channels, providing a cost-effective and easily expandable solution. In addition, this unit can act as either a multiplexer or de-multiplexer (Mux/Demux). It combines 8-channel of DWDM wavelengths into a composite signal and separates the combined DWDM signal into 8-channel individual wavelengths over a single-mode optical fiber. In accordance with the ITU-T G.694.1, it maximizes the capacity of the C-band range. Designed for maximum configuration flexibility, the DWDM Mux Demux can plug directly into the FMU chassis, each module occupying one slot. Moreover, because single fiber Mux/Demux is always used in pairs, this device needs to be used in conjunction with the FMU-MD08EA.

Fyber Optix is a British-engineered brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet — backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
