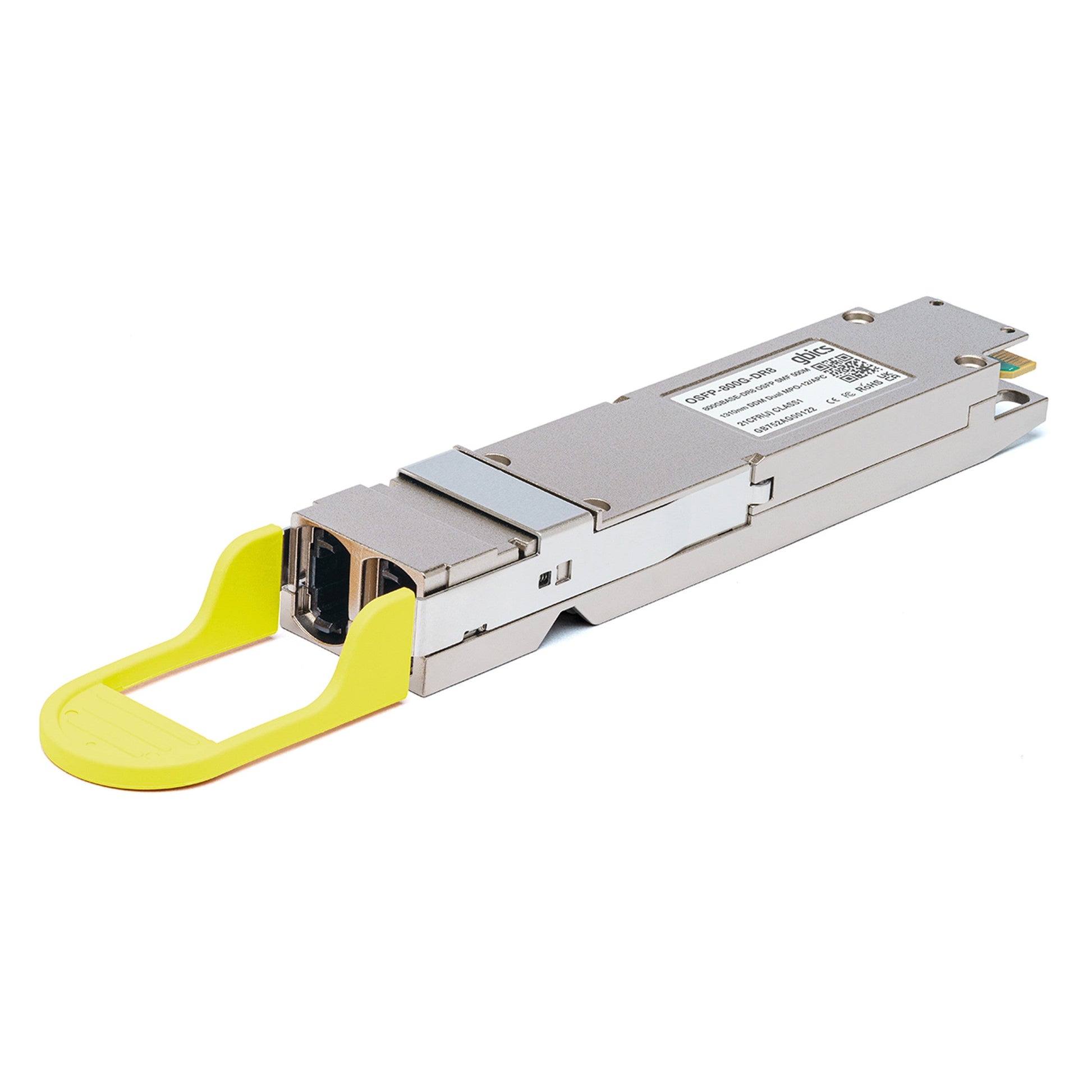

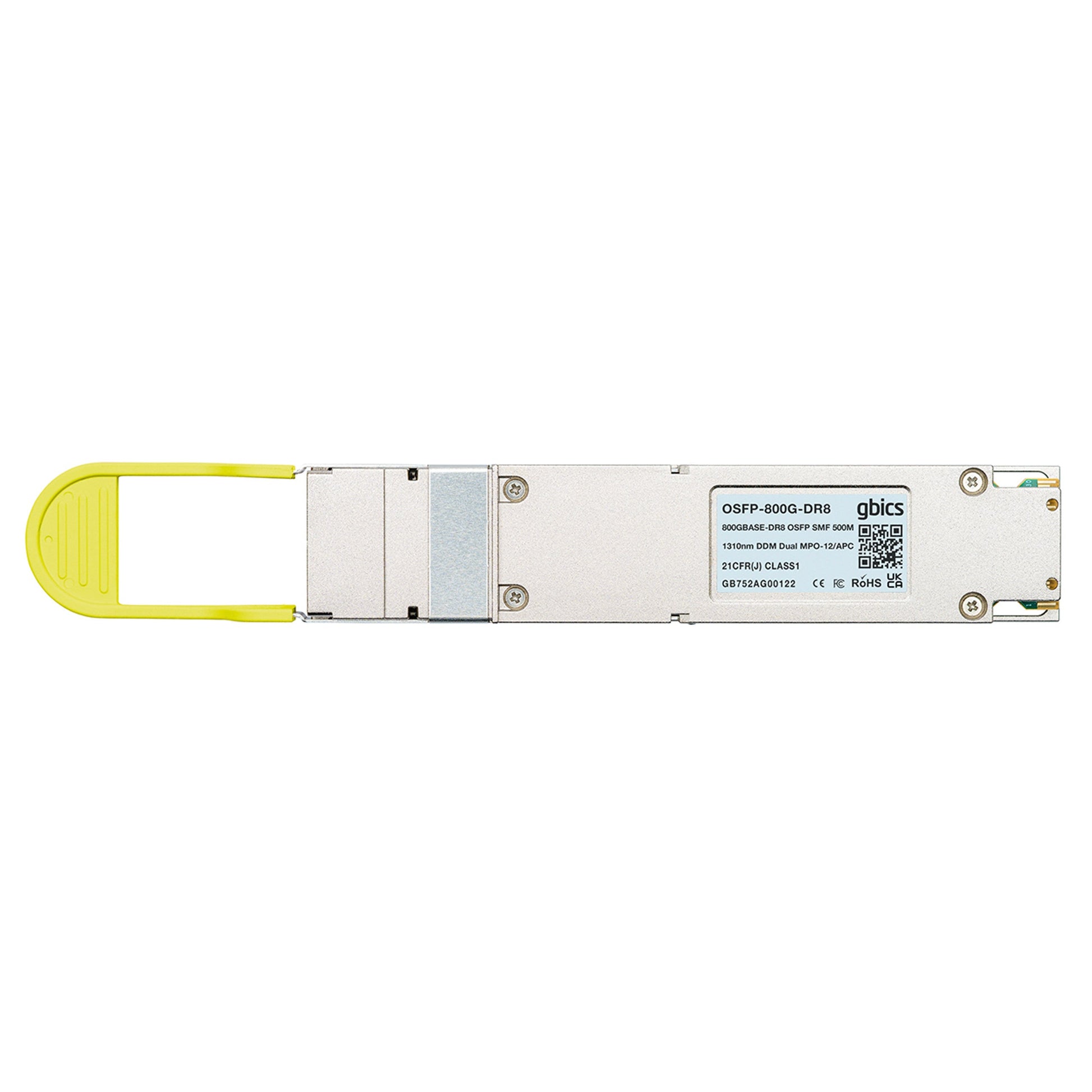

Compatible 800GBASE-DR8 800Gbps Twin-Port OSFP 2x400Gb/s Single Mode DR8 500m Two MPO-12/APC Transceiver Module

Codable OSFP 800G Transceiver Module

QuickSpecs

Technical Specifications

• 800GBASE Twin Port OSPF 8x100G PAM4.
• Standards based 800-Gigabit Ethernet (800GBASE-Ethernet).
• 850 Gbit/sec line speed.
• Operating distance up to 500m.
• Transmitter wavelength 1310nm.
• Industry-standard Dual MTP/MPO-12 APC.
• Singlemode Fibre (SMF).
• Digital Optical Monitoring (DOM).

Product Support

This product is 100% compatible with the vendors available for selection on this page.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
