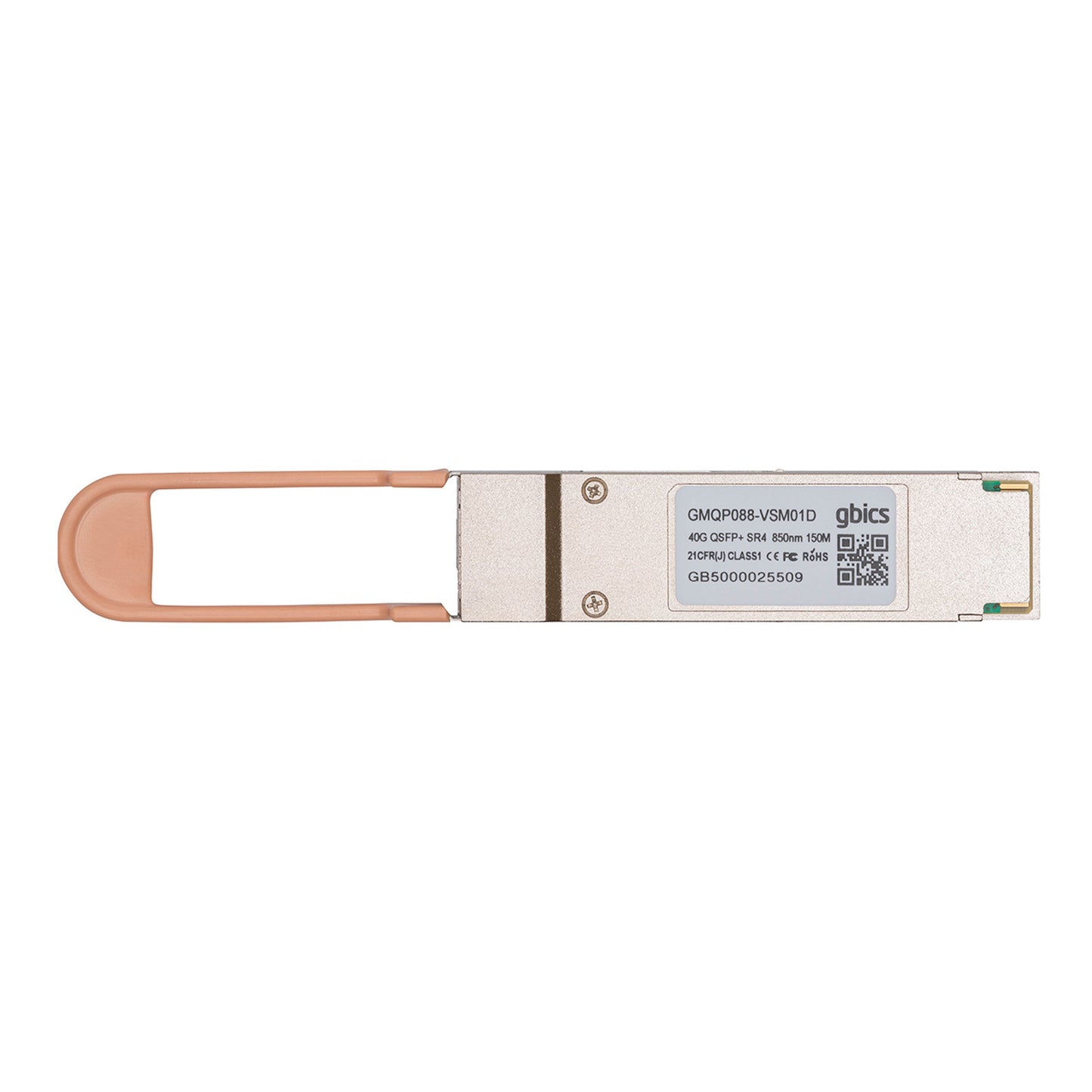

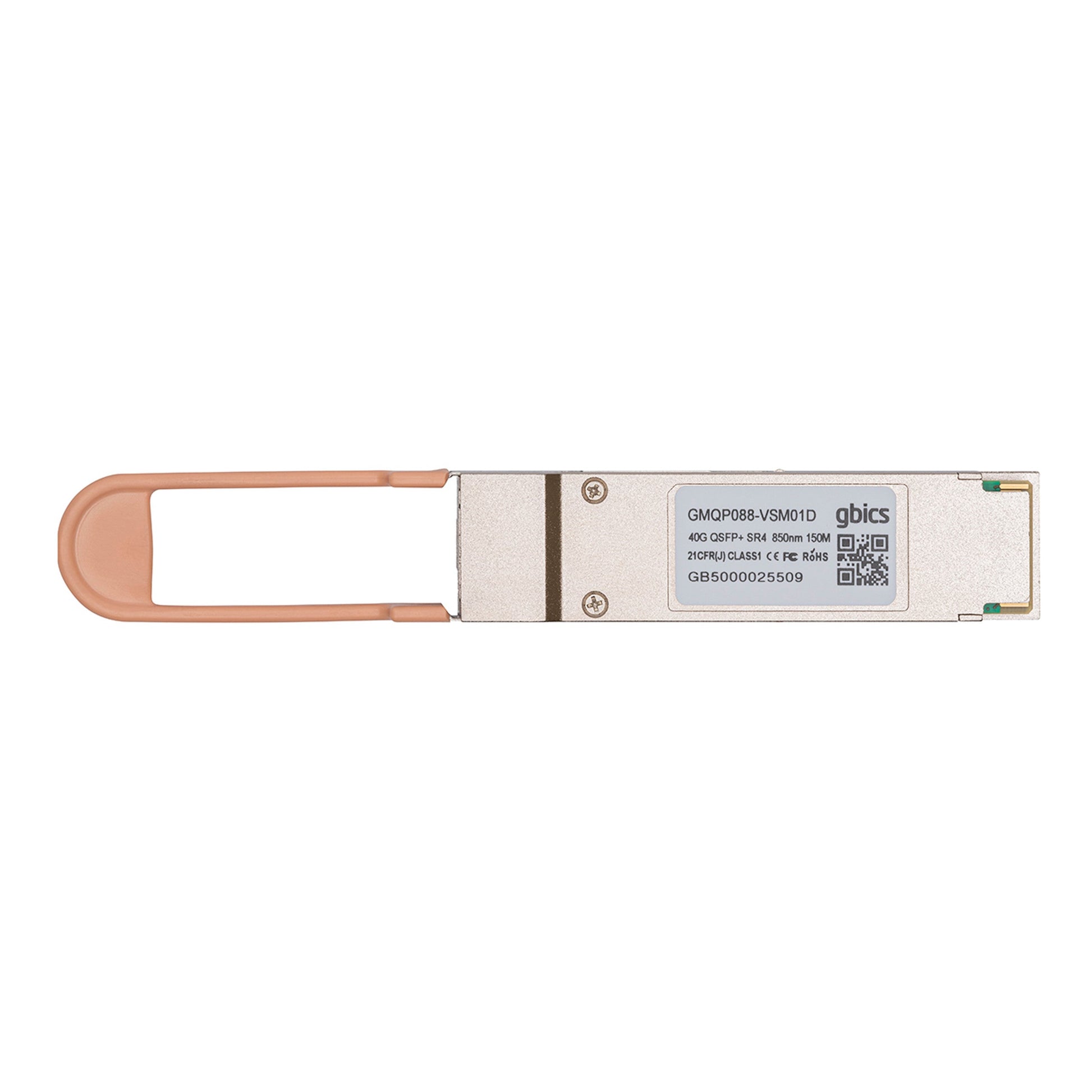

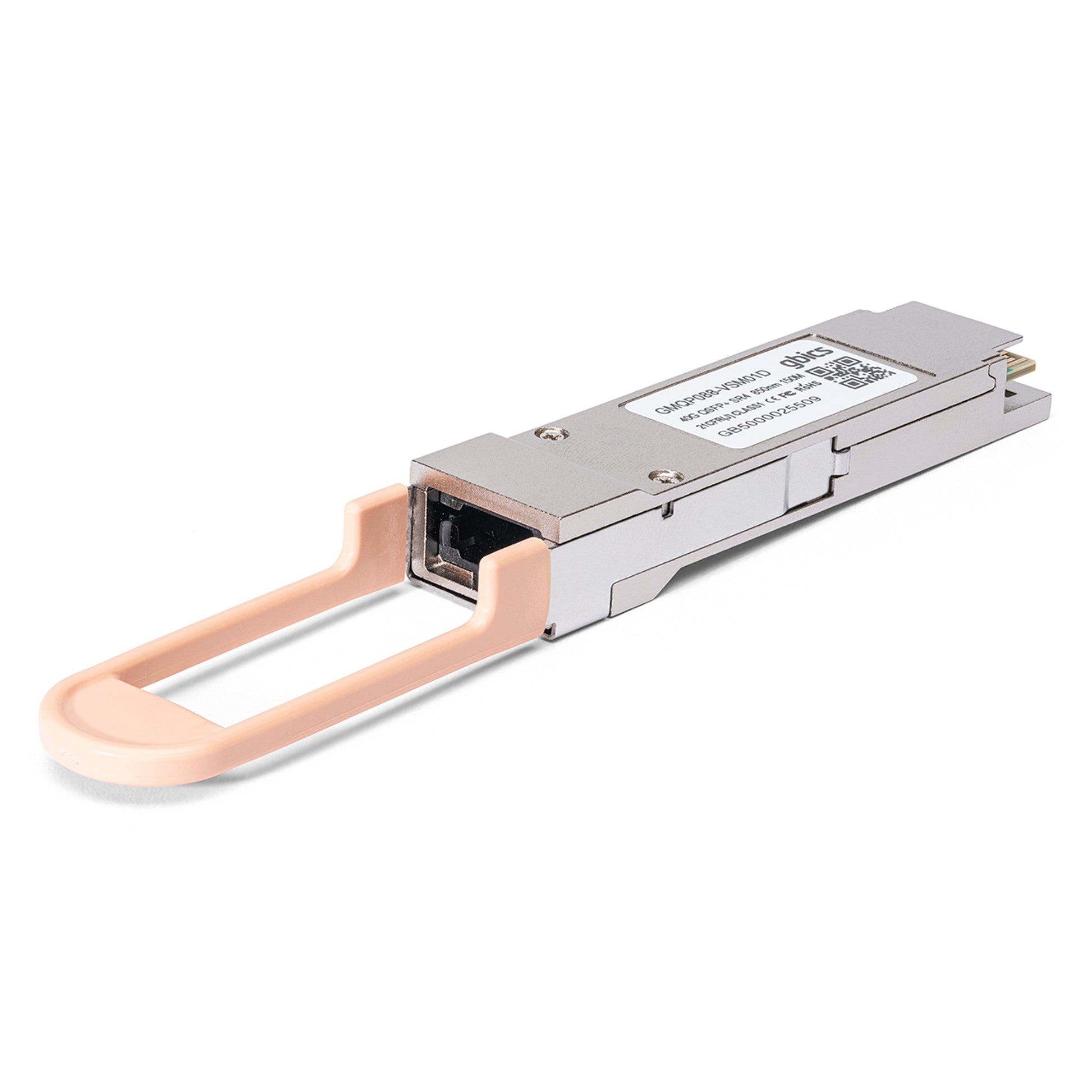

40GBASE-SR4-ITEMP

Industrial Temperature QSFP+ Transceiver Module

QuickSpecs

Technical Specifications

• 40GBASE-SR4 Quad Small Form-factor Pluggable Plus (QSFP+).
• Standards based 40-Gigabit Ethernet (40GBASE-SR4).
• 40 Gbit/sec line speed.
• Operating distance up to 150m on OM4 fibre.
• Transmitter wavelength 850nm.

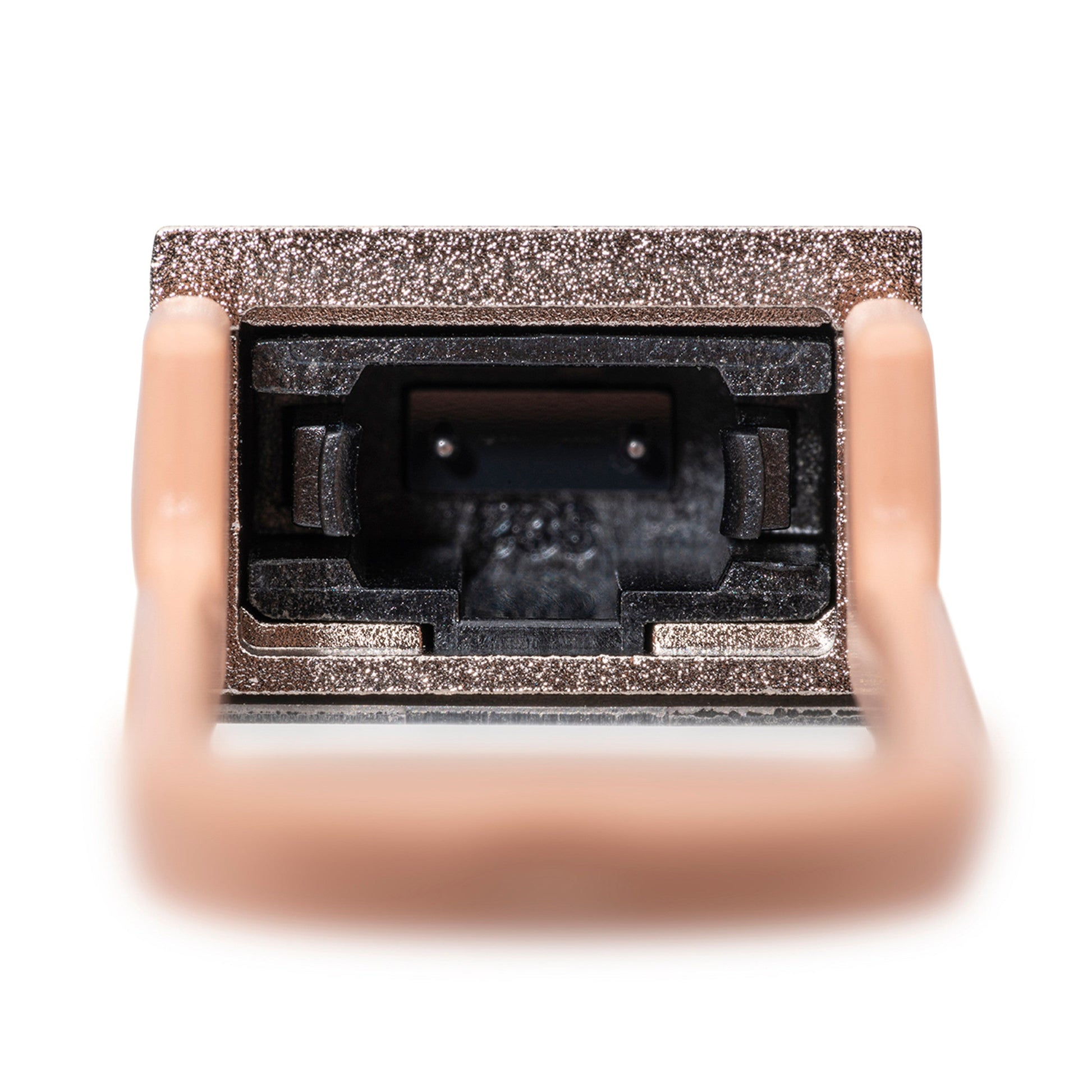

• Industry-standard MPO connector.
• Multimode Fibre (MMF).
• Digital Optical Monitoring (DOM).
• Extended temperature range (EXT): -20°C to 85°C (-4 to 185°F)

Product Support

The GBICS 40GBASE-SR4 I-Temp transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

Each individual transceiver is coded in-house. Please contact the sales team via email sales@gbics.com or call +44 (0) 1285 886444 to discuss your requirements.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
