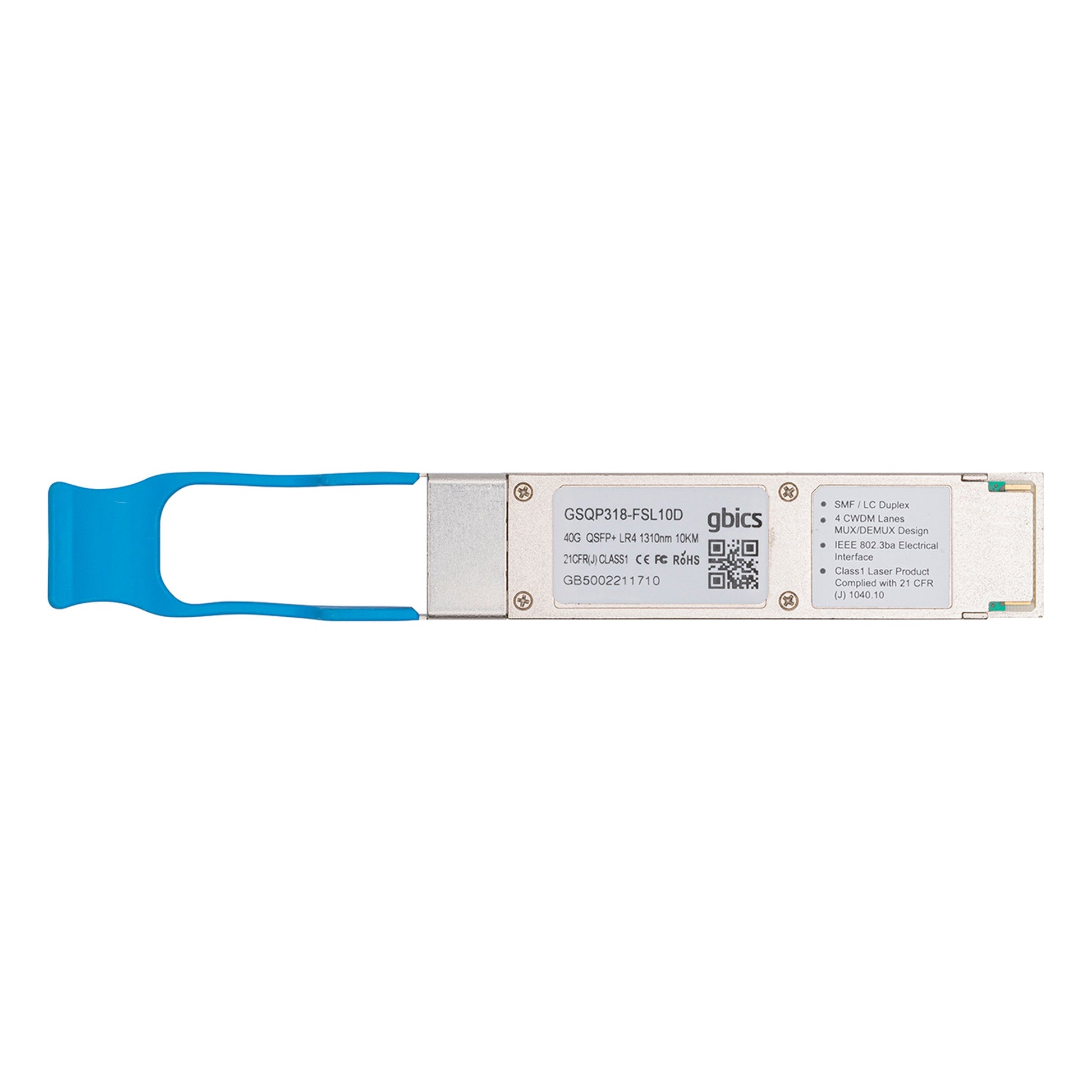

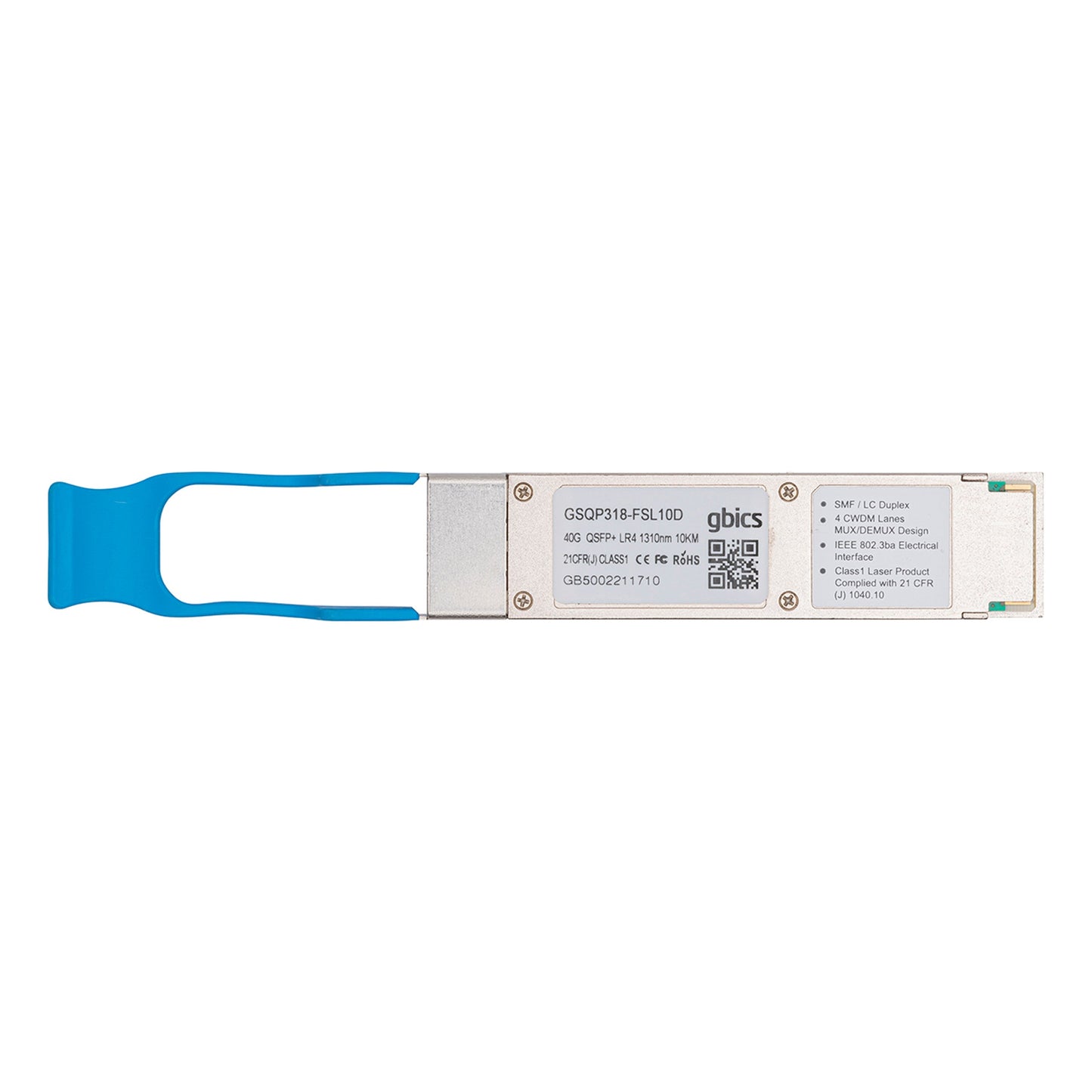

40GBASE-LR4-ITEMP

Industrial Temperature QSFP+ Transceiver Module

QuickSpecs

Technical Specifications

• 40GBASE-LR Quad Small Form-factor Pluggable Plus (QSFP+).
• Standards based 40-Gigabit Ethernet (40GBASE-LR4).
• 40 Gbit/sec line speed.
• Operating distance up to 10km on OS1 fibre.
• Transmitter wavelength 1310nm.
• Industry-standard LC connector.
• Singlemode Fibre (SMF).
• Digital Optical Monitoring (DOM).
• Extended temperature range (EXT): -40°C to 85°C (-40 to 185°F)

The GBICS 40GBASE-LR4 QSFP+ Module supports link lengths of up to 10km over a standard pair of G.652 single-mode fibre with duplex LC connectors.
The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

Product Support

The GBICS 40GBASE-LR4 I-Temp transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

Each individual transceiver is coded in-house. Please contact the sales team via email sales@gbics.com or call +44 (0) 1285 886444 to discuss your requirements.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
