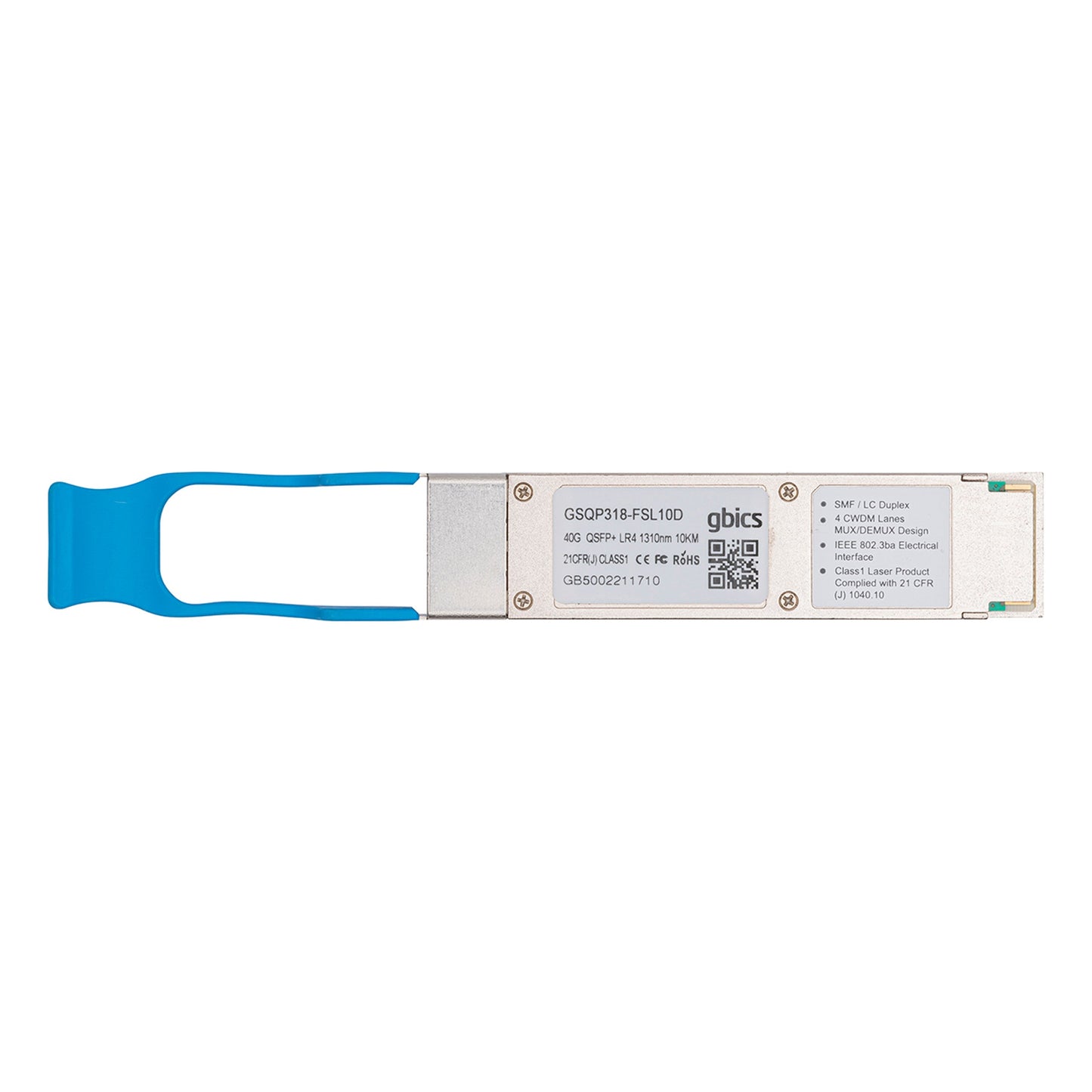

40GBASE-LR4 Codable QSFP+ 1310nm 10km LC DOM Transceiver Module

40GBASE-LR4 Codable QSFP+ 1310nm 10km LC DOM Transceiver Module

£1,245.00 GBP
£1,245.00 GBP
Sale Sold out

Codable 40GBASE-LR4 QSFP+ Optical Transceiver Module

QuickSpecs

Technical Specifications

  • 40GBASE-LR Quad Small Form-factor Pluggable Plus (QSFP+).
  • Standards based 40-Gigabit Ethernet (40GBASE-LR4).
  • 40 Gbit/sec line speed.
  • Operating distance up to 10km on OS1 fibre.
  • Transmitter wavelength 1310nm.
  • Industry-standard LC connector.
  • Singlemode Fibre (SMF).
  • Digital Optical Monitoring (DOM).

The GBICS 40GBASE-LR4 QSFP+ Module supports link lengths of up to 10km over a standard pair of G.652 single-mode fibre with duplex LC connectors.

The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

Compatibility

The GBICS 40GBASE-LR transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Each individual transceiver is coded in-house. If you cannot see the vendor you require, please contact the sales team sales@gbics.com

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
