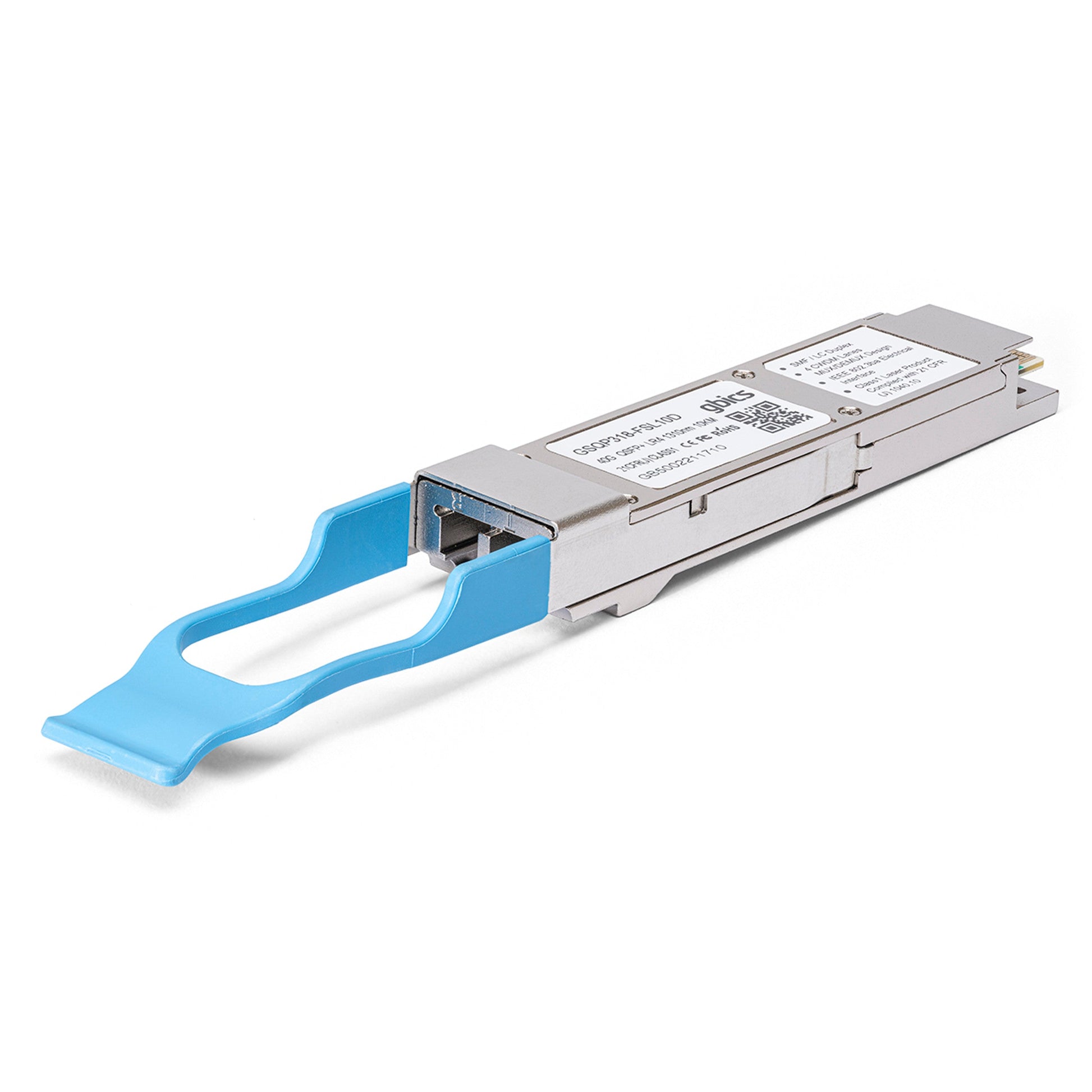

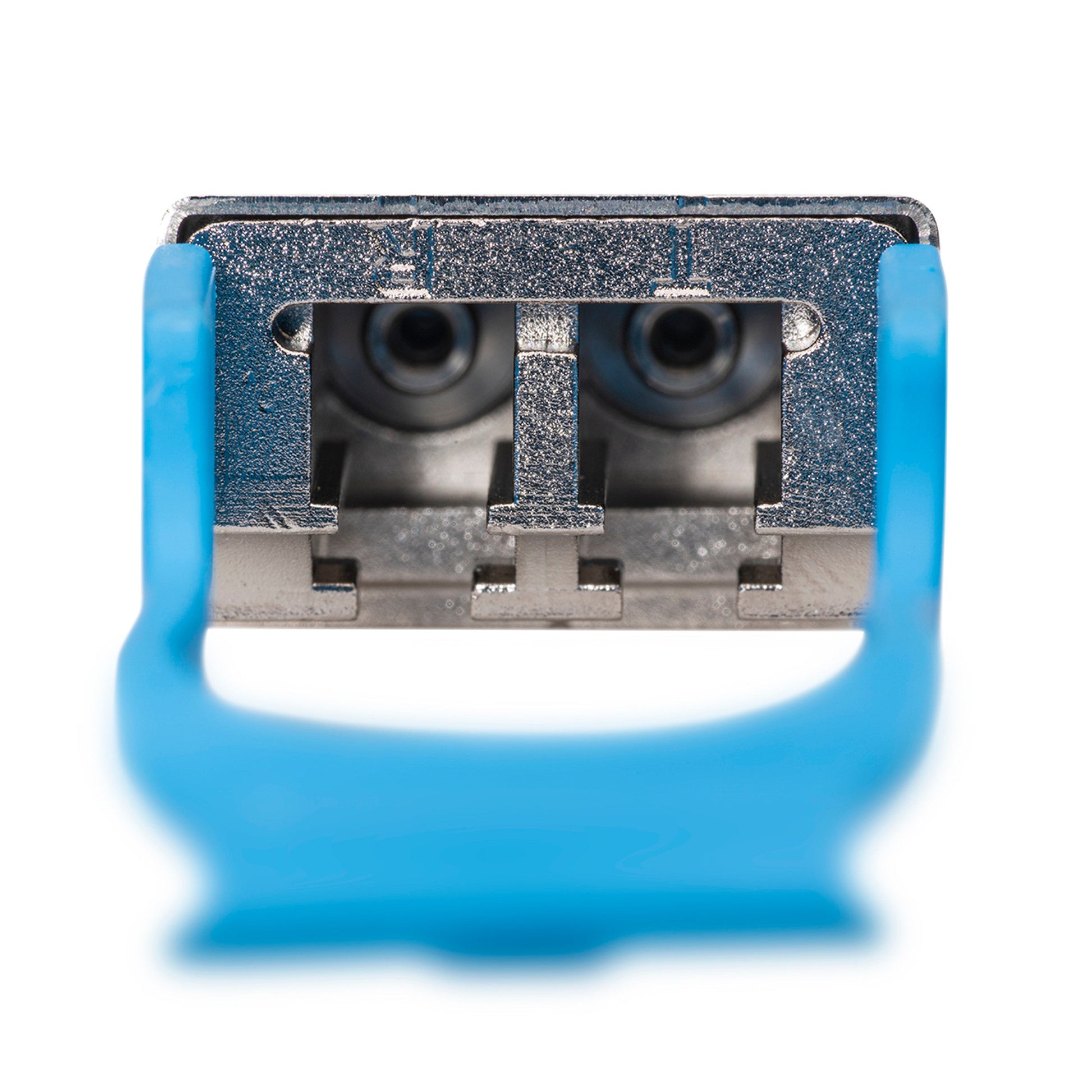

40GBASE-ER4 Codable OTU3 QSFP+ 1310nm 40km LC DOM Transceiver Module

40GBASE-ER4 Codable OTU3 QSFP+ 1310nm 40km LC DOM Transceiver Module

£5,630.00 GBP
£5,630.00 GBP
Sale Sold out

Codable 40GBASE-ER4 QSFP+ Optical Transceiver Module

QuickSpecs

Technical Specifications

  • 40GBASE-ER Quad Small Form-factor Pluggable Plus (QSFP+).
  • Standards based 40-Gigabit Ethernet (40GBASE-ER).
  • 40 Gbit/sec line speed.
  • Operating distance up to 40km on OS1 fibre.
  • Transmitter wavelength 1310nm.
  • Industry-standard LC connector.
  • Singlemode Fibre (SMF).
  • Digital Optical Monitoring (DOM).

The GBICS.com 40GBASE-ER4 QSFP+ Module supports link lengths of up to 40km over a standard pair of G.652 single-mode fibre with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device

Product Support

Our supported vendor list is continually evolving and well in excess of 100 network hardware manufactures.

If you cannot see the vendor you require, please contact the sales team, as it's more than likely available.

All transceivers are coded and tested inhouse, in the UK, from stock.


Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
