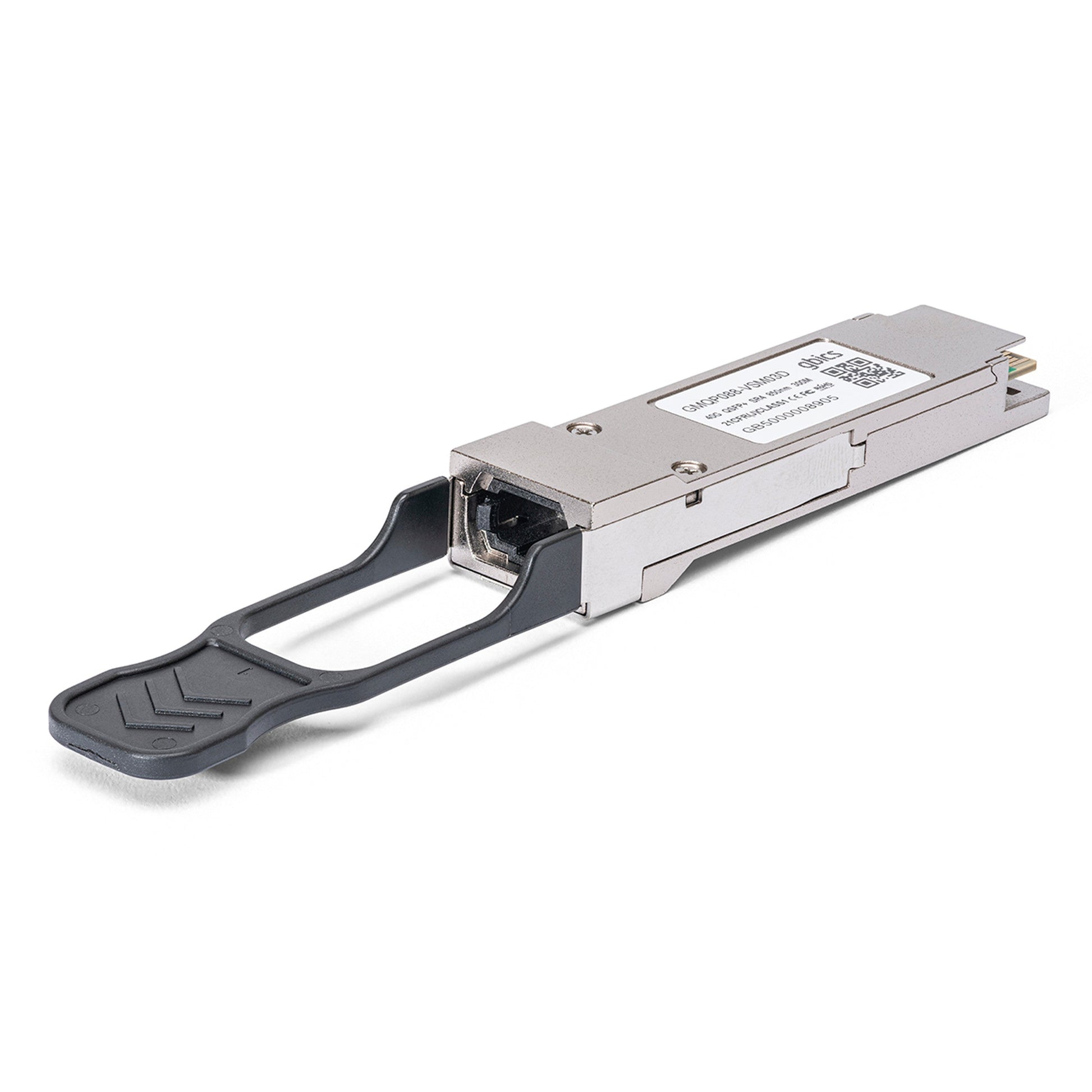

40GBASE-CSR4 Codable QSFP+ 850nm 400m MTP/MPO DOM Transceiver Module

40GBASE-CSR4 Codable QSFP+ 850nm 400m MTP/MPO DOM Transceiver Module

£550.00 GBP
£550.00 GBP
Sale Sold out

Codable QSFP-40G-CSR4 40GBASE-CR4 QSFP+ Transceiver Module

Technical Specifications

  • 40GBASE-CSR Quad Small Form-factor Pluggable Plus (QSFP+).
  • Standards based 40-Gigabit Ethernet (40GBASE-CSR4).
  • 40 Gbit/sec line speed.
  • Operating distance up to 400m on OM4 fibre.
  • Transmitter wavelength 850nm.

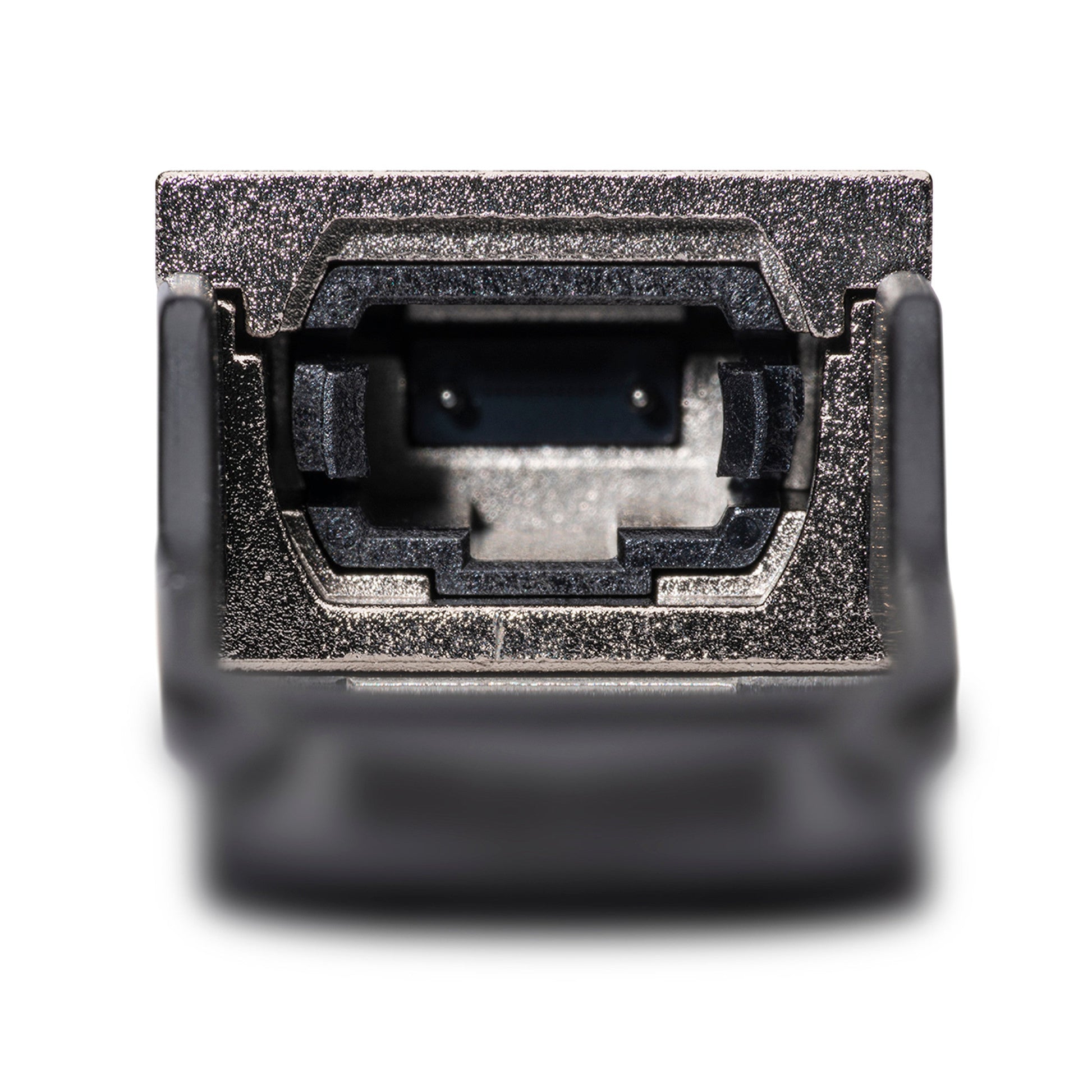

  • Industry-standard MPO connector.
  • Multimode Fibre (MMF).
  • Digital Optical Monitoring (DOM).
The GBICS 40GBASE-CSR4 QSFP+ Module supports link lengths of 300m and 400m respectively on laser-optimised OM3 and OM4 multimode fibre cables.
It primarily enables high-bandwidth 40G optical links over 12-fiber ribbon r cables terminated with MPO/MTP multi-fibre connectors.

It can also be used in 4x10G mode along with ribbon to duplex fibre breakout cables for connectivity to four 10GBASE-SR optical interfaces.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.

Codable 40GBASE-CSR4 QSFP+ Optical Transceiver Module for the world’s leading vendors – Arista, Avaya, Brocade, Cisco, Check Point, Chelsio, Dell, D-Link, Extreme, Fortinet, F5 Networks, Gigamon, HPE Aruba, H3C, Huawei, IBM, Intel, Juniper, Netgear, Mellanox, Mikrotik & Palo Alto
