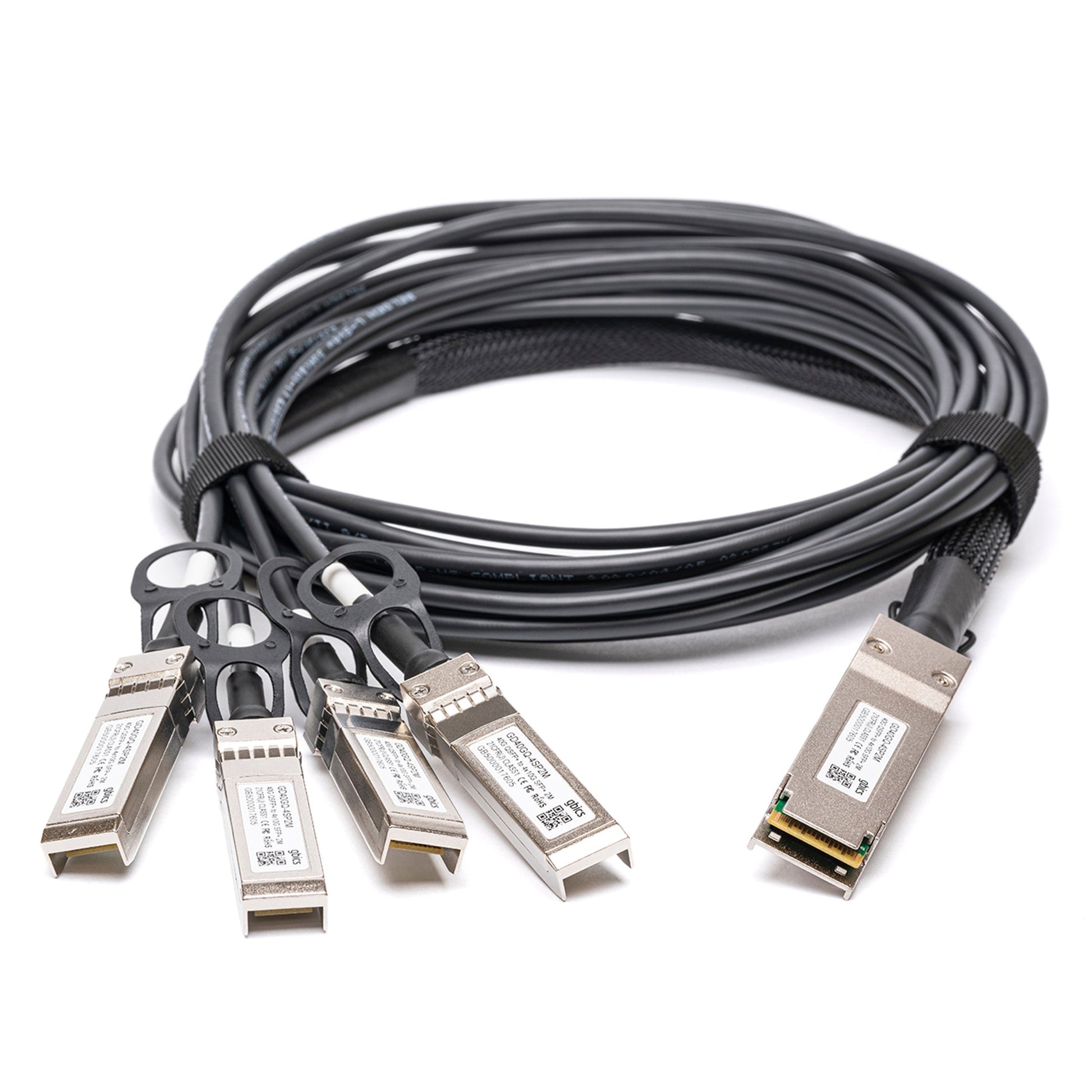

40G QSFP+ to Four SFP+ Passive Cable

QSFP+ to Four SFP+ Direct Attach Copper Breakout Cable

QuickSpecs

Technical Specifications

Quad Small Form-factor Pluggable Plus (QSFP+) to 4 x Small Form-factor Pluggable Plus copper cable.
Passive Copper Cable assembly.
41.2 Gbit/sec to 4 x 10.5 Gbit/sec (40GBASE-CR4 to 4 x 10GBASE-CU).
Operating distance of 0.5 to 5 metres.
Supply Voltage 3.3V.
Power consumption (per end): max 1.5W.
Each connector can be configured for compatibility with any vendor.

Product Support

100% compatible with selected vendors.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
