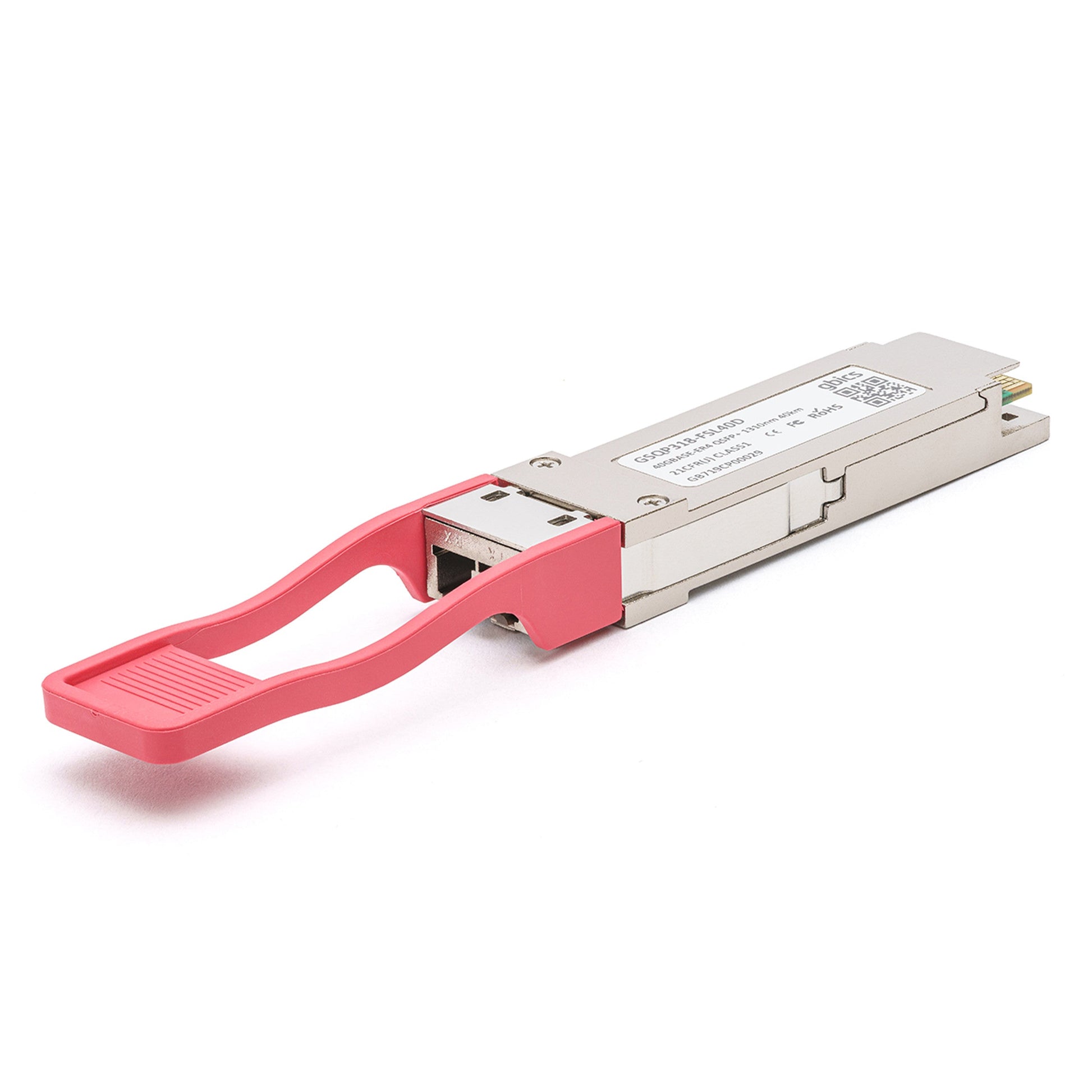

407-BBPH - Dell Compatible 40GBASE-ESR4 QSFP+ 850nm 300m MTP/MPO DOM Transceiver Module

Dell Compatible QSFP+ Transceiver Module

QuickSpecs

Technical Specifications

40GBASE-SR Quad Small Form-factor Pluggable Plus (QSFP+).
Standards based 40-Gigabit Ethernet (40GBASE-ESR4).
40 Gbit/sec line speed.
Operating distance up to 300m on OM4 fibre.
Transmitter wavelength 850nm.
Industry-standard MPO connector.
Multimode Fibre (MMF).
Digital Optical Monitoring (DOM).

The GBICS.com 40GBASE-ESR4 QSFP+ Module supports link lengths of 300m and 400m respectively on optimised OM3 and OM4 multimode fibre cables.
It primarily enables high-bandwidth 40G optical links over 12-fibre ribbon r cables terminated with MPO/MTP multi-fibre connectors.
It can also be used in 4x10G mode along with ribbon to duplex fibre breakout cables for connectivity to four 10GBASE-SR optical interfaces.

Product Support

GBICS is a Dell partner and works closely with the vendor to ensure interoperability.

This product is 100% compatible with all Dell products that support 40GBASE-ESR4 QSFP28 transceivers.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
