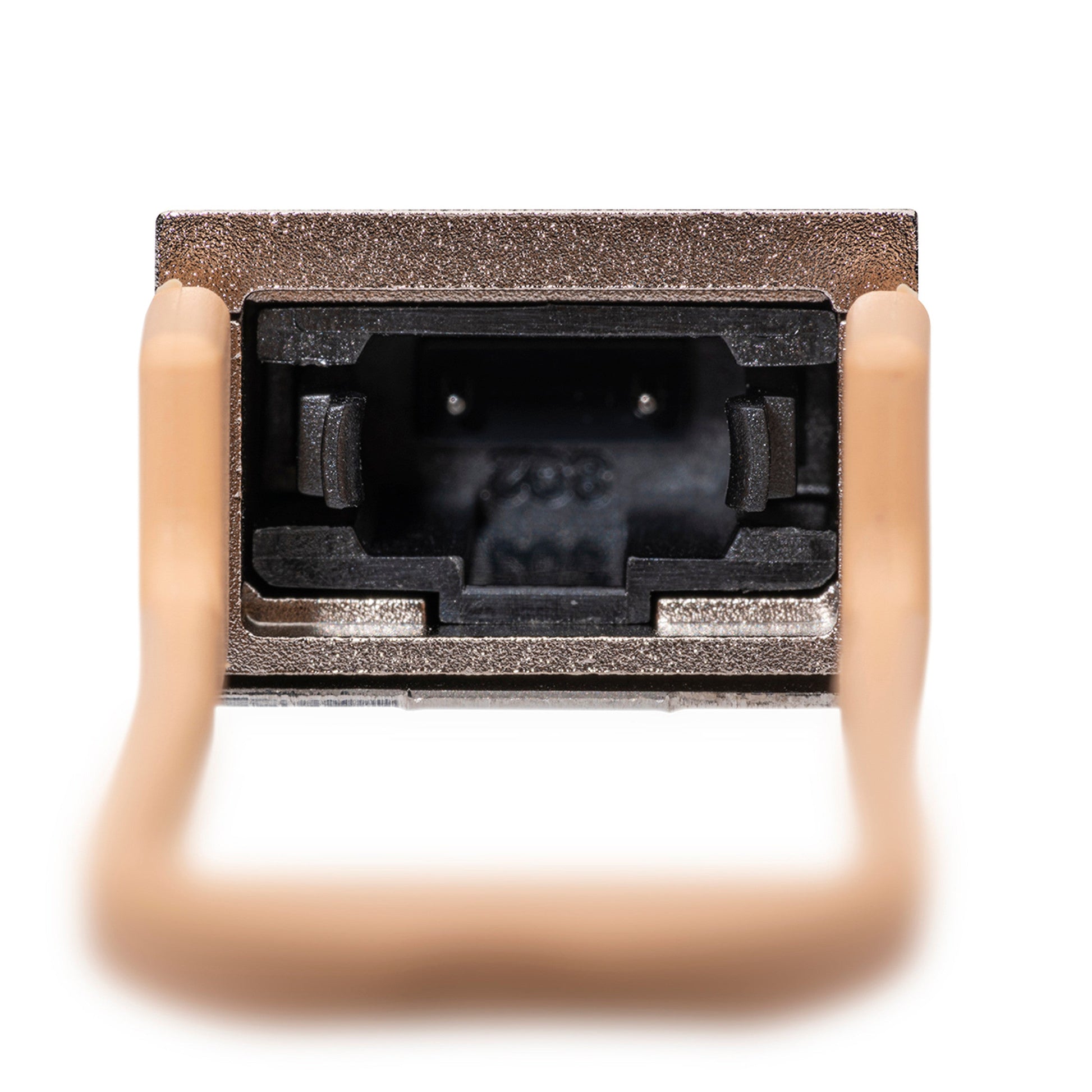

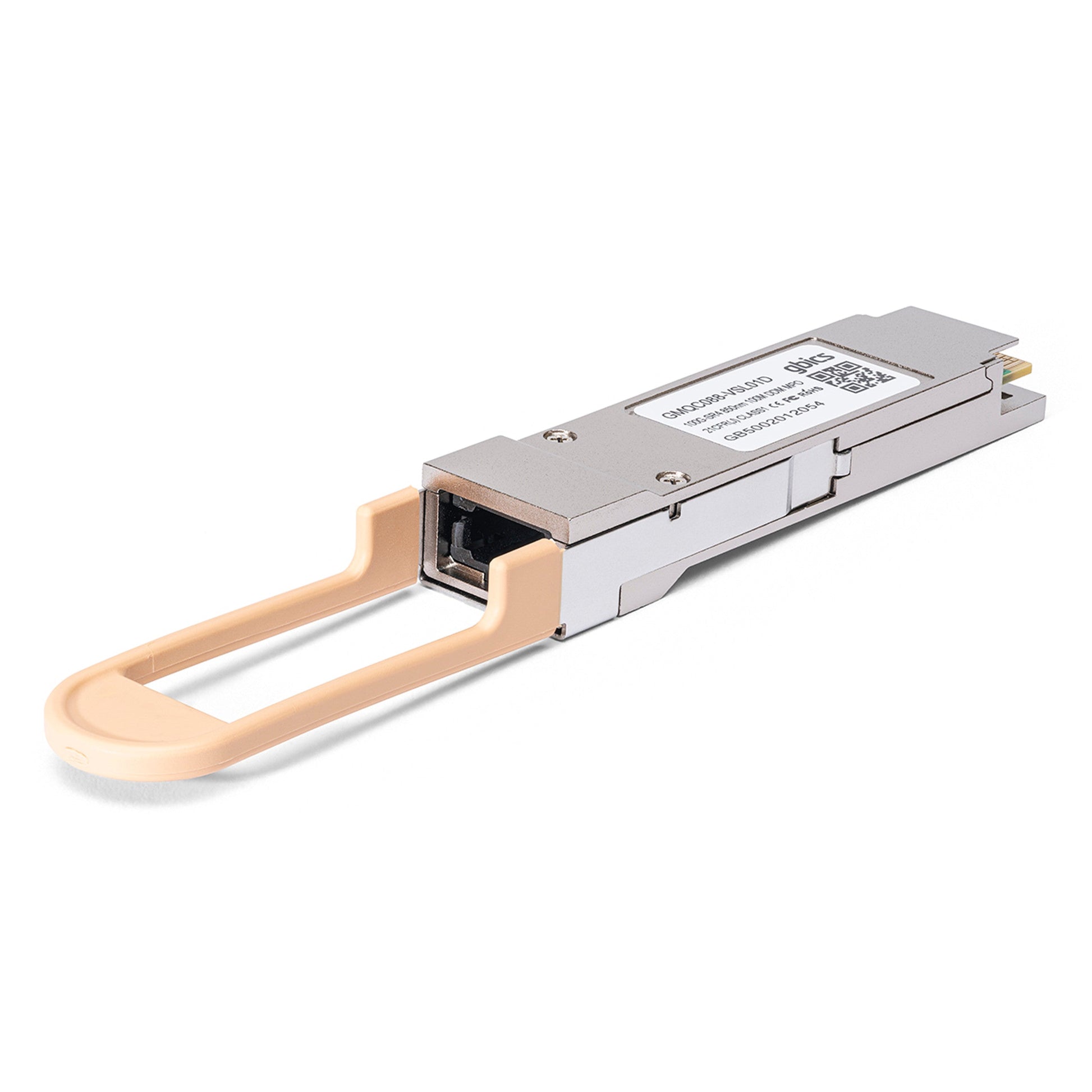

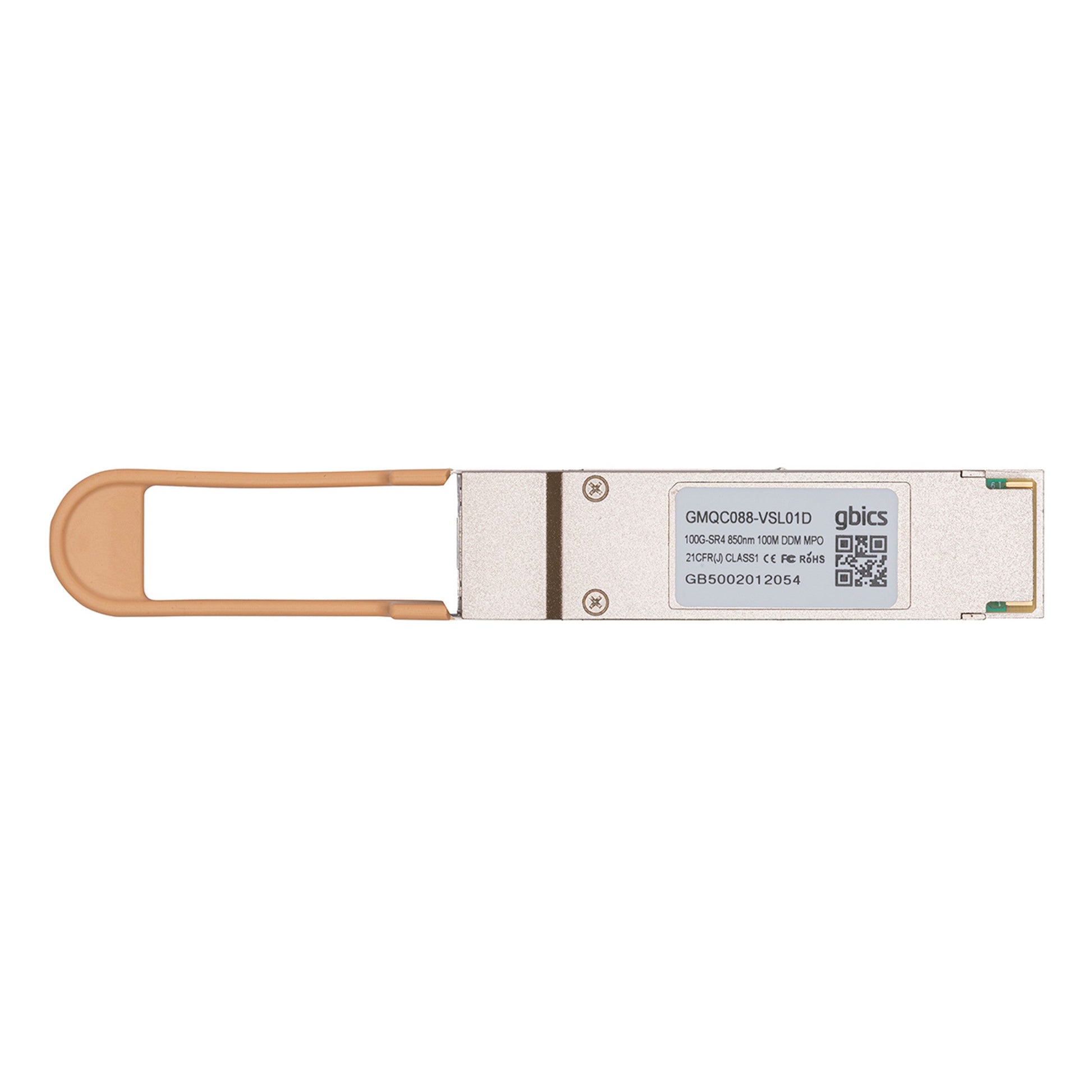

40/100GBASE-SRBD - Dual -rate 40/100GBASE SR-BiDi QSFP Transceiver, LC, 100m, OM4, MMF Transceiver Module

Dual-rate QSFP+ Transceiver Module

QuickSpecs

Technical Specifications

• 100/40GBASE-SR BiDi Quad Small Form-factor Pluggable Plus (QSFP+).
• Standards based 40-Gigabit Ethernet (40GBASE-SR).
• 100/40 Gbit/sec line speed.
• Operating distance up to 150m on OM4 fibre at 40G
• Operating distance up to 100m on OM4 fibre at 100G
• Transmitter wavelength 850nm.
• Industry-standard LC connector.
• Multimode Fibre (MMF).

Product Support

The GBICS 40/100GBASE-SRBD transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Each individual transceiver is coded in-house. If you cannot see the vendor you require, please contact the sales team sales@gbics.com

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
