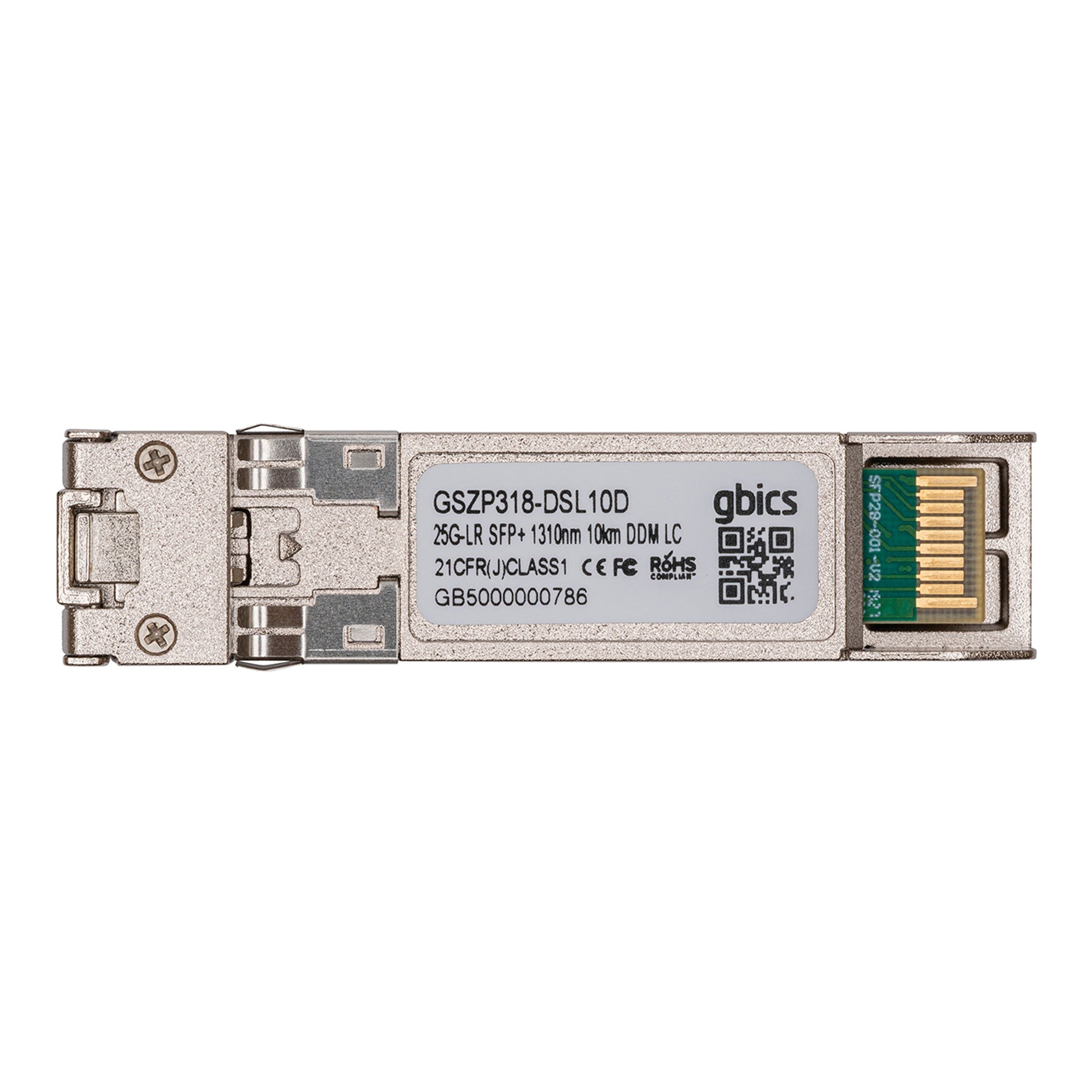

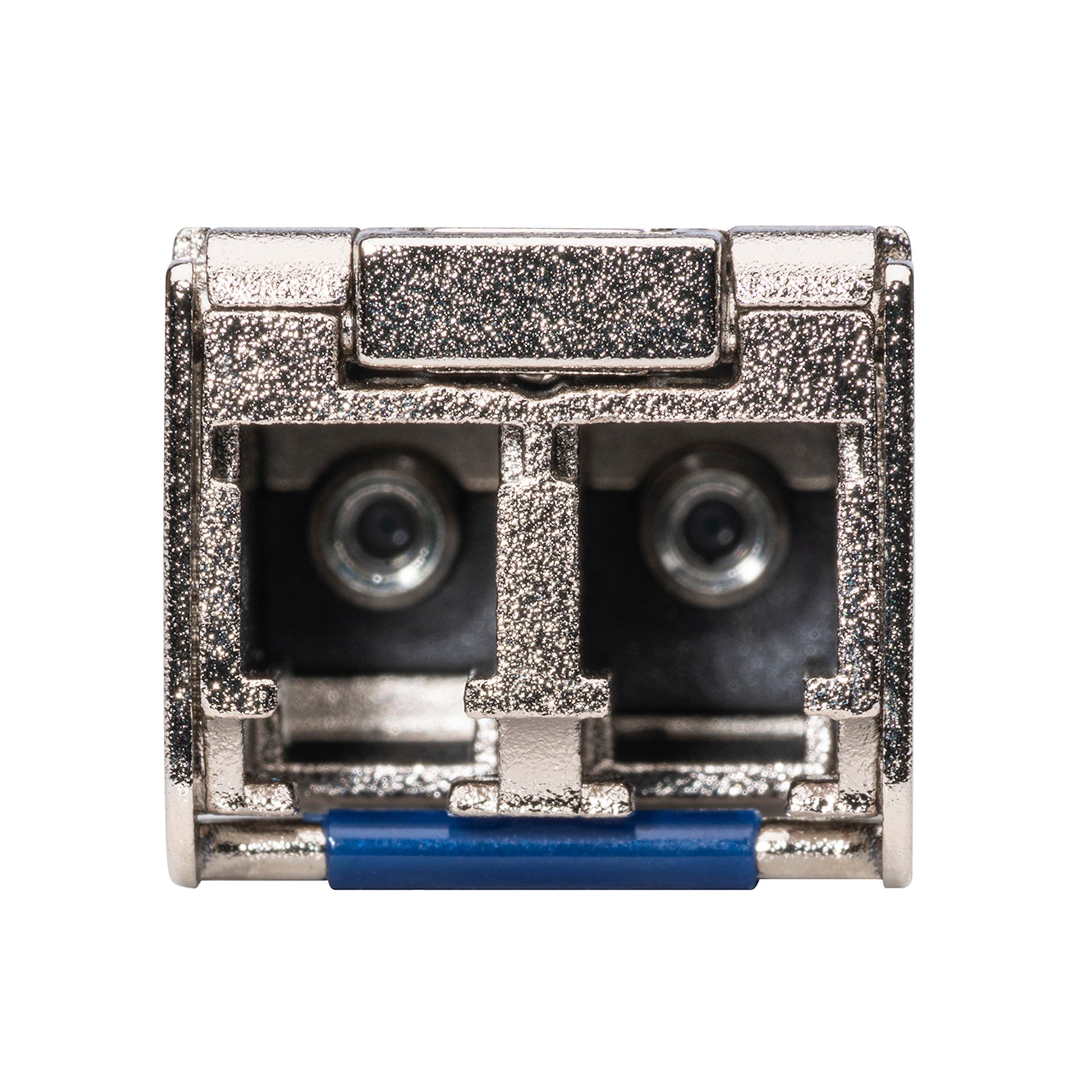

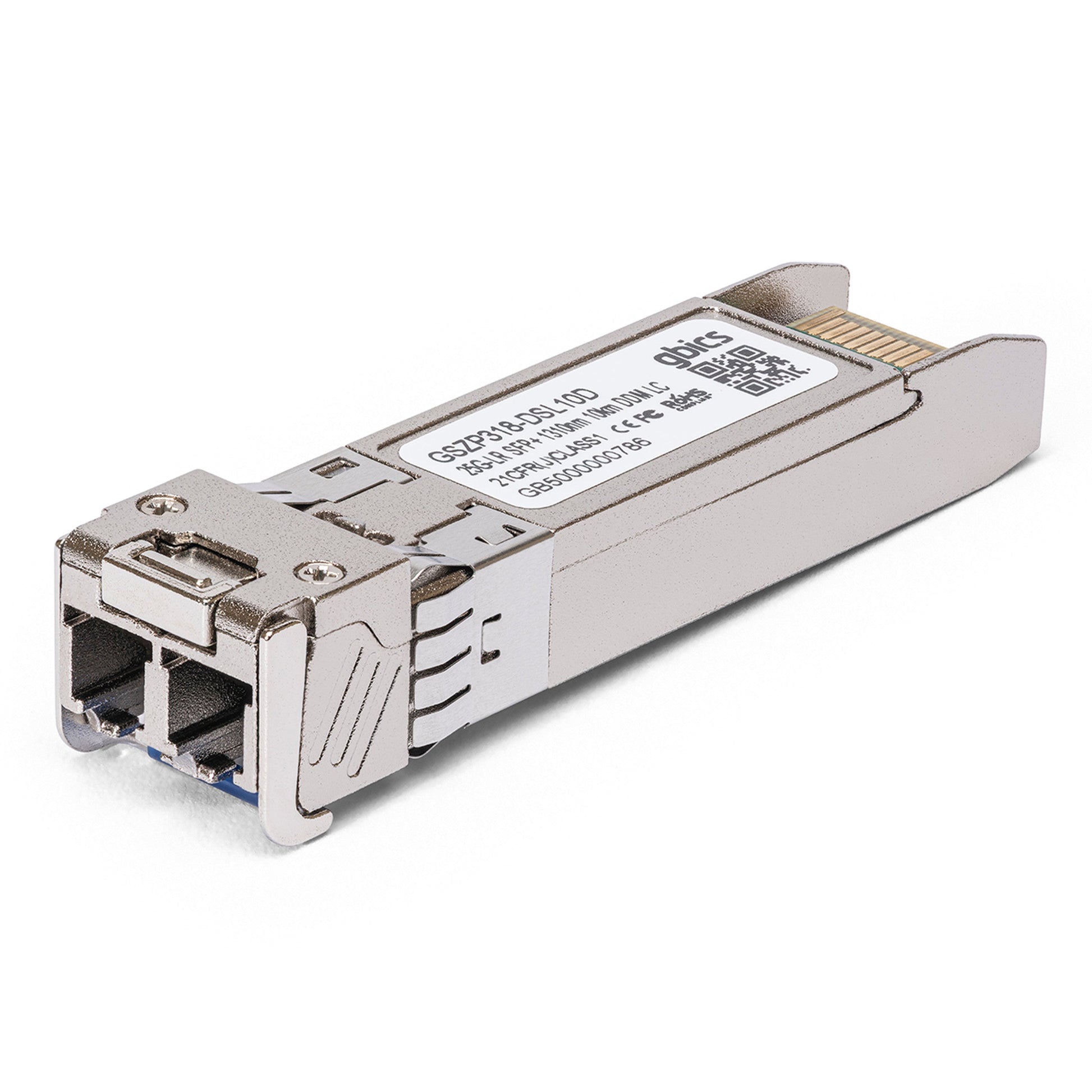

Codable 25GBASE-LR-S SFP28 Optical Transceiver Module

QuickSpecs

Technical Specifications

  • 25GBASE-LR Small Form-factor Pluggable (SFP28).
  • Standards based 25-Gigabit Ethernet (25GBASE-LR).
  • 25 Gbit/sec line speed.
  • Operating distance up to 10km on OS1 fibre.
  • Transmitter wavelength 1310nm.
  • Industry-standard LC duplex connector.
  • Singlemode Fibre (SMF).
  • Digital Optical Monitoring (DOM).
  • Extended temperature range (EXT): -20°C to 85°C (-4 to 185°F)

Compatibility

The GBICS 25GBASE-LR-ITEMP transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Each individual transceiver is coded in-house. If you cannot see the vendor you require, please contact the sales team sales@gbics.com

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
