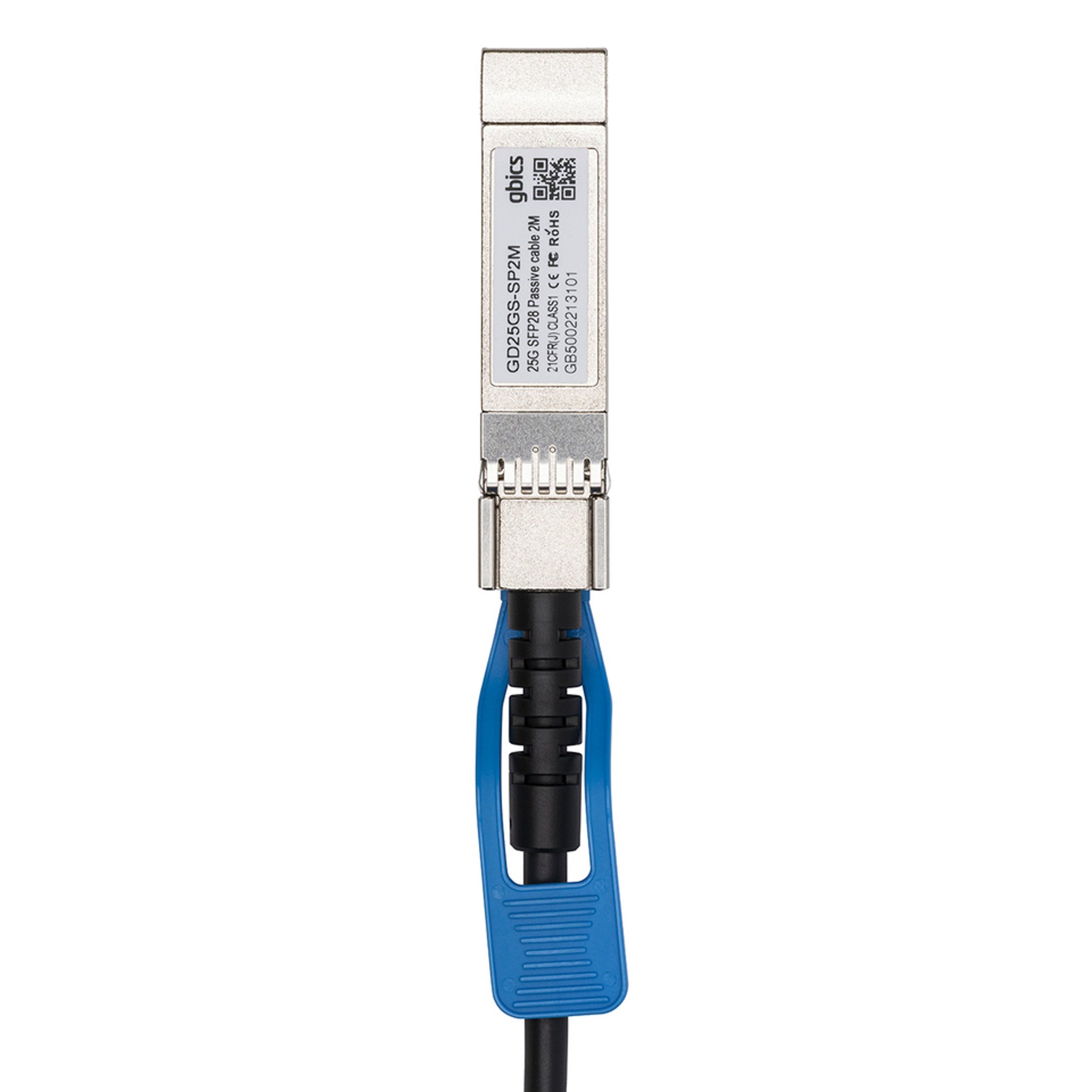

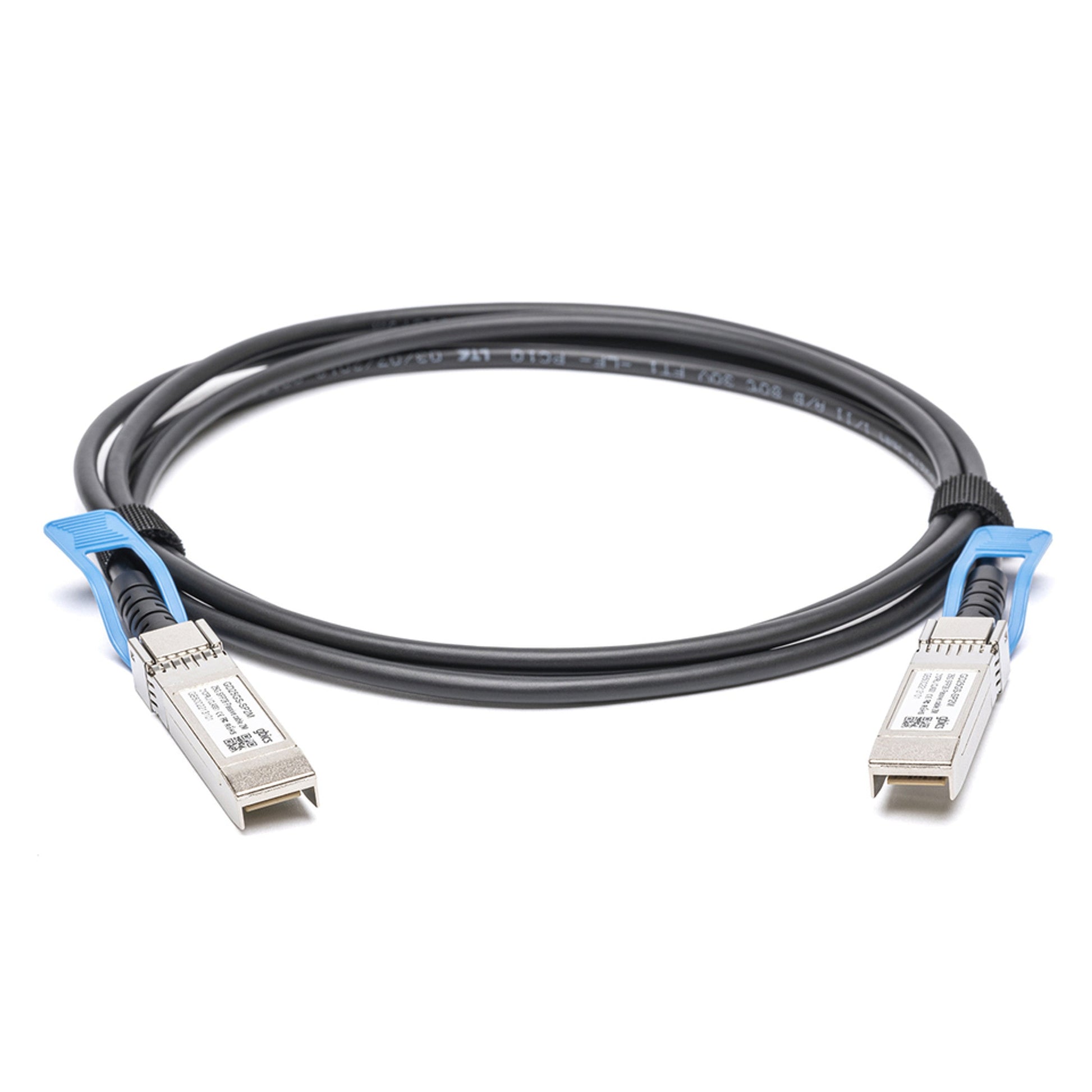

25G SFP28 to 25G SFP28 Direct Attach Cable (DAC)

25G SFP28 to 25G SFP28 Direct Attach Cable (DAC)

QuickSpecs

Technical Specifications

Small Form-factor Pluggable 25G (SFP28) copper cable.
Passive cable assembly.
25 Gbit/sec line speed.
Operating distance of 1 to 5 metres.
Wire AWG 24.
Supply Voltage 3.3V.
Power consumption (per end): max 0.57W.

Compatibility

GBICS Direct Attach Cables can be coded for compatibility with over 100 vendors and 1000's of platforms.

Each end of the cable is coded in-house. If you cannot see the vendor(s) you require, please contact the sales team sales@gbics.com

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
