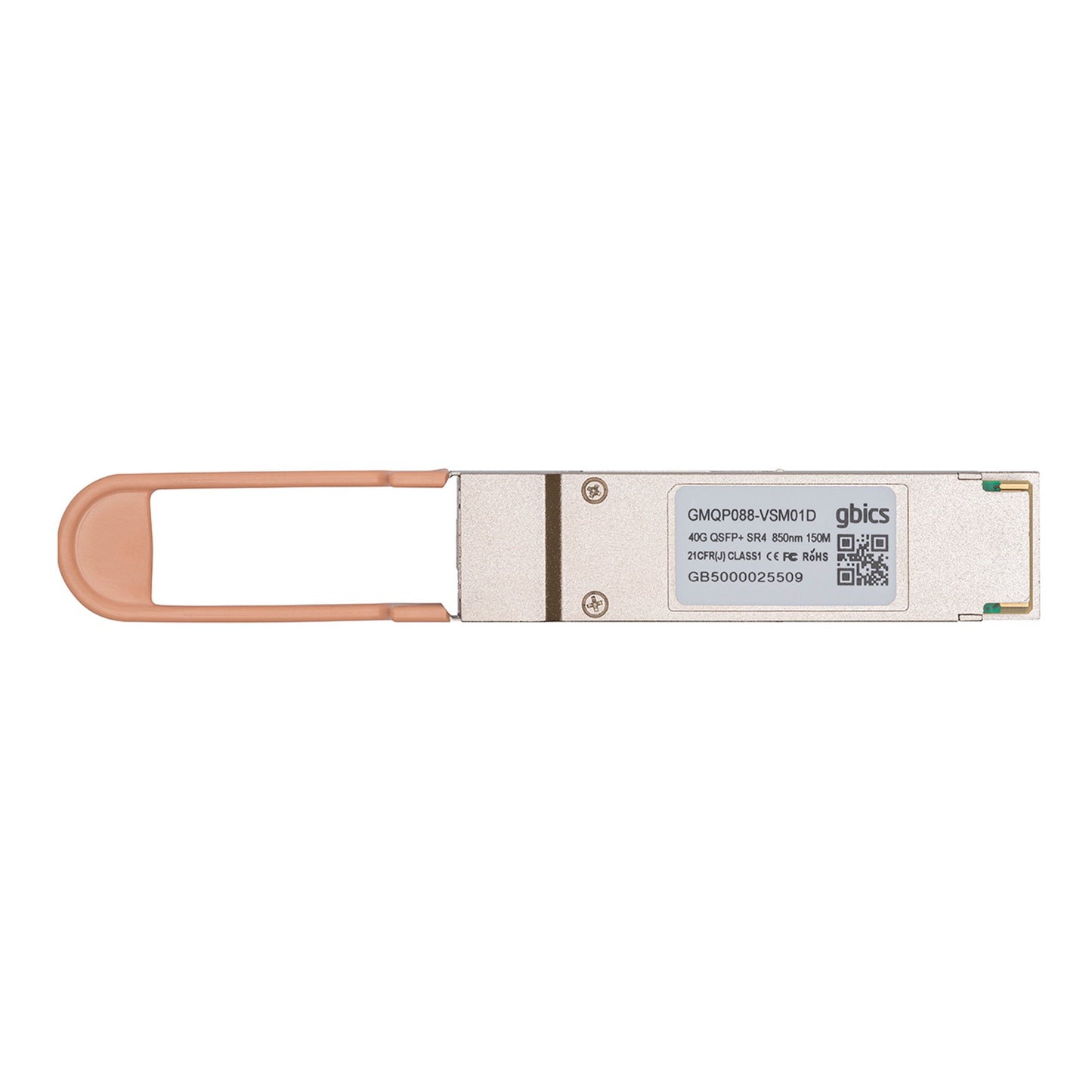

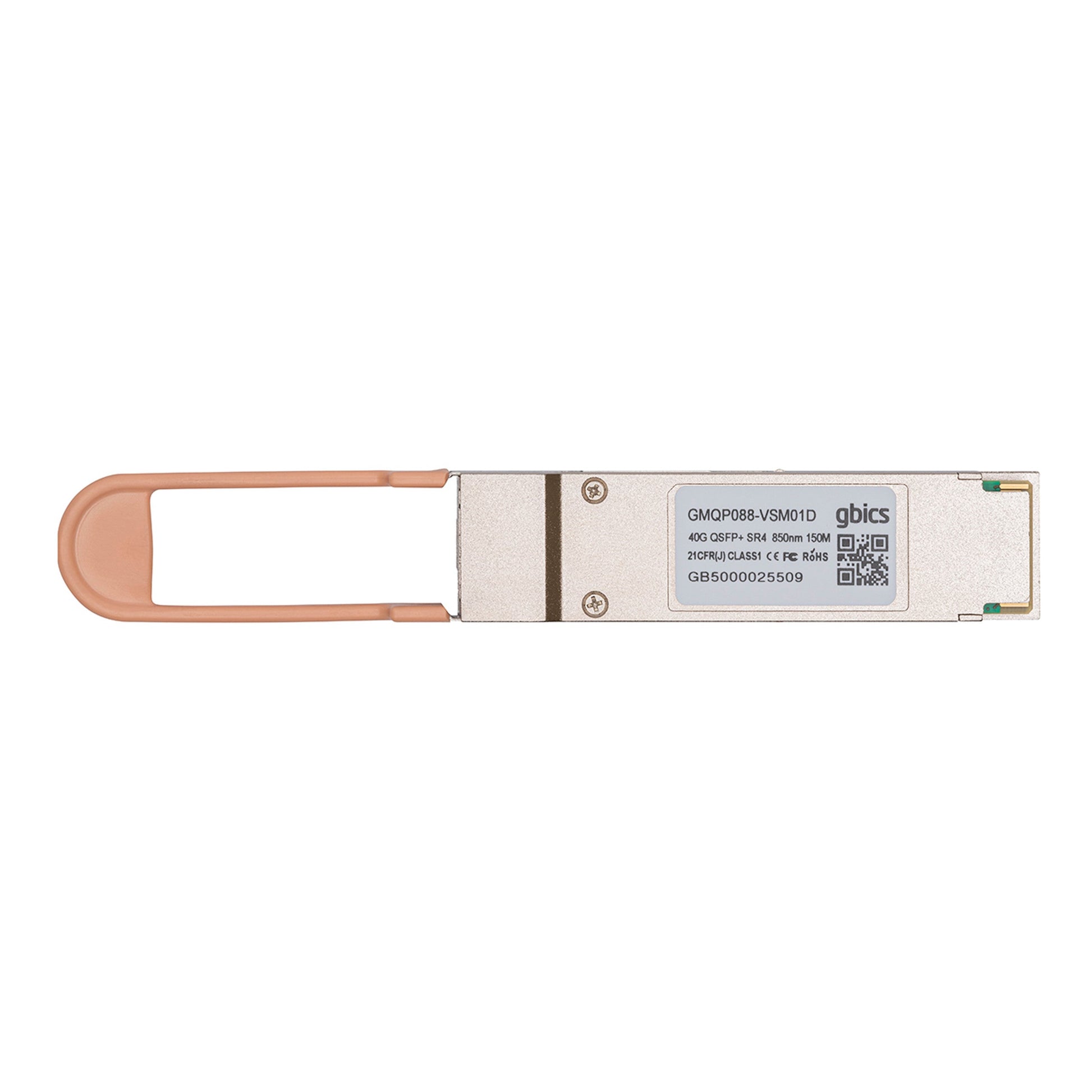

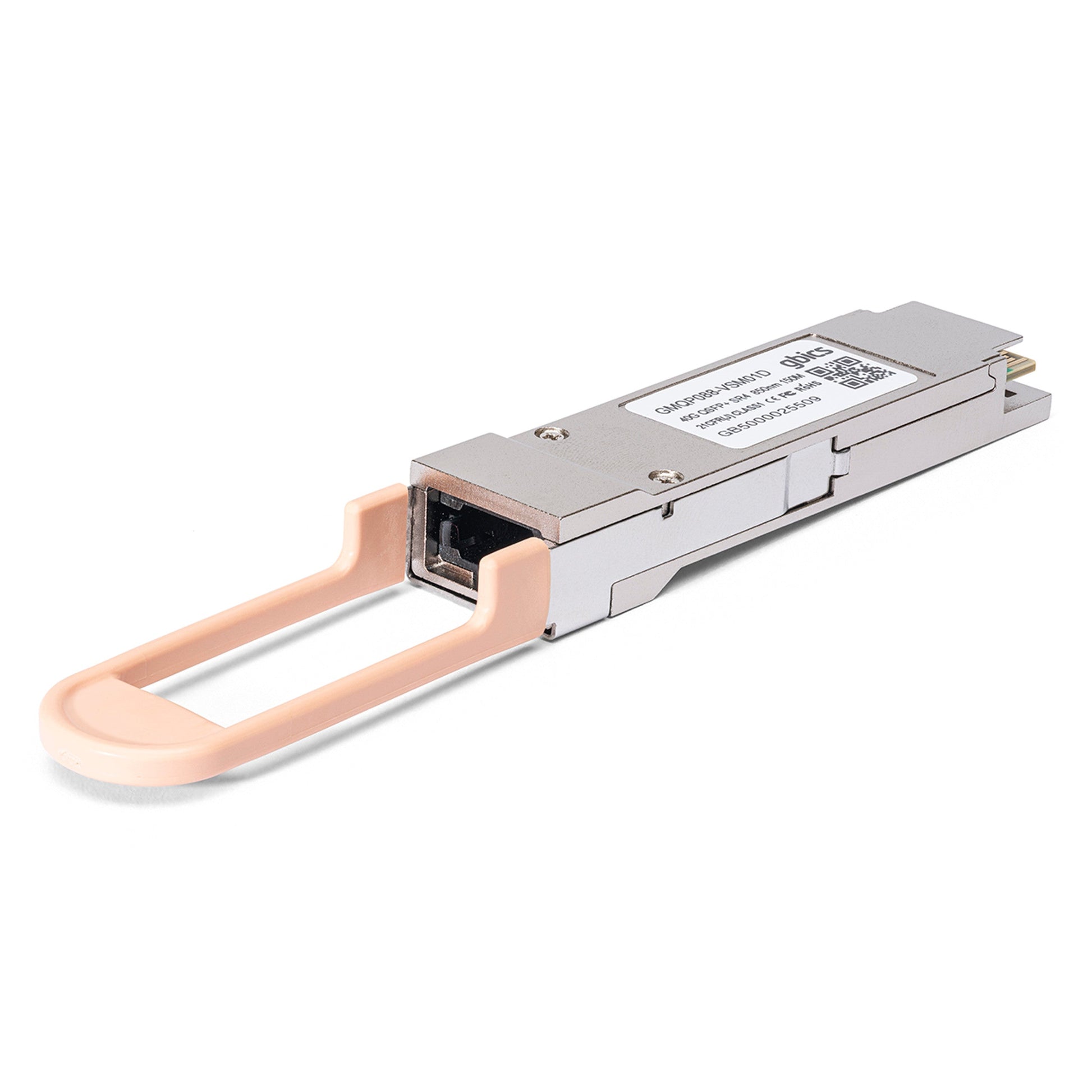

10319 - Extreme Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Transceiver Module

10319 - Extreme Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Transceiver Module

£345.00 GBP
£345.00 GBP
Sale Sold out


Extreme Compatible QSFP+ Transceiver Module

QuickSpecs

Technical Specifications

  • 40GBASE-SR Quad Small Form-factor Pluggable Plus (QSFP+).
  • Standards based 40-Gigabit Ethernet (40GBASE-SR4).
  • 40 Gbit/sec line speed.
  • Operating distance up to 150m on OM4 fibre.
  • Transmitter wavelength 850nm.

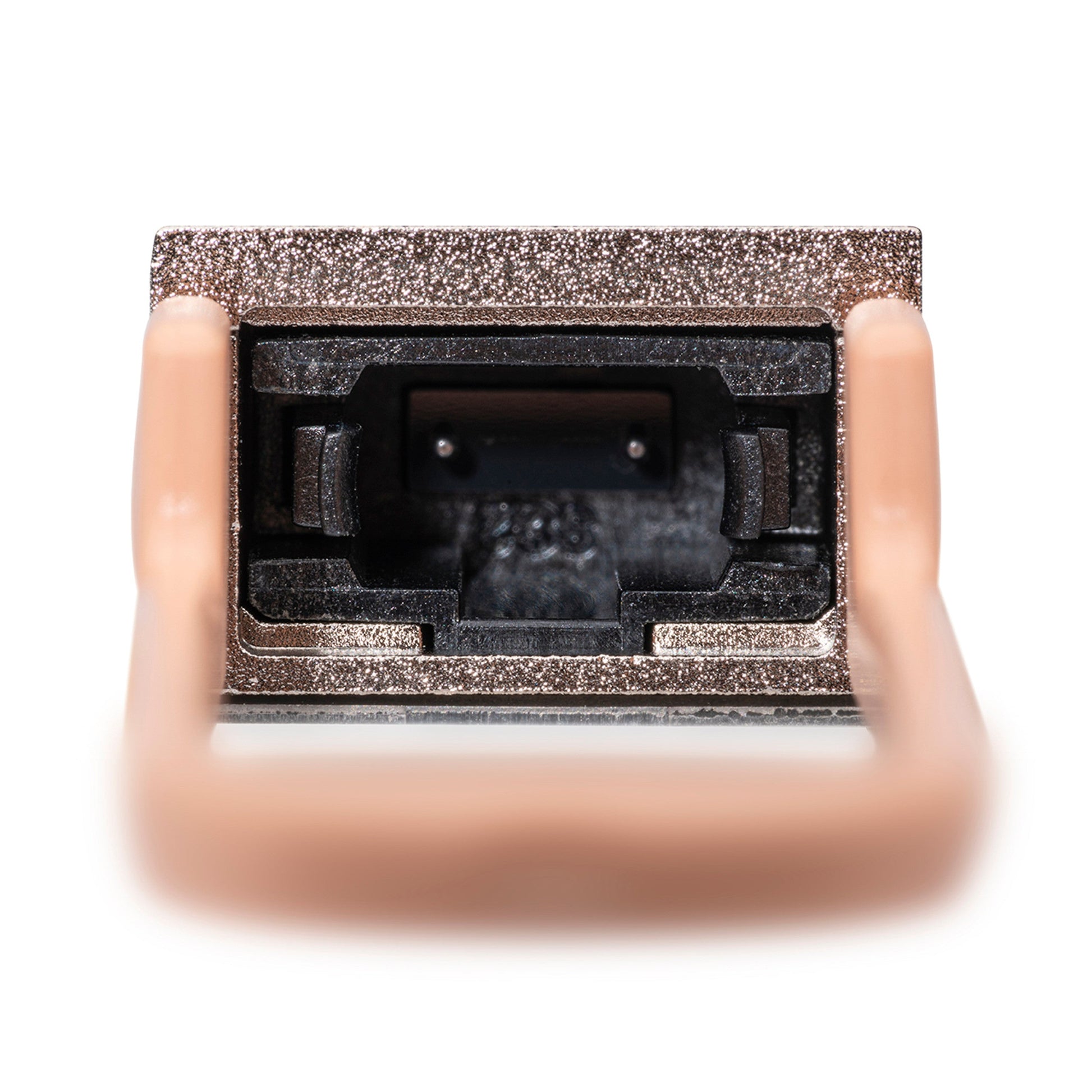

  • Industry-standard MPO connector.
  • Multimode Fibre (MMF).
  • Digital Optical Monitoring (DOM).
The GBICS.com 40GBASE-SR4 QSFP+ Module supports link lengths of 100m and 150m respectively on laser-optimized OM3 and OM4 multimode fibre cables. It primarily enables high-bandwidth 40G optical links over 12-fiber ribbon r cables terminated with MPO/MTP multi-fibre connectors.
It can also be used in 4x10G mode along with ribbon to duplex fibre breakout cables for connectivity to four 10GBASE-SR optical interfaces.
Maximum channel insertion loss allowed is respectively 1.9dB over 100m of OM3 cable or 1.5dB over 150m of OM4 cable.

Product Support

GBICS is an Extreme Networks partner and works closely with the vendor to ensure interoperability.

This product is 100% compatible with all Extreme products that list 10319 as a supported transceiver.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
