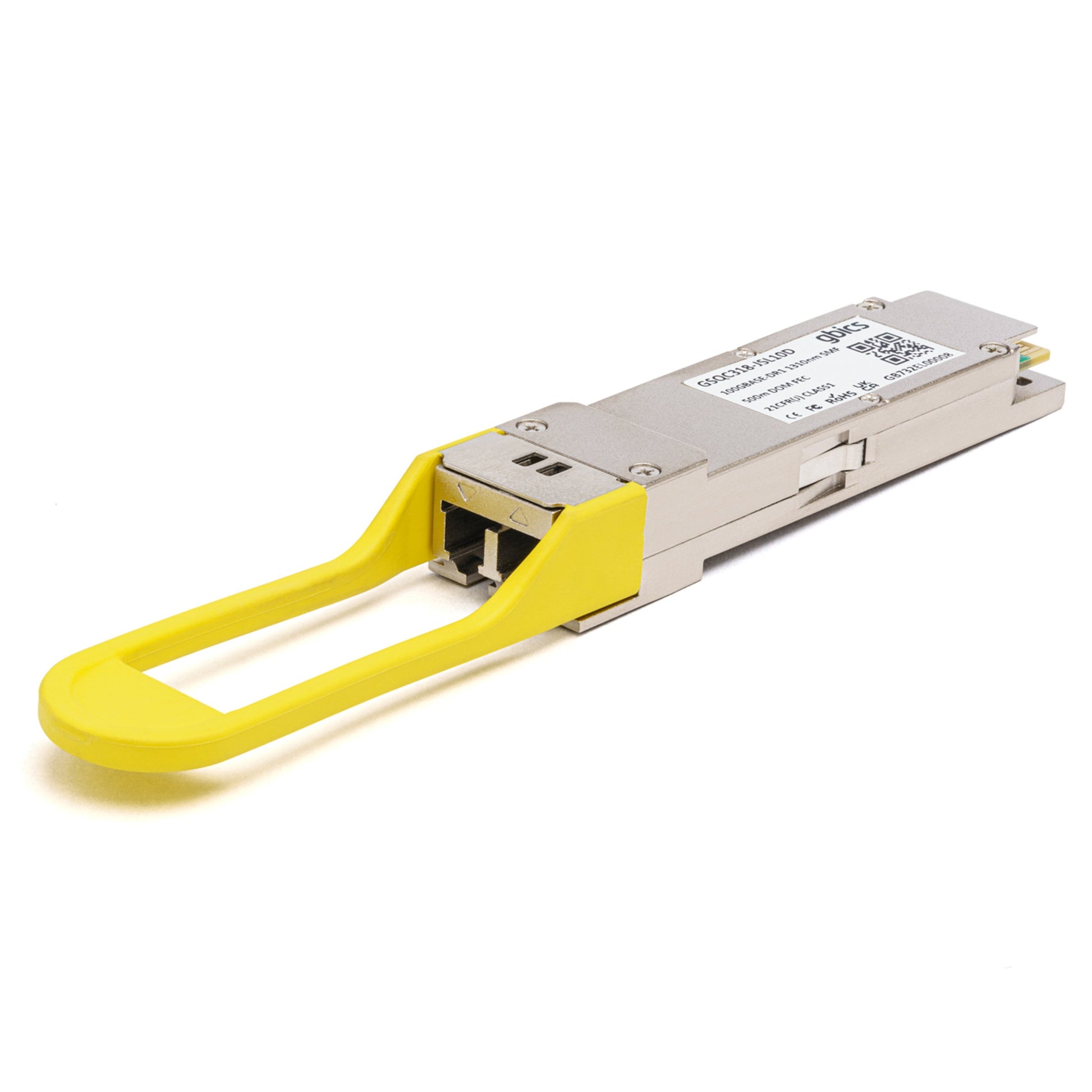

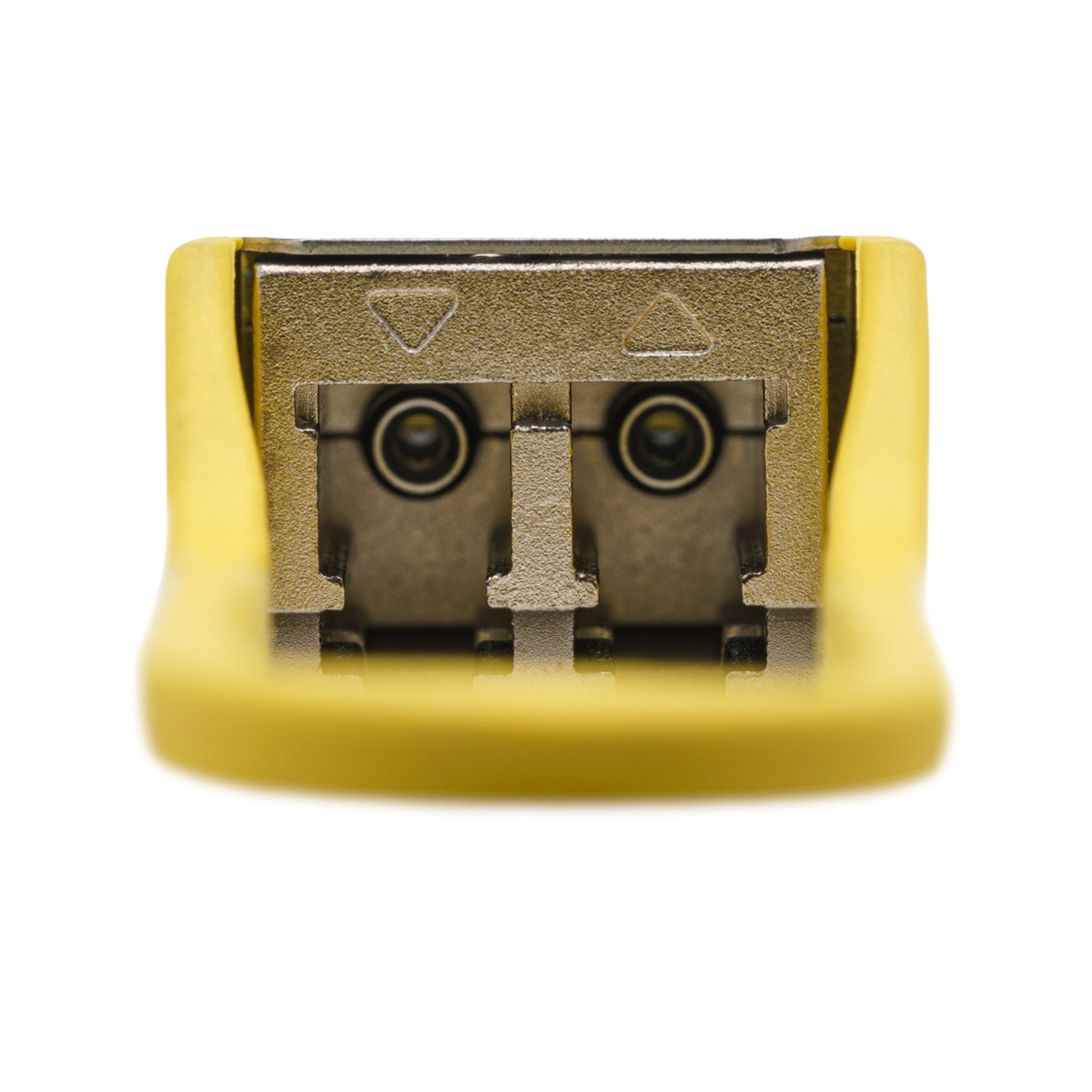

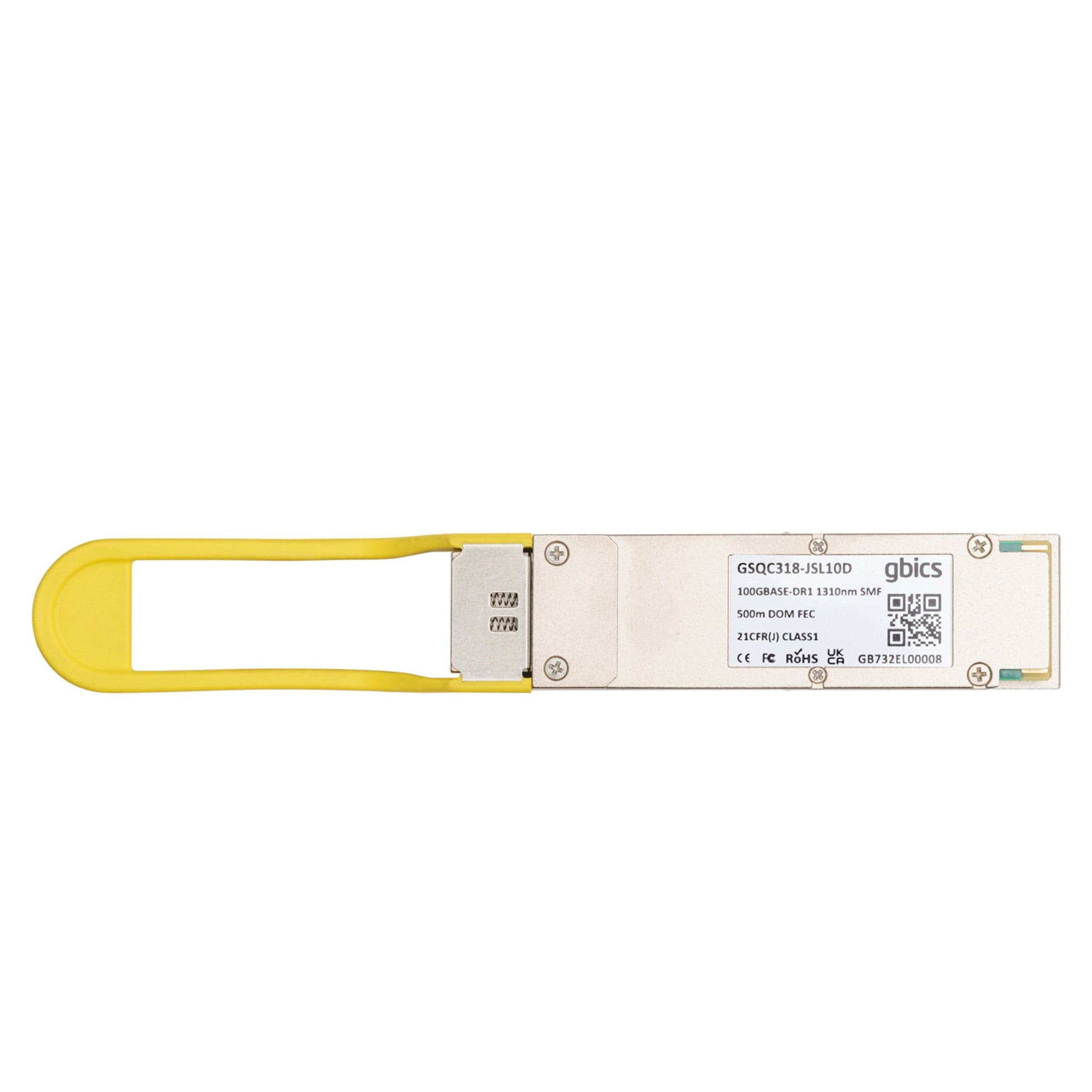

100GBASE-DR-S Codable QSFP28 Single Lambda 1310nm 500m DOM Duplex LC SMF Optical Transceiver Module

Codable 100GBASE-LR4 QSFP28 Optical Transceiver Module

QuickSpecs

Technical Specifications

• 100GBASE-DR Lambda MSA Quad Small Form-factor Pluggable Plus (QSFP28).
• Standards based 100-Gigabit Ethernet (100GBASE-Ethernet).
• 100 Gbit/sec line speed.
• Operating distance up to 500m on G.652 single-mode fibre.
• Transmitter wavelength 1310nm.
• Industry-standard LC connector.
• Singlemode Fibre (SMF).
• Modulation Format PAM4
• Digital Optical Monitoring (DOM).

Product Support

This product is 100% compatible with the vendors available for selection on this page.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
