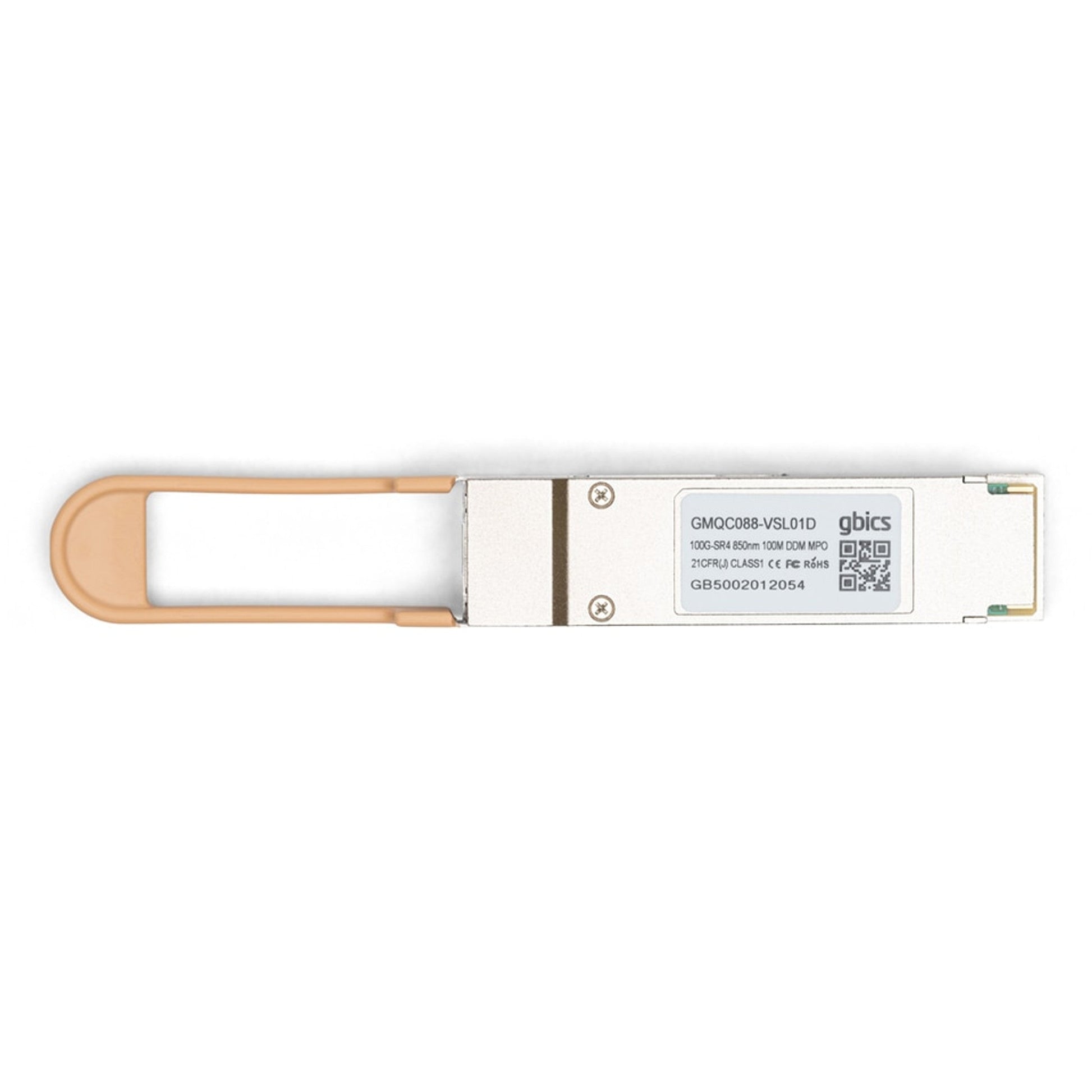

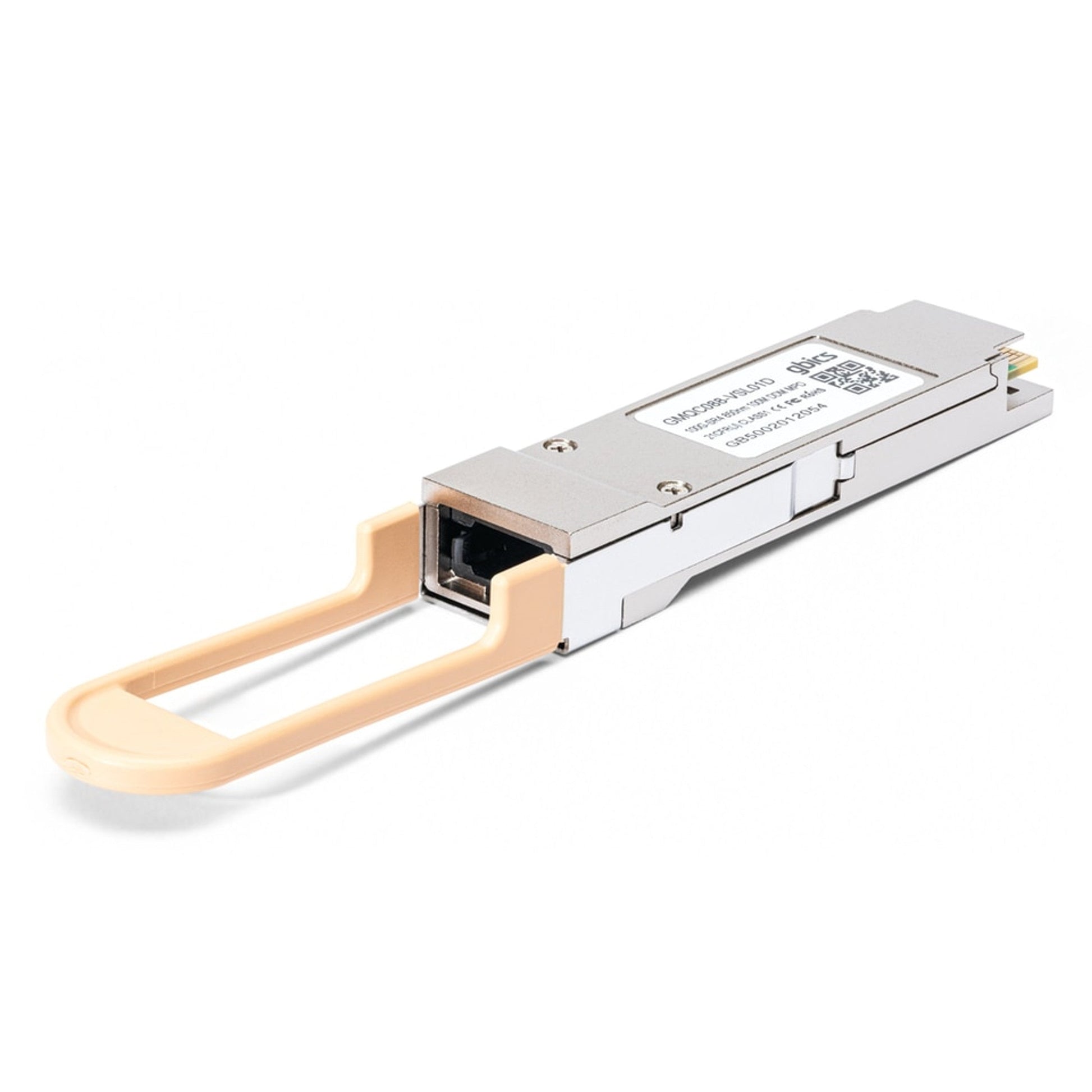

100G-SR4-ITEMP

Industrial Temperature QSFP28 Transceiver Module

QuickSpecs

Technical Specifications

• 100GBASE-SR4 Quad Small Form-factor Pluggable Plus (QSFP28).
• Standards based 100-Gigabit Ethernet (100GBASE-Ethernet).
• 100 Gbit/sec line speed.
• Operating distance up to 100m on OM4 fibre.
• Transmitter wavelength 850nm.

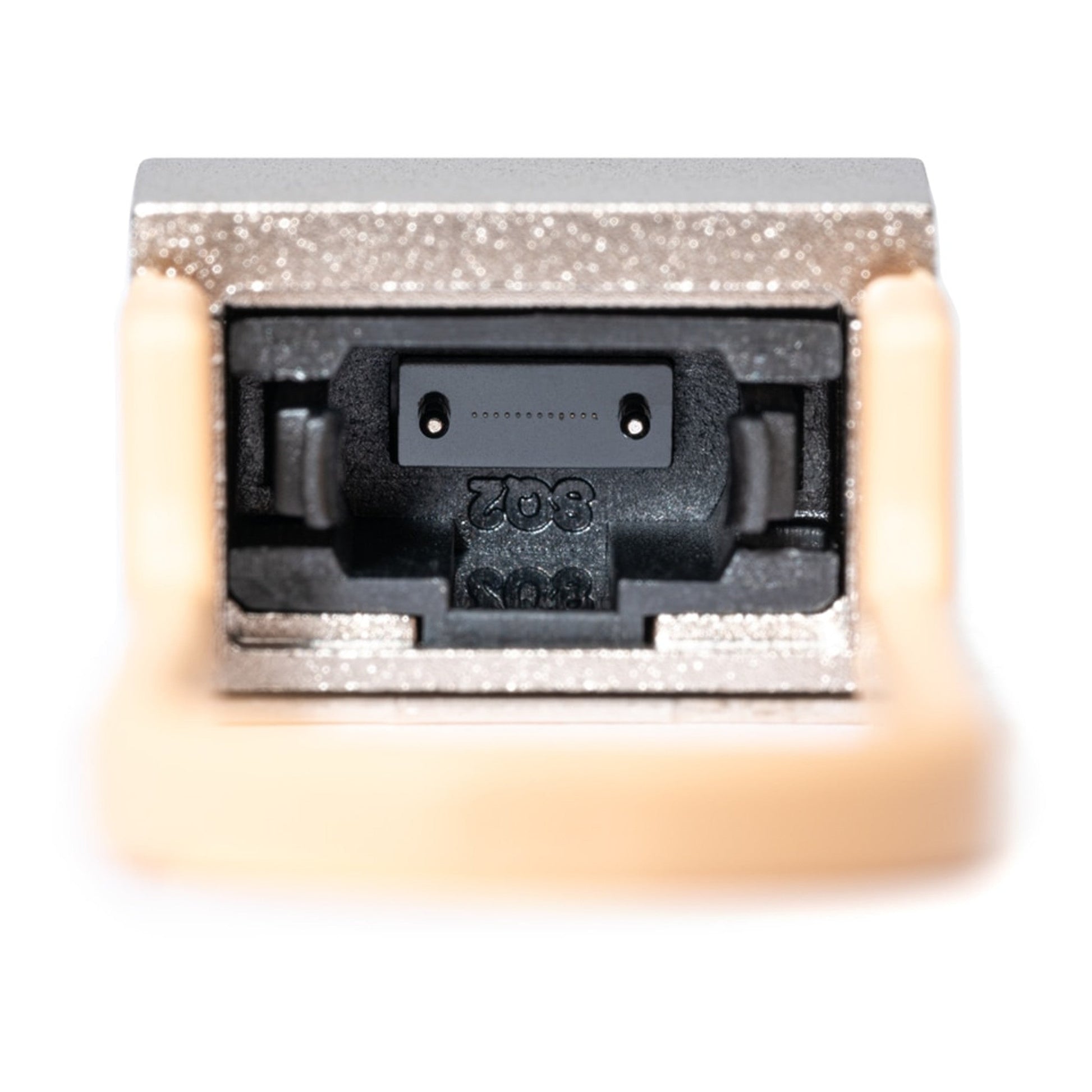

• Industry-standard MPO connector.
• Multimode Fibre (MMF).
• Digital Optical Monitoring (DOM).
• Connector Type MPO-12 (12 fibres).
• Extended temperature range (EXT): -40°C to 85°C (-40 to 185°F)

Product Support

The GBICS 100GBASE-SR4 i-Temp transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
