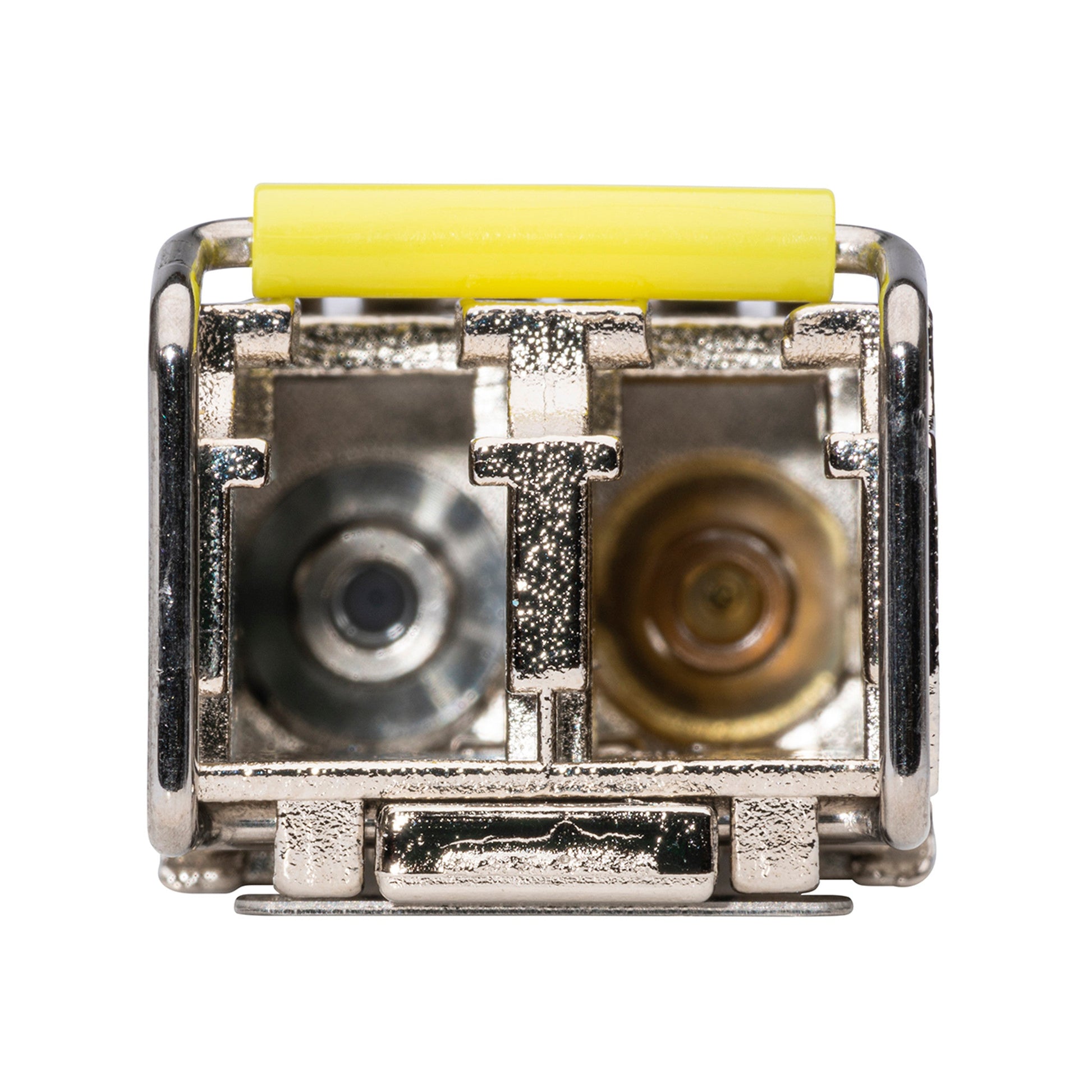

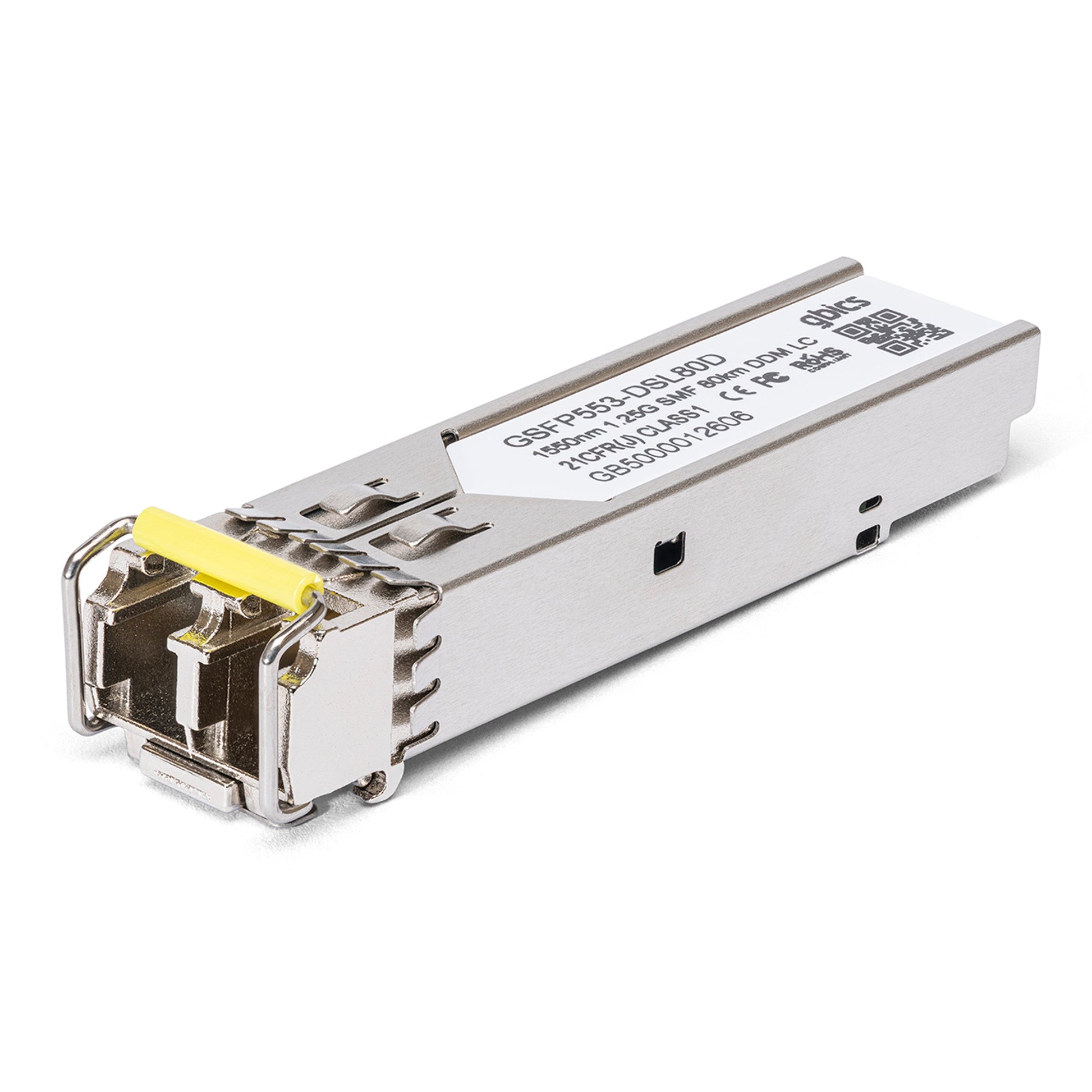

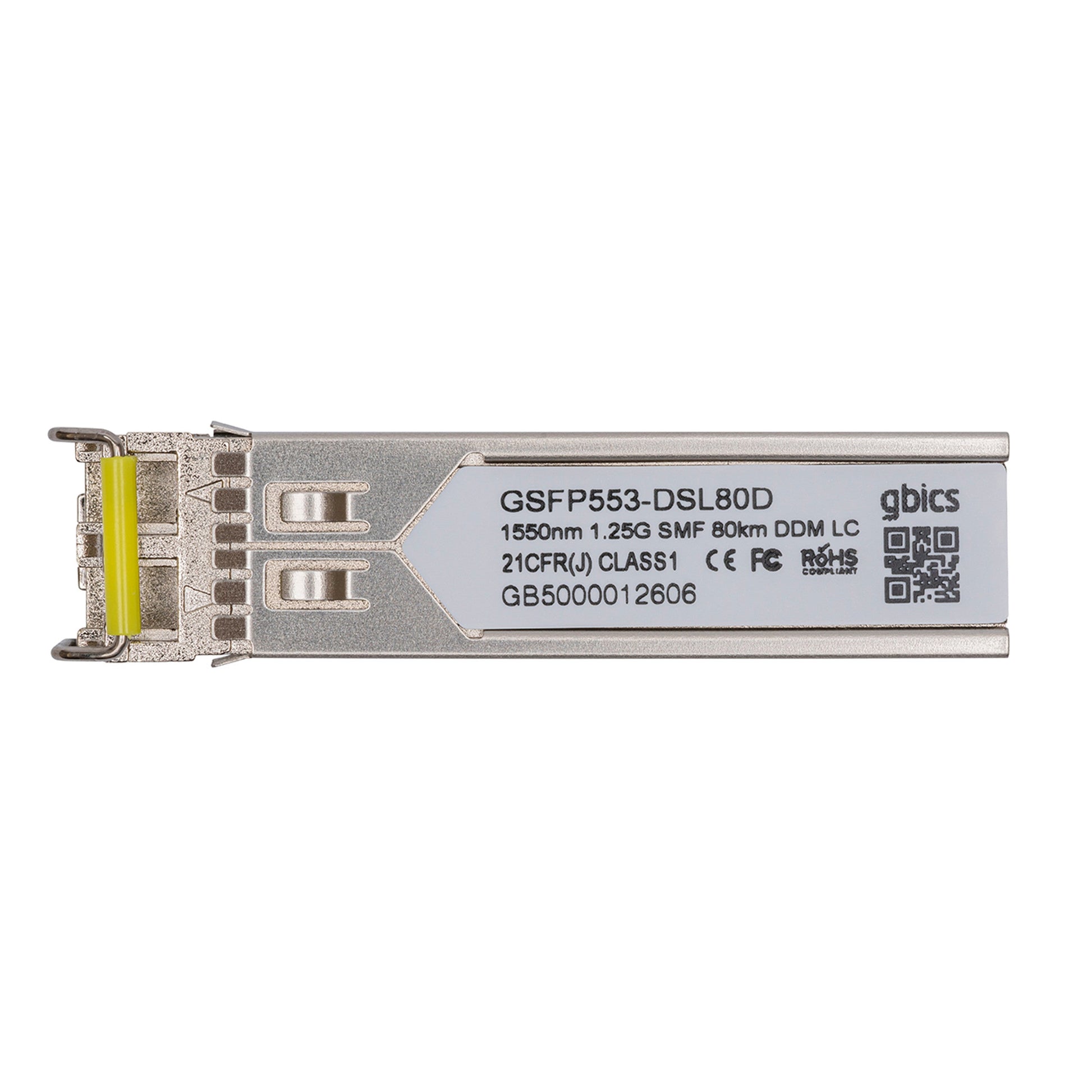

1000BASE-ZX-ITEMP

Industrial Temperature SFP Transceiver Module

QuickSpecs

Technical Specifications

• 1000BASE-ZX Small Form-factor Pluggable (SFP).
• Standards based Gigabit Ethernet.
• 1.25 Gbit/sec line speed.
• Operating distance up to 80km depending on link loss (OS1).
• Transmitter wavelength 1550nm.
• Industry-standard LC duplex connector.
• Singlemode Fibre (SMF).
• Extended temperature range (EXT): -40 to 85°C (-40 to 185°F)

Compatibility

The GBICS 10GBASE-ZX I-Temp transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Each individual transceiver is coded in-house. Please contact the sales team via email sales@gbics.com or call +44 (0) 1285 886444 to discuss your requirements.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
