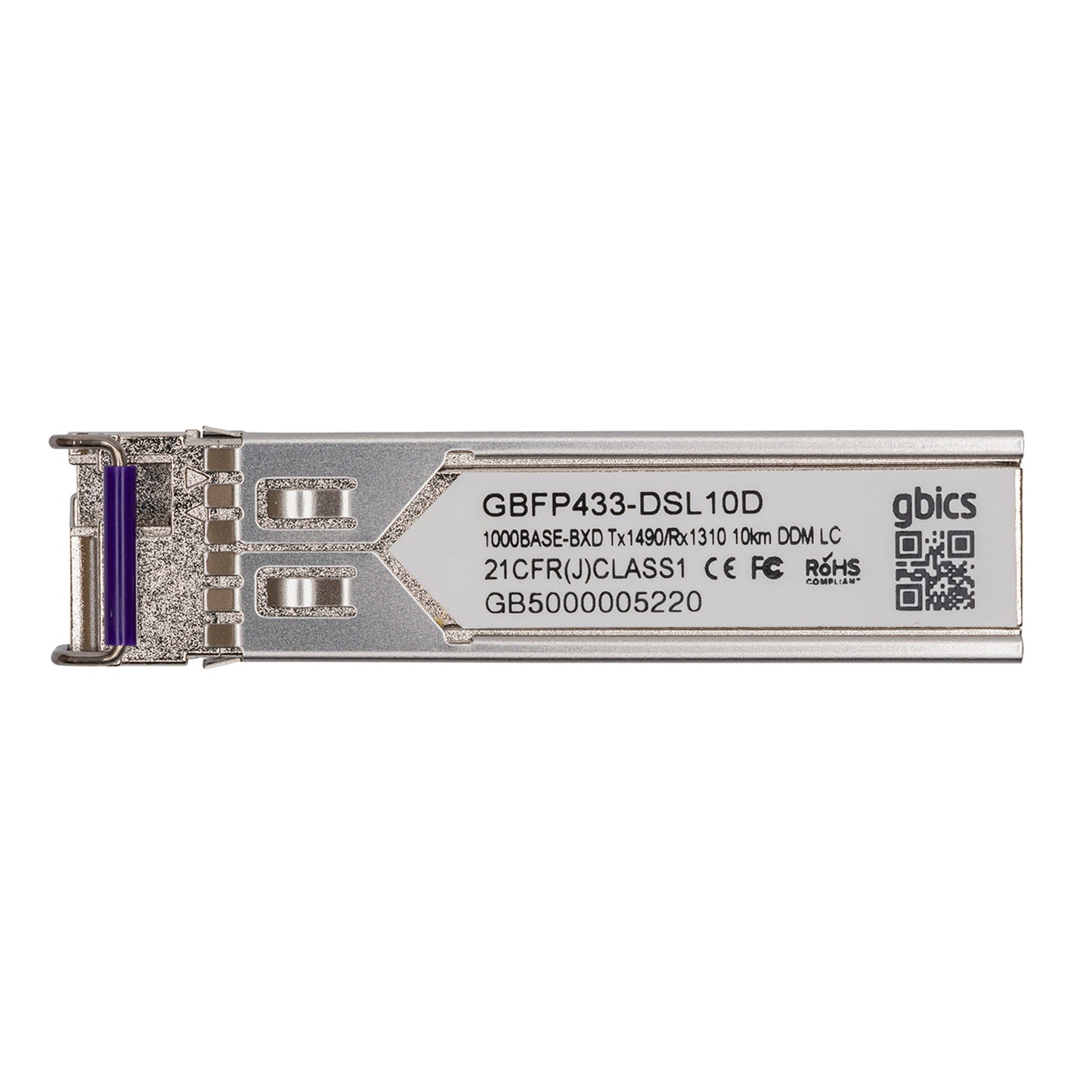

1000BASE-BX-D - Codable 1000BASE-BX-D BiDi SFP 1490nm-1310nm 10km DOM Transceiver Module

1000BASE-BX-D SFP Transceiver Module

QuickSpecs

Technical Specifications

• 1000BASE-BX10-D Small Form-factor Pluggable (SFP).
• Standards based Gigabit Ethernet.
• 1.25 Gbit/sec line speed.
• Operating distance up to 10km on a single strand of OS1 fibre.
• Transmitter wavelength 1490nm/RX 1310nm.
• Industry-standard LC connector.
• Singlemode Fibre (SMF).

Product Support

The GBICS 1000BASE-BX-D transceiver can be coded for compatibility with over 100 vendors and 1000's of platforms.

Each individual transceiver is coded and tested in-house to your specification.

Please select the required vendor from the drop down box or contact the sales team via email sales@gbics.com or call +44 (0) 1285 886444 to discuss your requirements.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
