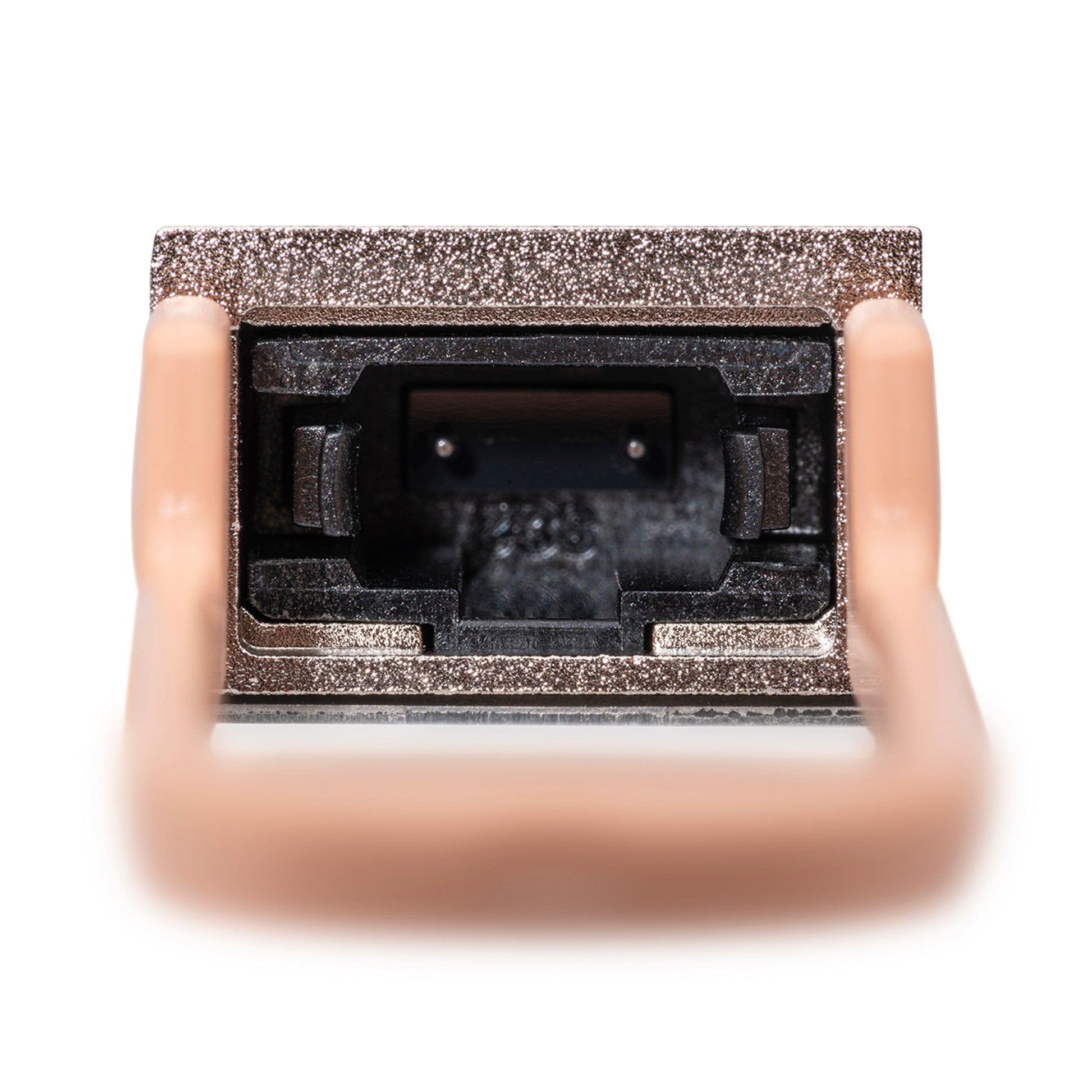

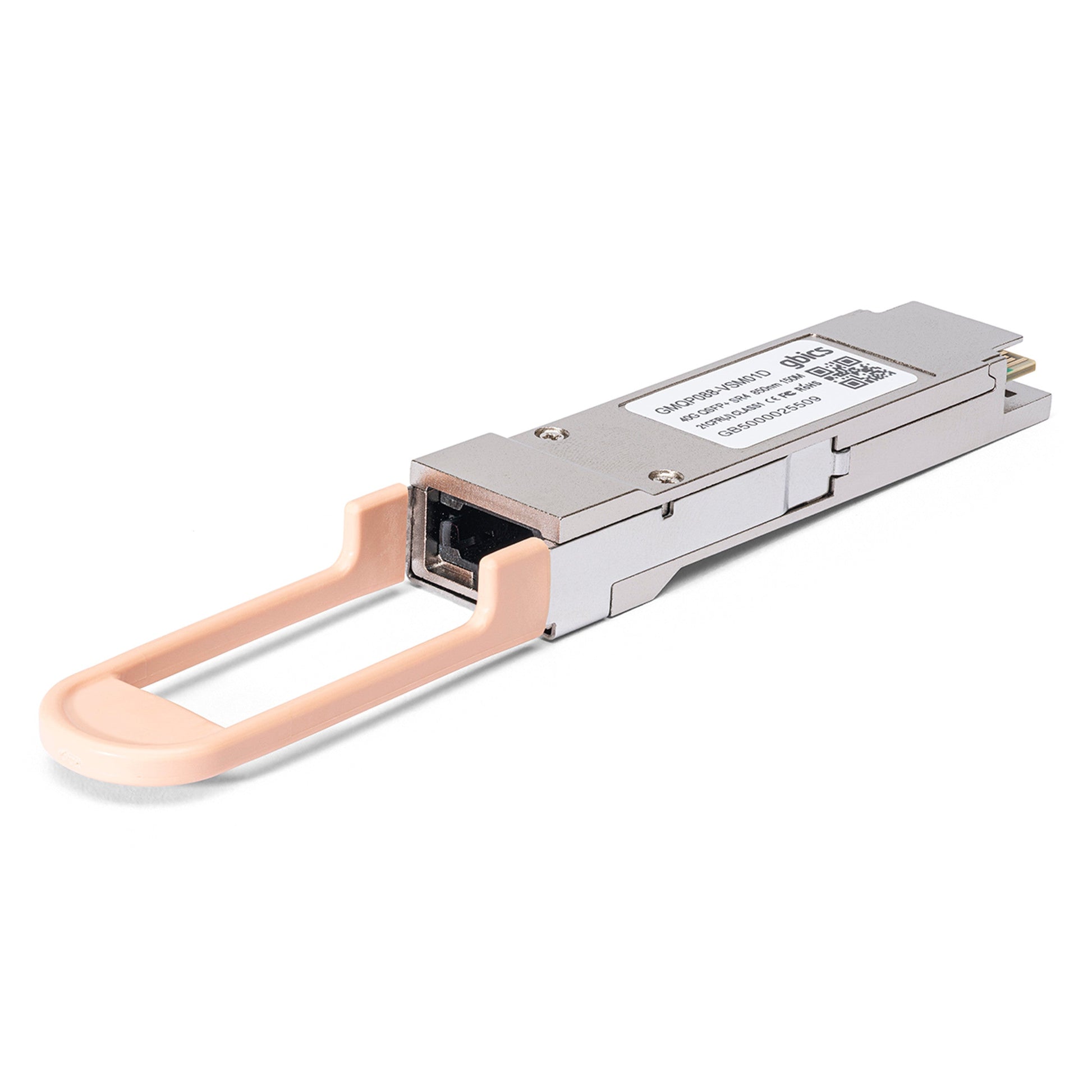

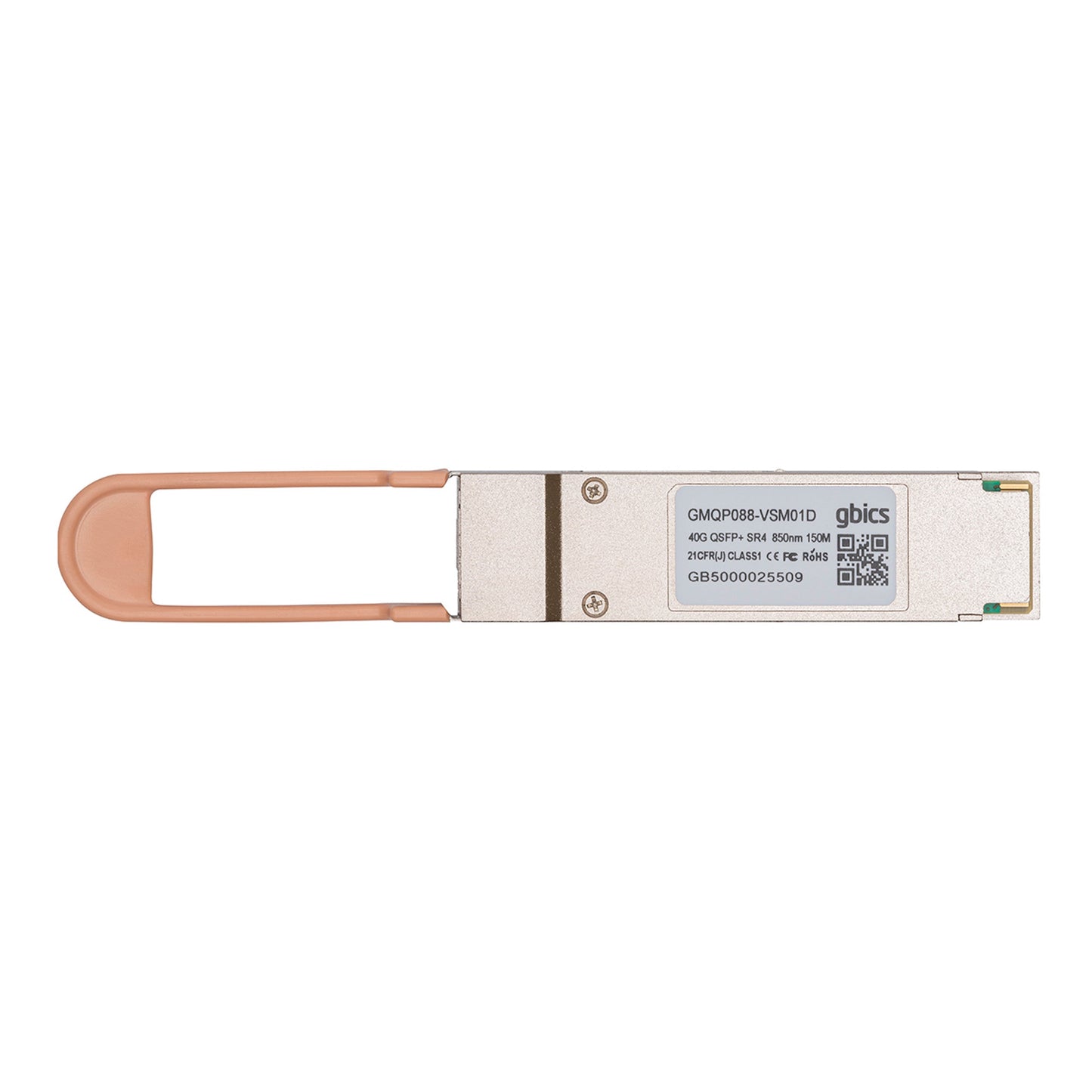

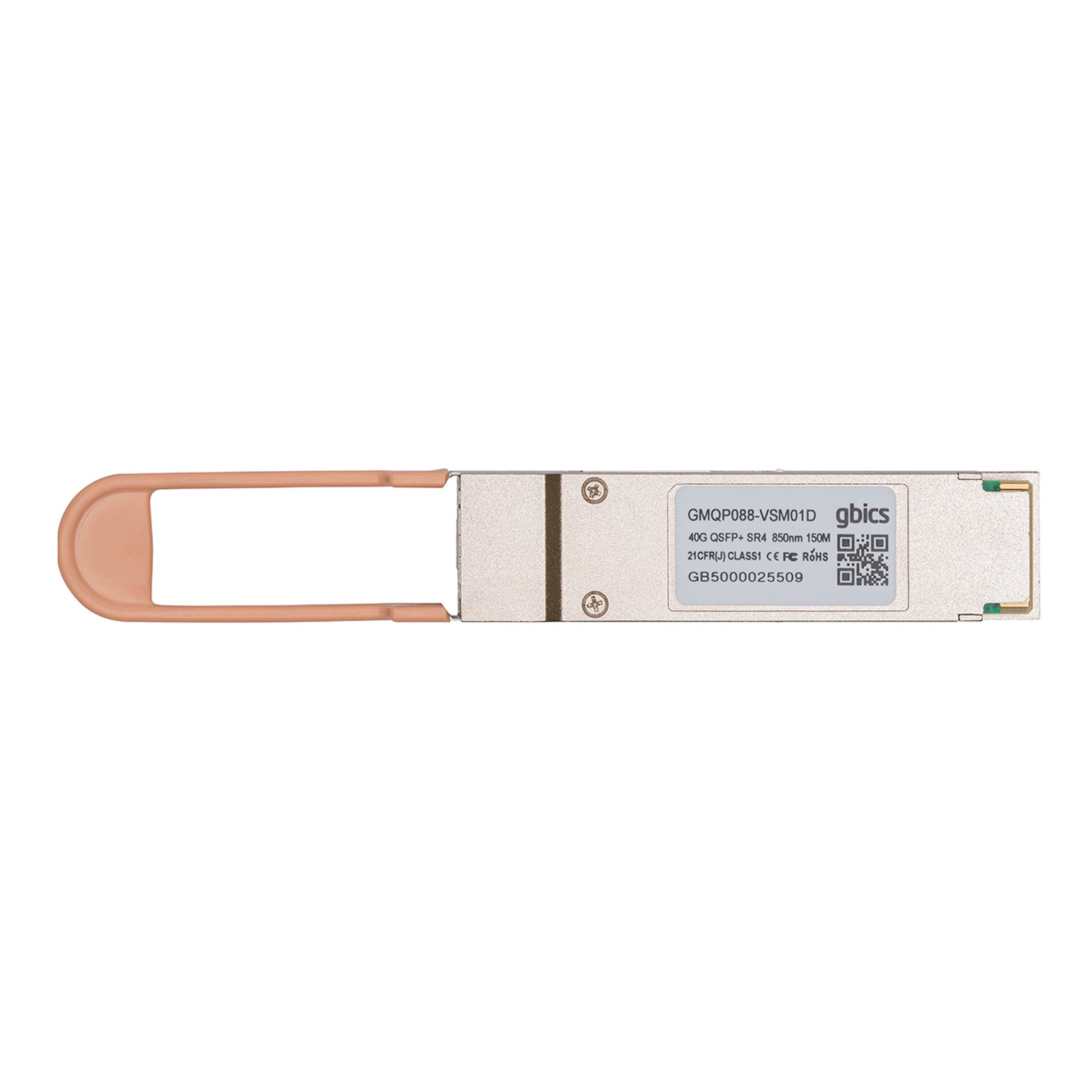

02310MHR - Huawei Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Transceiver Module

02310MHR - Huawei Compatible 40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO DOM Transceiver Module

£400.00 GBP
£400.00 GBP
Sale Sold out

Huawei Compatible QSFP+ Transceiver Module

QuickSpecs

Technical Specifications

  • 40GBASE-SR Quad Small Form-factor Pluggable Plus (QSFP+).
  • Standards based 40-Gigabit Ethernet (40GBASE-SR4).
  • 40 Gbit/sec line speed.
  • Operating distance up to 150m on OM4 fibre.
  • Transmitter wavelength 850nm.
  • Industry-standard MPO connector.
  • Multimode Fibre (MMF).
  • Digital Optical Monitoring (DOM).
The GBICS.com 40GBASE-SR4 QSFP+ Module supports link lengths of 100m and 150m respectively on OM3 and OM4 multimode fibre cables.
It primarily enables high-bandwidth 40G optical links over 12-fibre ribbon r cables terminated with MPO/MTP multi-fibre connectors.
It can also be used in 4x10G mode along with ribbon to duplex fibre breakout cables for connectivity to four 10GBASE-SR optical interfaces.
Maximum channel insertion loss allowed is respectively 1.9dB over 100m of OM3 cable or 1.5dB over 150m of OM4 cable.

Product Support

This product is 100% compatible with all Huawei products that list 02310MHR as a supported transceiver.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

We stand behind the quality of our products and proudly offer an Advanced Replacement Lifetime Warranty.

For further information, please contact a member of our team who will happily assist.

Safety Standards

EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
